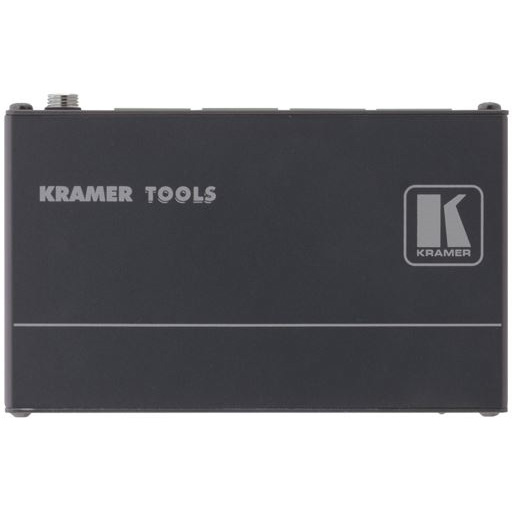

VM-3AN 1:3 Balanced Stereo Audio Distribution Amplifier
Please sign in so that we can notify you about a reply

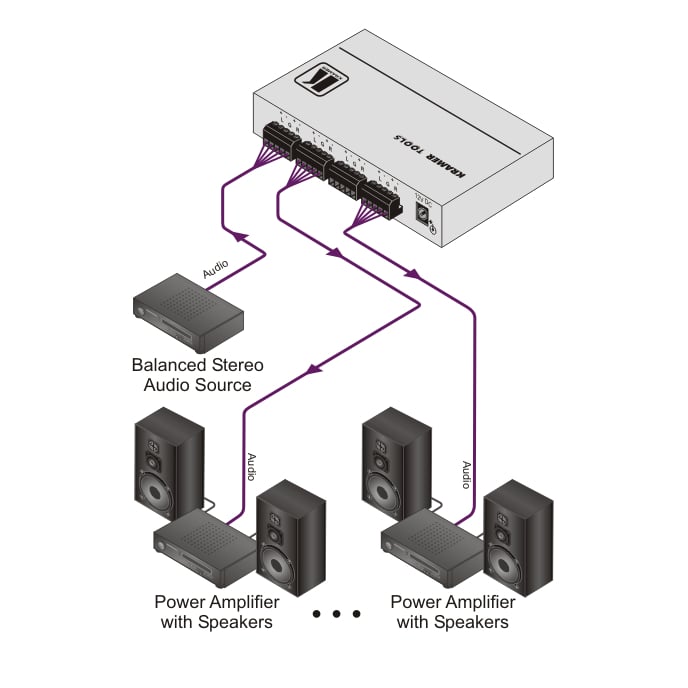

The VM-3AN is a high-performance distribution amplifier for balanced stereo audio signals. The unit takes one stereo input and distributes the signal to three identical outputs.
Features
- S/N Ratio — 90dB.
- L & R Level (Gain) Controls.
Brand:
Kramer
Part number:
11-70797090
Product Type:
Balanced Stereo Audio Distribution Amplifier
Specifications
Special Features:
L & R Level (Gain) Control
Applications:
Audio Duplication Studios, Delivering High-Quality Audio and Video Duplicates, Broadcast and Production Studios for Signal Distribution, Presentation and Multimedia Distribution, Field Distribution
Includes:
Power Supply
Performance
Bandwidth:
>100kHz
Signal-to-Noise Ratio:
90dB
Total Harmonic Distortion:
0.008%
Inputs and Ports
Output Type:
3xBalanced Stereo Audio on 5-Pin Terminal Block
Connector Type:
5-Pin Terminal Block
Input Type:
1xBalanced Stereo Audio on a 5-Pin Terminal Block
Power
Input Voltage:
12V DC
Dimensions
Width:
12.cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.2kg
