VM-2HXL 1:2 HDMI Distribution Amplifier
Please sign in so that we can notify you about a reply

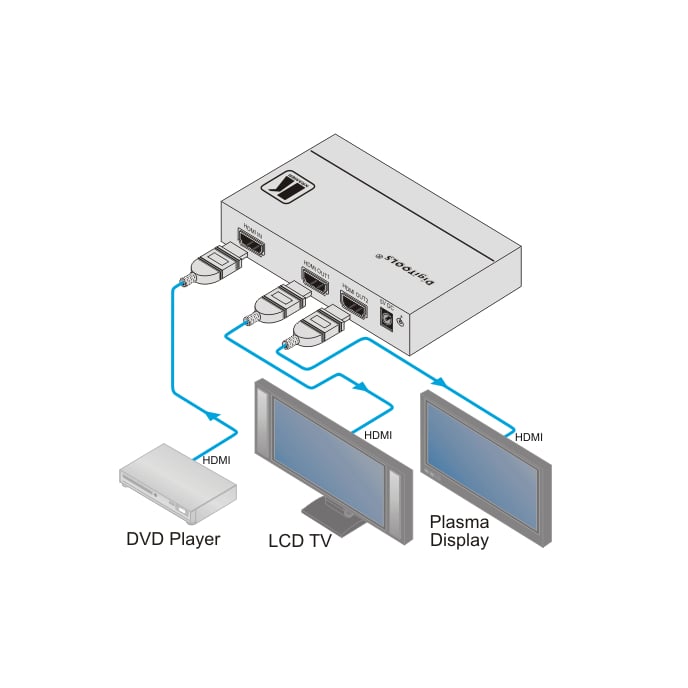

The VM−2Hxl is a distribution amplifier for HDMI signals. The unit reclocks and equalizes the signal and distributes it to two identical outputs.
Features
- Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant.
- HDMI Support — Deep Color, x.v.Color™, Lip Sync, CEC.
- 3D Pass–Through.
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal integrity to travel longer distances.
- Active Output LED.
- Compact DigiTOOLS® — 3 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
90-70745190
Specifications
Product Type:
HDMI Splitter
Maximum Operating Temperature:
+40°C
Special Features:
Max. Data Rate, HDTV Compatible, HDCP Compliant, HDMI Support, 3D Pass-Through, EDID Pass-through, Kramer Equalization & re-Klocking™ Technology, Active Output LED, Compact DigiTOOLS®
Applications:
Home Theatre, Presentation and Multimedia, Rental and Staging
Indicator Type:
LED
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply, Bracket Installation Kit
Inputs and Ports
Output Type:
2xHDMI
Input Type:
HDMI
Power
Input Voltage:
5V DC
Dimensions
Width:
12.cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.2kg
