VM-24HC 2x1:4 HDMI Switcher & Distribution Amplifier
Please sign in so that we can notify you about a reply

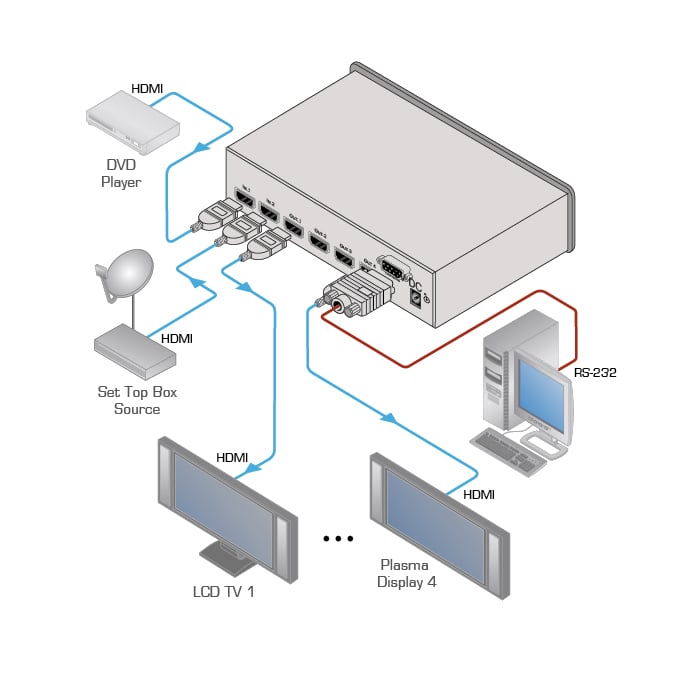

The VM−24HC is a high−performance switcher and distribution amplifier for HDMI signals. The unit accepts one of two HDMI inputs and distributes the selected signal to four HDMI outputs.
Features
- Max. Data Rate — 6.75Gbps (2.25Gbps per graphics channel).
- HDTV Compatible.
- HDCP Compliant.
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
- EDID Handling — Acquires the EDID from one output, from all connected outputs (auto–mix) or uses a default EDID.
- Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
- HDMI Support — With Deep Color, x.v.Color™, up to 7.1 Uncompressed Audio Channels.
- 3D Pass–Through.
- Flexible Control Options — Front panel, IR remote & RS–232.
- Desktop Size — Compact size. 2 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
10-71007090
Specifications
Product Type:
HDMI Switcher
Maximum Operating Temperature:
+40°C
Special Features:
Max. Data Rate, HDTV Compatible, HDCP Compliant, EDID Handling, Kramer Equalization & re-Klocking™ Technology, HDMI Support, 3D Pass-Through, Flexible Control Options, Desktop Size
Applications:
Home Theatre, Presentation and Multimedia, Rental and Staging
Indicator Type:
LED
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply, IR Remote Control Transmitter (Upon Request)
Performance
Bandwidth:
Up to 2.25Gbps
Inputs and Ports
Output Type:
4xHDMI
Input Type:
2xHDMI
Power
Input Voltage:
5V DC
Dimensions
Width:
21.46cm
Depth:
16.3cm
Height:
4.3cm
Weight:
0.9kg
