VM-24H(VM-24HDMI)/220V 2x1:4 HDMI Distribution Amplifier, 220V
Please sign in so that we can notify you about a reply

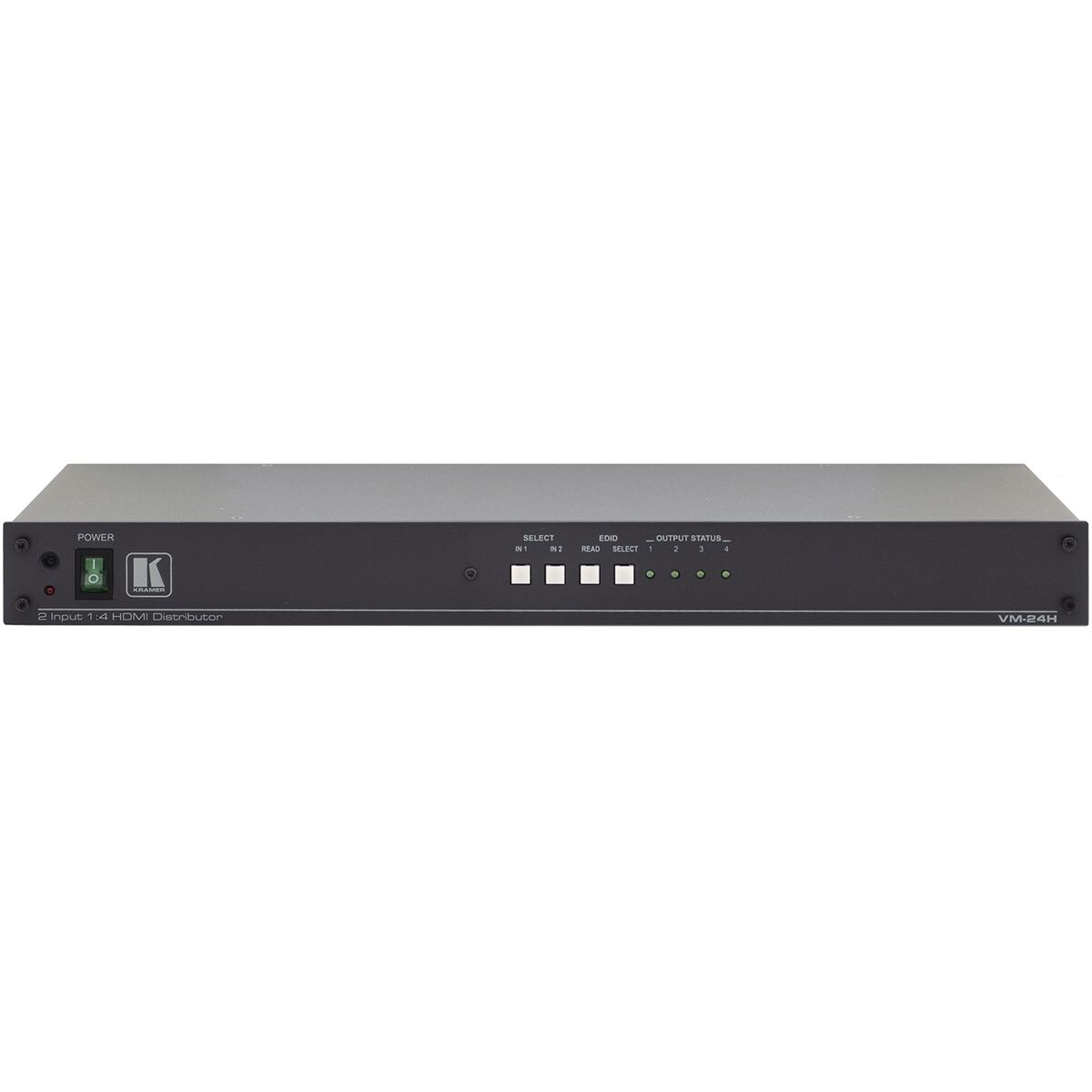

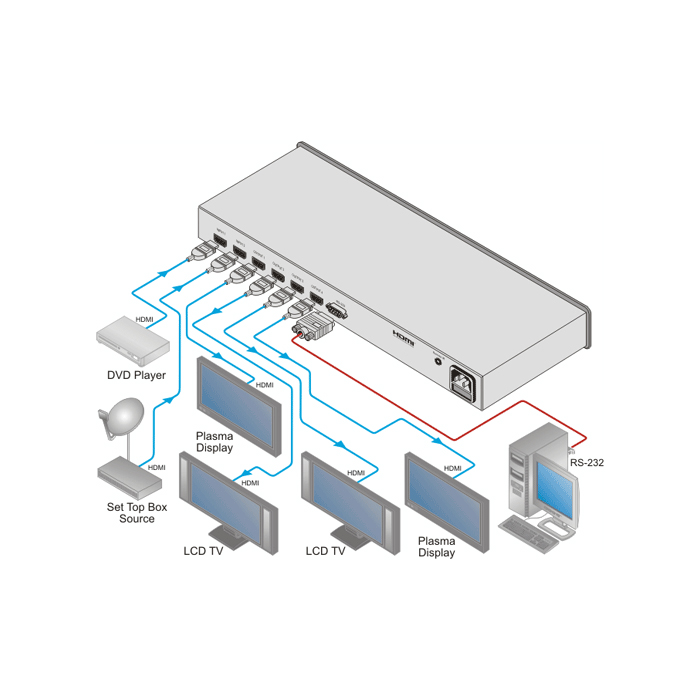

The VM−24H is a distribution amplifier for HDMI signals. The unit reclocks and equalizes one of two selectable input signals and distributes it to four identical outputs.
Features
- Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant.
- HDMI Support — Deep Color, x.v.Color™, Lip Sync, CEC.
- 3D Pass–Through.
- Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal integrity to travel longer distances.
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Active Output LED Indicators.
- Worldwide Power Supply — 100–240V AC.
- Standard 19” Rack Mount Size — 1U. Rack “ears” included.
Brand:
Kramer
Part number:
11-70240020
Specifications
Product Type:
HDMI Switcher
Maximum Operating Temperature:
+40°C
Version:
220V
Special Features:
Max. Data Rate, HDTV Compatible, HDCP Compliant, HDMI Support, 3D Pass-Through, EDID Pass-through, Active Output LED Indicator, Control, Worldwide Power Supply, Standard 19” Rack Mount Size
Applications:
Home Theatre, Presentation and Multimedia, Rental and Staging
Indicator Type:
LED
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Cord, Null-Modem Adapter, Windows-Based Control Software
Performance
Bandwidth:
6.75Gbps
Inputs and Ports
Output Type:
4xHDMI Connector
Input Type:
2xHDMI
Power
Input Voltage:
100 to 240V AC
Dimensions
Width:
43.6cm
Depth:
18.3cm
Height:
4.3cm
Weight:
1.6kg
