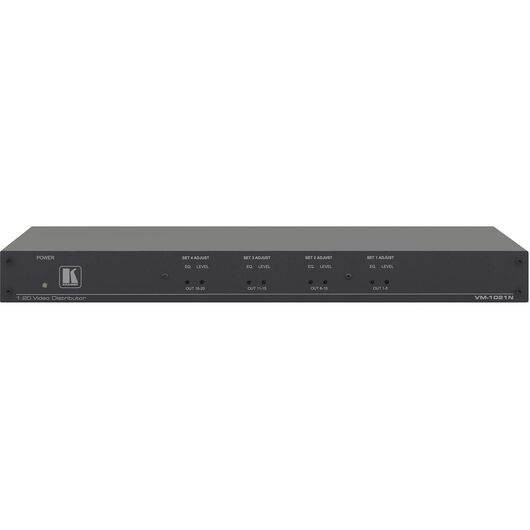

VM-1021N 1:20 Composite Video Distribution Amplifier
Please sign in so that we can notify you about a reply
The VM−1021N is a high−performance distribution amplifier for composite or SD−SDI video signals. It provides controls to compensate for signal losses inherent in long cable runs.
Features
- High Bandwidth — 350MHz (–3dB).
- Grouped Level (Gain) and EQ (Peaking) Controls.
- Looping Input.
- Selectable Input Signal Termination.
- DC Coupling.
Brand:
Kramer
Part number:
11-70538030
Product Type:
Composite/SDI Video Distribution Amplifier
Specifications
Video Signal Format:
Composite Video
Maximum Operating Temperature:
+40°C
Special Features:
Grouped Level (Gain) and EQ (Peaking) Control, Looping Input, Selectable Input Signal Termination, DC Coupling
Applications:
Broadcast/Production, And Editing Facilities, Any Professional System Requiring High Quality Signal Distribution, Retail Stores and Other Point-of-Sale Systems, Computer Rgb or Component Video Distribution Using Multiple Vm-1021s in Parallel
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Cord
Performance
Bandwidth:
350MHz
Signal-to-Noise Ratio:
74dB
Frequency Rating:
50/60Hz
K-Factor:
<0.05%
Differential Gain:
0.1%
Input Impedance Rating:
75Ω
Differential Phase:
0.07°
Inputs and Ports
Output Type:
20xComposite/Component Video, 1Vpp/75Ω on BNC Connector
Connector Type:
BNC
Input Type:
1xComposite Video/Single Component with Loop, 1Vp-p/75Ω on a BNC Connector with Termination Switch
Power
Input Voltage:
230V AC
Output Impedance Rating:
75Ω
Dimensions
Width:
43.6cm
Depth:
18.3cm
Height:
4.3cm
Weight:
1.6kg
