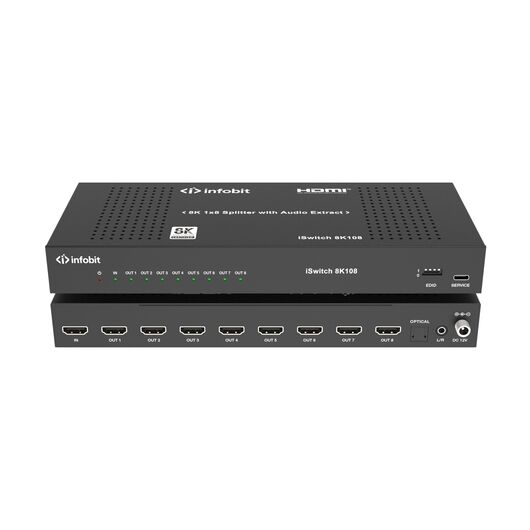

iSwitch 8K108 8K 1x8 HDMI splitter, with Audio extract.
Please sign in so that we can notify you about a reply
1x8 splitter is an advanced solution for splitting single HDMI signal to 8 HDMI outputs synchronously, with video resolution up to 8K@60 4:2:0 12bit.It supports data rates up to 48Gbps, complying with HDMI 2.1 and HDCP 2.3 requirements. It includes several features for ease of integration, including EDID management, cable equalization. It can de-embed the audio signal from HDMI source to transmit to 5.1/2.0CH sound system. This multi-functional product can work well with xbox or PS5 to achieve 4K@120Hz on your TVs or relative monitors.
Features- HDCP 2.3 compliant
- Support 48Gbps FRL and 18Gbps TMDS video bandwidth
- Support resolution up to 8K@60Hz 4:2:0 12bit
- 4K@120Hz 4:4:4 12bit,
- As specified in HDMI 2.1
- Support VRR, ALLM, QMS, QFT, SBTM
- Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
- Support HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, Atmos,
- DTS-HD Master Audio
- Support resolution auto downscaling on each output
- Support auto converting of HDR to SDR on each output
- Advanced EDID management
Brand:
Infobit
Product Type:
HDMI Splitter
Specifications
Audio Format:
LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Maximum Operating Temperature:
40°C
Colour:
Black
Supported Signals:
HDMI Signal
Power Rating:
12.2W
Chassis Material:
Metal
Applications:
Demonstration, Video Conference, Multimedia Teaching and Other Occasion
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1x48Gbps 1x8 Splitter, 1x12V/2.5A Multi-National Locking Power Supply, 2xMounting Ear, 4xMachine Screw (KM3*6), 1xUser Manual
Performance
Resolution:
Upto 8K@60Hz (4:2:0 12bit), 4K@120Hz (4:4:4 12bit), 8K@30Hz (4:4:4 12bit)
HDMI Compliance Type:
2.1
HDCP Compliance Type:
2.3, 1.4
Colour Depth:
8/10/12bit
Colour Space:
RGB, YCbCr 4:4:4, YCbCr 4:2:2,YCbCr 4:2:0
Frequency Rating:
50/60Hz
Inputs and Ports
Connector Type:
Input: 1xHDMI Type-A (19-pin Female), Output: 8xHDMI Type-A (19-pin Female)/1xOptical (S/PDIF)/1xL/R (3.5mm Stereo Mini-Jack)
Number of Ports:
11
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
25cm
Depth:
10.4cm
Height:
3cm
Weight:
743g
Other
Voltage Rating:
12V DC
