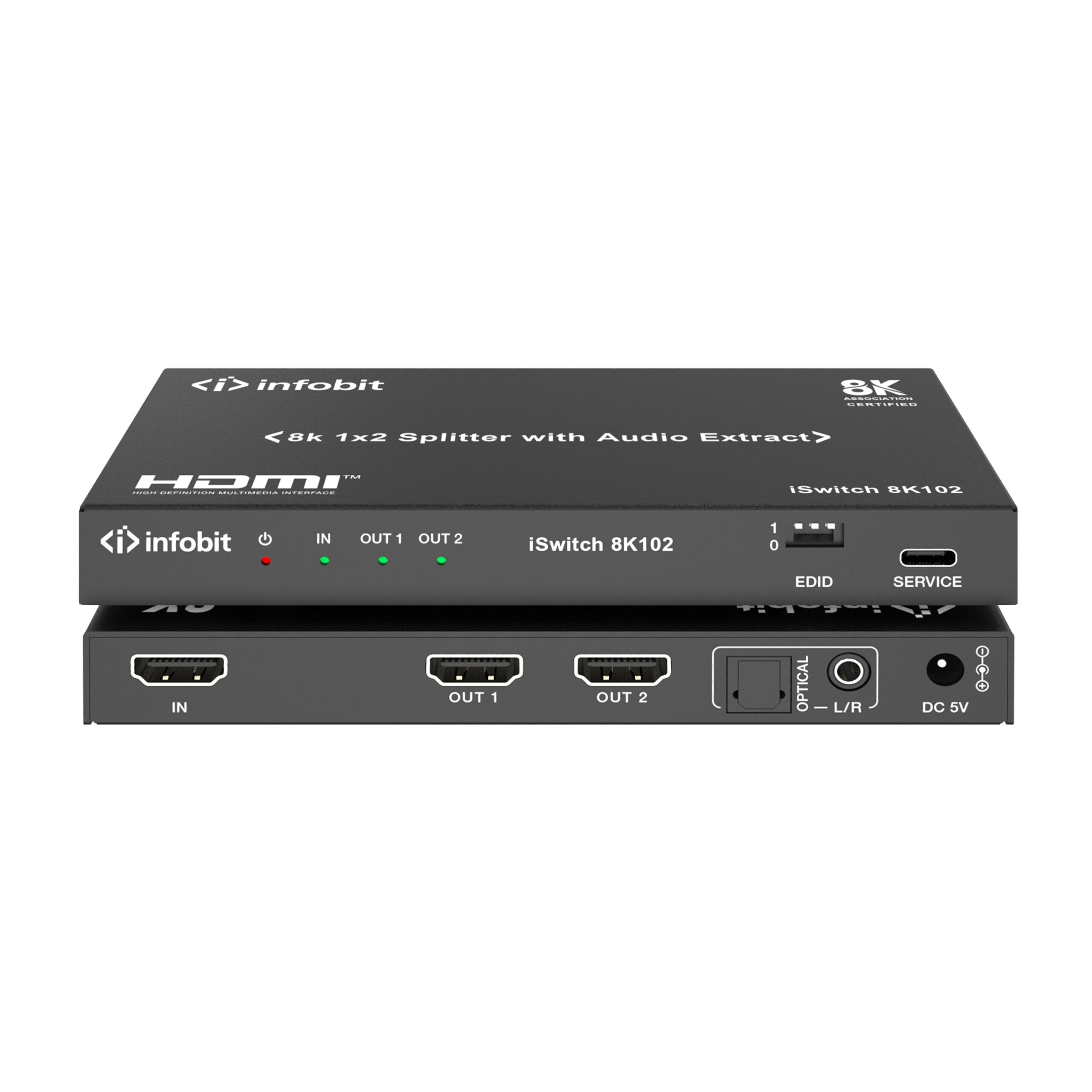

iSwitch 8K102 8K 1x2 HDMI splitter, with Audio extract.

1x2 splitter can distribute one HDMI source signal to any two display devices. Video resolution is up to 8K@60Hz 4:2:0 12bit. It supports data rates up to 48Gbps to comply with HDMI 2.1 and HDCP 2.3 requirements. It also has advanced EDID management and audio de-embedding function. This multi-functional product can work well with xbox or PS5 to achieve 4K@120Hz video resolution on your TVs or relative monitors.

Features
  • iSwitch 8K102
  • HDCP 2.3 compliant
  • Support 48Gbps FRL and 18Gbps TMDS video bandwidth
  • Support resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, as specified in HDMI 2.1
  • VRR, FVA, ALLM are supported
  • Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
  • Support HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master Audio
  • Support audio de-embedding function (output through the optical and analog port)
  • Support resolution auto downscaling on each output
  • Support auto converting of HDR to SDR on each output
  • Advanced EDID management
Brand:
Infobit
Product Type:
HDMI Splitter
Specifications
Audio Format:
LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master Audio
Maximum Operating Temperature:
40°C
Colour:
Black
Power Rating:
4.5W
Chassis Material:
Metal
Applications:
TV Monitor
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1x48Gbps 1x2 HDMI Splitter, 1x5V/2A DC Power Adapter, 1xUser Manual
Performance
Resolution:
upto8K@60Hz (4:2:0 12bit), 4K@120Hz (4:4:4 12bit)
HDMI Compliance Type:
2.1
HDCP Compliance Type:
2.3, 1.4
Colour Depth:
8/10/12bit
Colour Space:
RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2/4:2:0
Frequency Rating:
50/60Hz
Inputs and Ports
Connector Type:
Input:1xHDMI Type-A (19-pin Female), Output: 2xHDMI Type-A (19-pin Female), 1xOptical (S/PDIF), 1xL/R (3.5mm Stereo Mini-Jack)
Number of Ports:
6
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
14.5cm
Depth:
6.8cm
Height:
1.7cm
Weight:
260g
Other
Voltage Rating:
100 to 240V AC (Input), 5V DC (Output)

iSwitch 8K102 1 (iSwitch-8K102-User-Manual-V1.0.pdf, 1,227 Kb) [Download]
