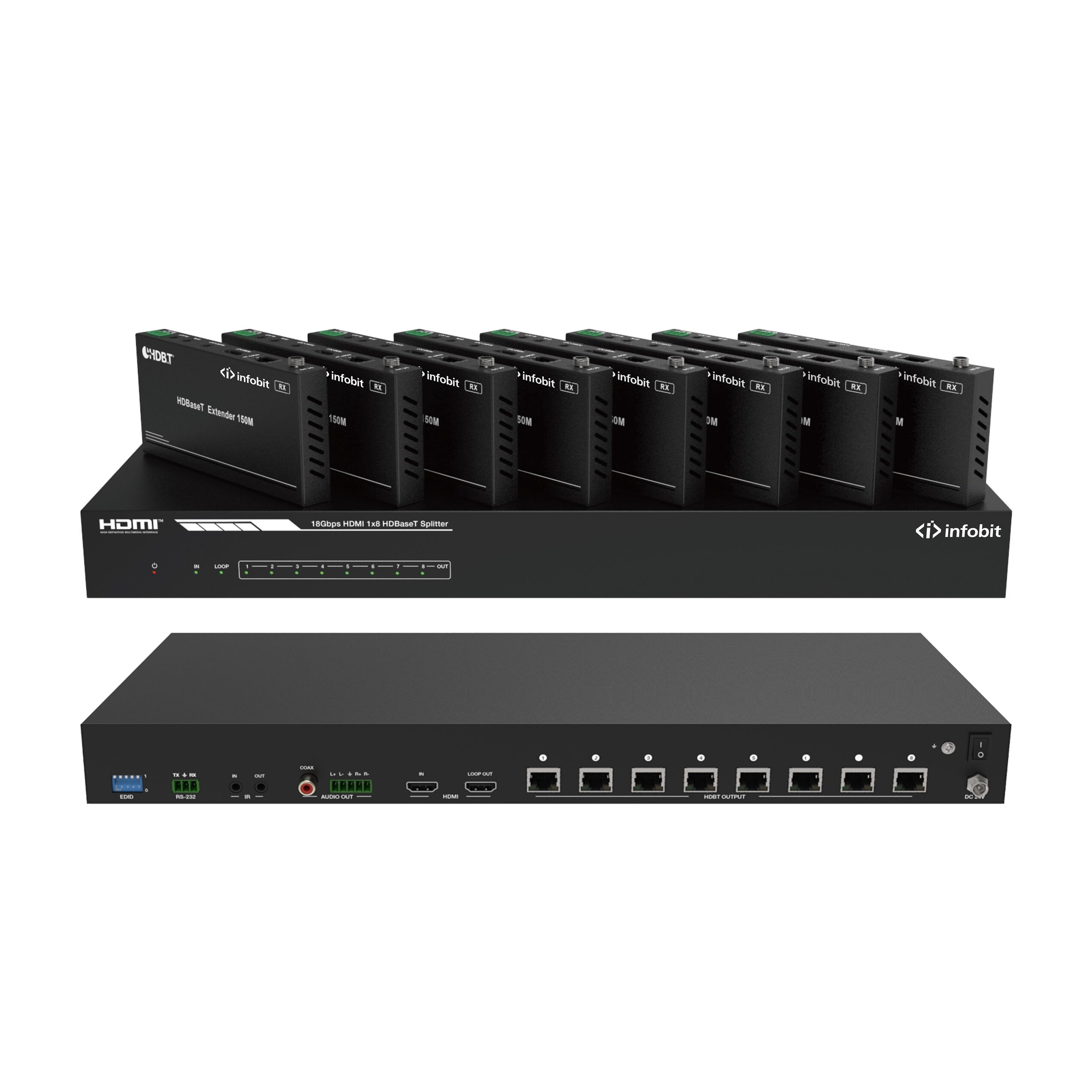

iSwitch 108H150 4K60 1x8 HDMI splitter, smart EDID, w/ audio and 8x 150m HDBaseT Rx
Please sign in so that we can notify you about a reply
18Gbps HDMI 1x8 HDBaseT Splitter can distribute 1 source signal to any 8 display devices. The HDMI signal transmission distance can be extended up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable. The product supports up to 7.1CH HD audio pass-through. Audio extract function and advanced EDID management are supported.
Features- iSwitch 108H150
- 1x8 HDMI 18Gbps Splitter w/150m HDBaseT
- HDMI 2.0b, HDCP 2.2 and HDCP 1.xcompliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4K2K@60Hz 4:4:4 ☆ Support HDR, HDR10+, HLG and Dolby vision
- Support up to 7.1CH HD audio pass-through
- Support digital and analog audio de-embedded output
- Extend the signal transmission distance up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable
- Support 1 HDMI input, 1 HDMI loop output and 8 HDBaseT outputs
- IR, RS-232 routed to HDBaseT output
- Advanced EDID management
- Support one-way POC function (only from transmitter to receiver)
- Compact design for easy and flexible installation
Brand:
Infobit
Product Type:
HDMI Splitter
Specifications
Audio Format:
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Maximum Operating Temperature:
40°C
Colour:
Black
Supported Signals:
HDMI Signal
Power Rating:
72W
Chassis Material:
Metal
Applications:
UHDTV
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1×18Gbps HDMI 1×8 HDBaseT Splitter, 8×HDBaseT Receiver, 9×IR Blaster Cable (1.5 m), 9×20K to 60KHz IR Receiver Cable (1.5 m), 9×3-pin Phoenix Connector, 1×5-pin Phoenix Connector, 18×Mounting Ear, 1×24V/3.75A DC Locking Power Adapter, 1×User Man
Performance
Resolution:
Upto 4K2K@60Hz (4:4:4)
HDMI Compliance Type:
2.0b
HDCP Compliance Type:
2.2, 1.x
Colour Depth:
8bit/10bit/12bit (1080pixel@60Hz), 8bit (4K2K@60Hz YUV4:4:4), 8bit/10bit/12bit (4K2K@60Hz YCbCr 4:2:2/4:2:0)
Colour Space:
RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
Frequency Rating:
50/60Hz
Inputs and Ports
Connector Type:
Input: 1xHDMI Type-A (19-pin Female), Output: 8xHDMI Type-A (19-pin Female)/4xHDBaseT/1xCoaxial Audio, 1xL/R Audio (5-pin Phoenix Connector)
Number of Ports:
8
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
44cm (Transmitter), 14cm (Receiver)
Depth:
13cm (Transmitter), 6.5cm (Receiver)
Height:
4.4cm (Transmitter), 1.8cm (Receiver)
Weight:
1.62kg (Transmitter), 246g (Receiver)
Other
Voltage Rating:
100 to 240V AC (Input), 24V DC (Output)
