CPLUS-V2E 4K HDR 1×2 HDMI Splitter
Please sign in so that we can notify you about a reply

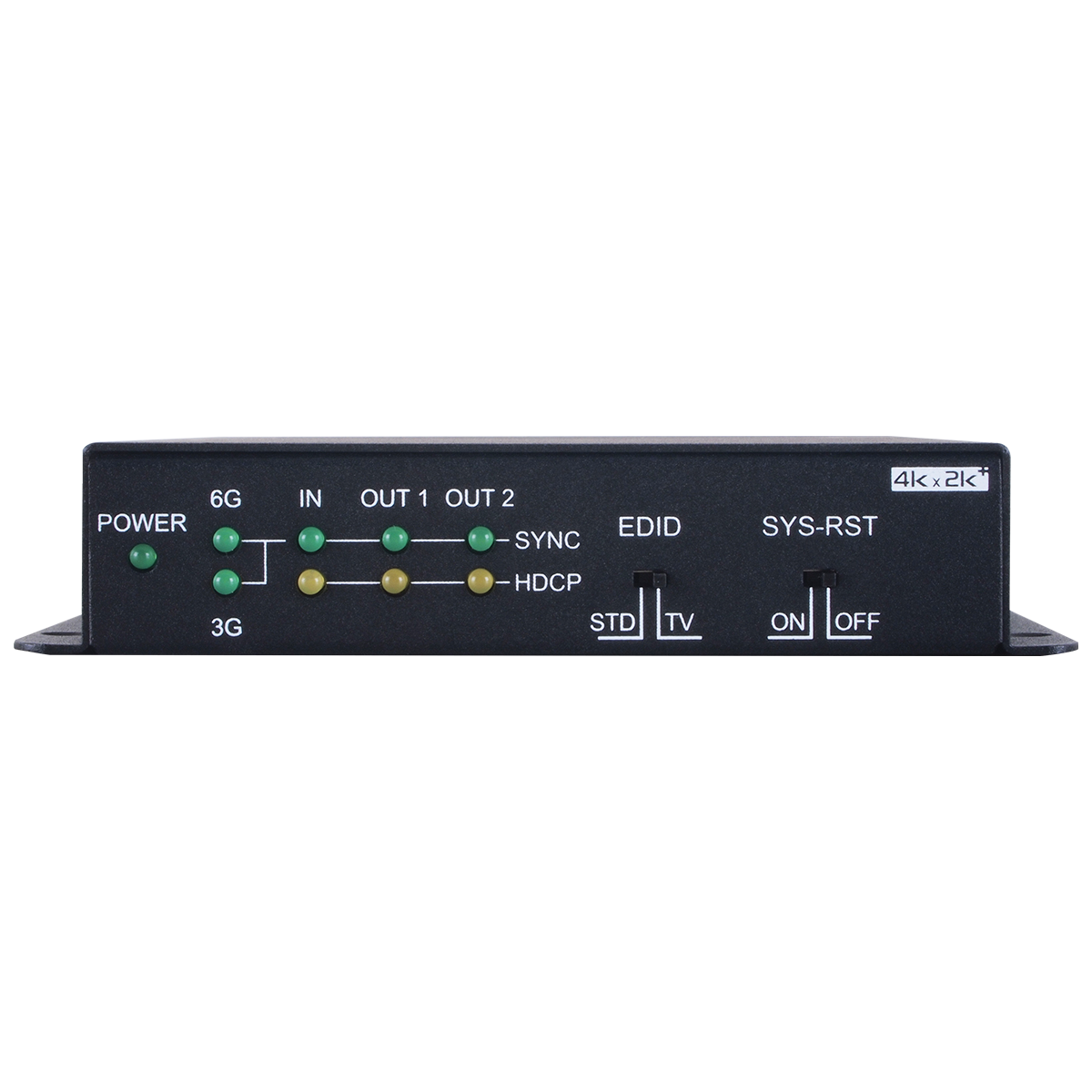

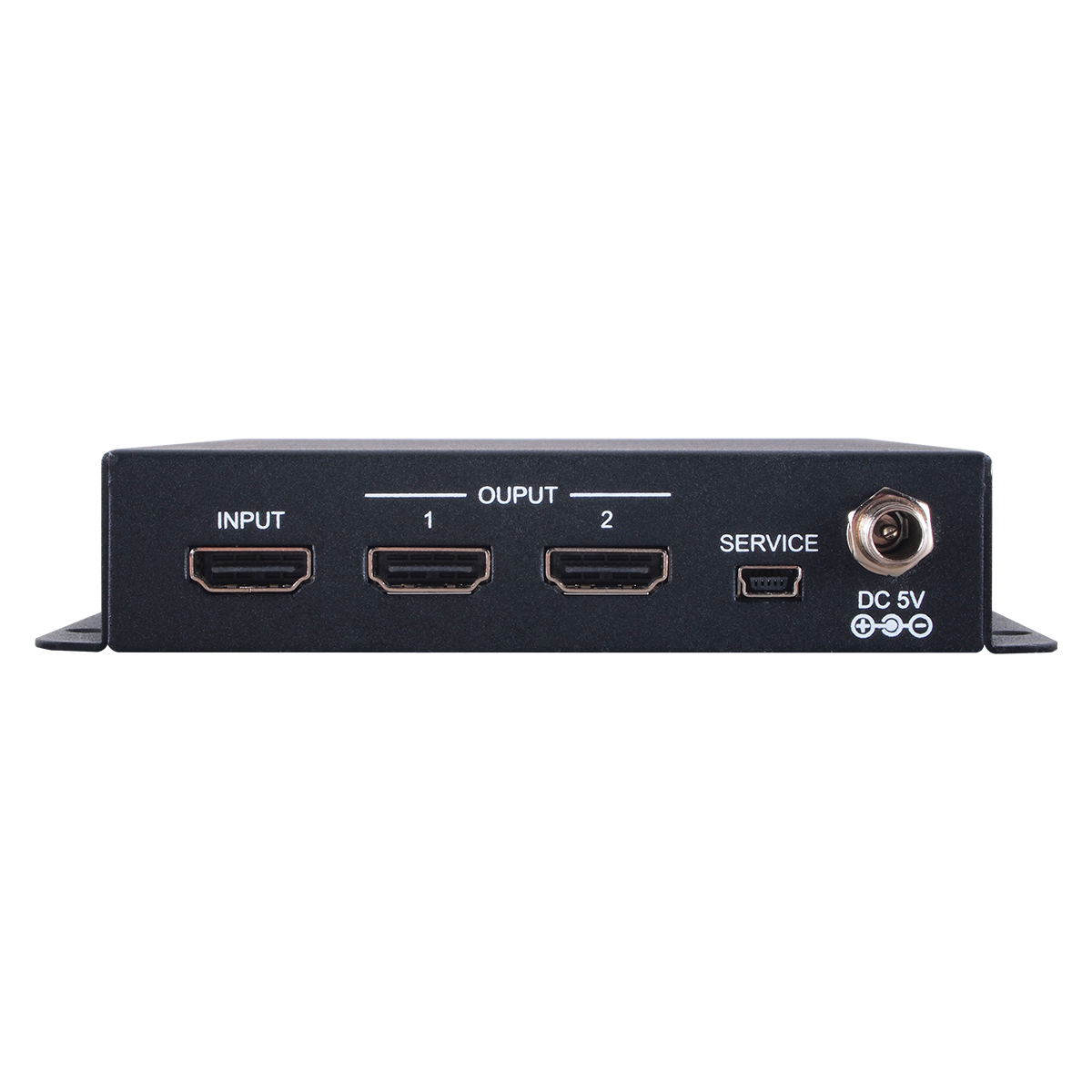

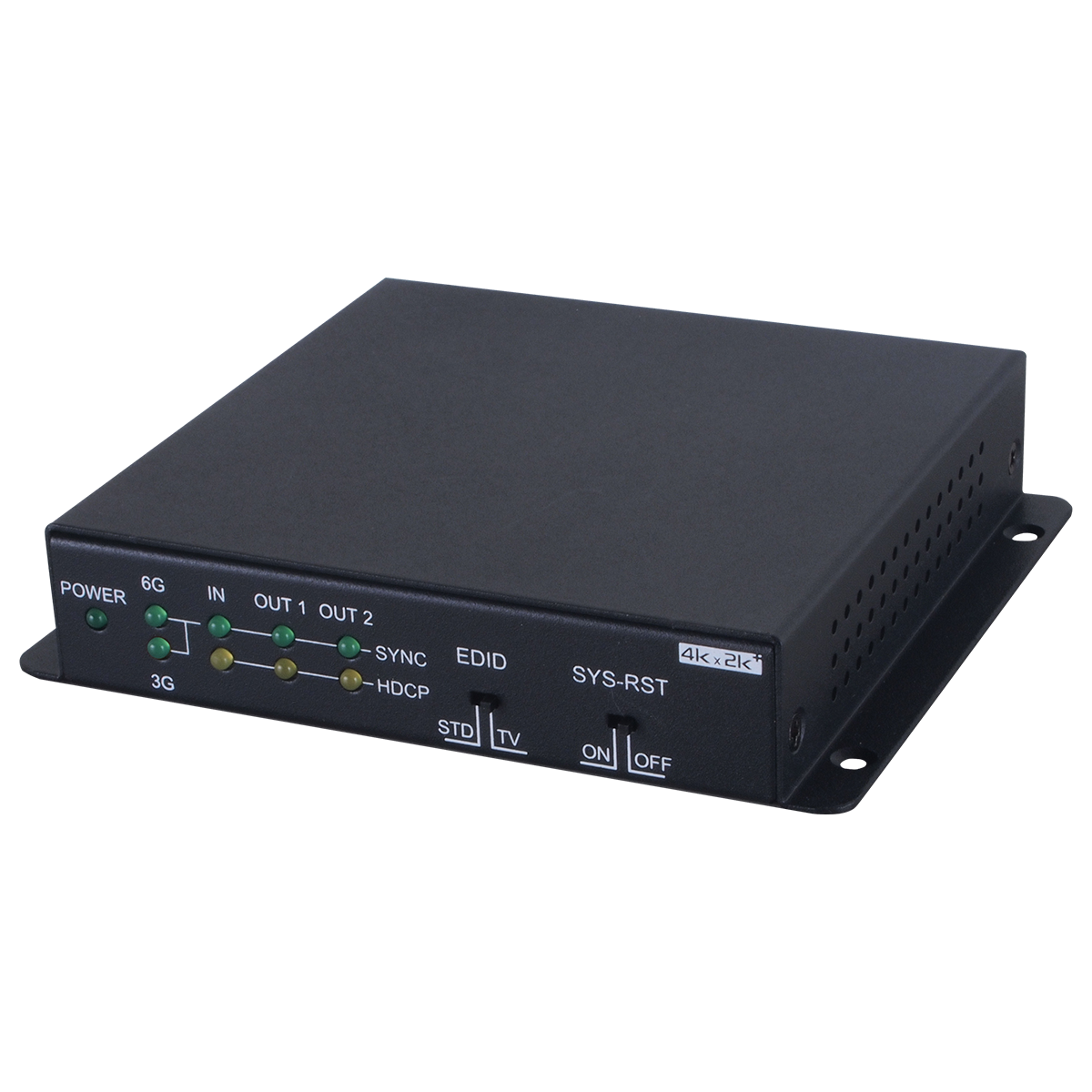

This 1 by 2 HDMI Splitter with HDCP 2.2 is an advanced solution for splitting and distributing a single HDMI input to two HDMI outputs. It provides high performance audio and video output up to 4K2K@60Hz (YUV 444) resolution and is capable of providing high levels of audio and video performance. It supports passthrough of high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio and Dolby Atmos with audio sampling rates up to 192kHz. Input and outputs status are indicated on the front panel. The System Reset function allows the unit to reset the TV to its default HDMI input automatically.
Features- 4Kx2K 6G supported, HDCP 2.2 , HDMI2.0 and DVI 1.0 compliant
- System Reset function supported( CEC active source command)
- Displays any of 1 Ultra High-Definition sources on 2 UHDTV displays simultaneously
- Displays any of 1 Ultra High-Definition sources on 2 UHDTV displays simultaneously
- 3D pass-Through
- Supports UHDTV resolutions up to 4Kx2K (3840x2160@24/25/30/50/60 & 4096x2160 @24/25/30/60)
Brand:
Cypress Technology
Specifications
Product Type:
1 by 2 6G HDMI Splitter
Audio Format:
LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD
Maximum Operating Temperature:
40°C
Colour:
Black
Supported Signals:
VGA to WUXGA
Power Rating:
4.5W
Chassis Material:
Metal
Applications:
Entertainment Room / Home Theater, Lecture Room/Hall Presentation, Show Room/Demo Room, Public Commercial Display
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
5 V/2.6 A DC Power Adaptor, Operation Manual
Performance
Resolution:
4096×2160Pixel@24/25/30/50/60 Hz
HDMI Compliance Type:
2
HDCP Compliance Type:
2.2
Colour Depth:
12bits or 8bits
Frequency Rating:
192kHz
Inputs and Ports
Connector Type:
HDMI, DVI, HDCP
Number of Ports:
3
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
12.8cm
Depth:
11.7cm
Height:
3cm
Weight:
358g
Other
Voltage Rating:
5V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
