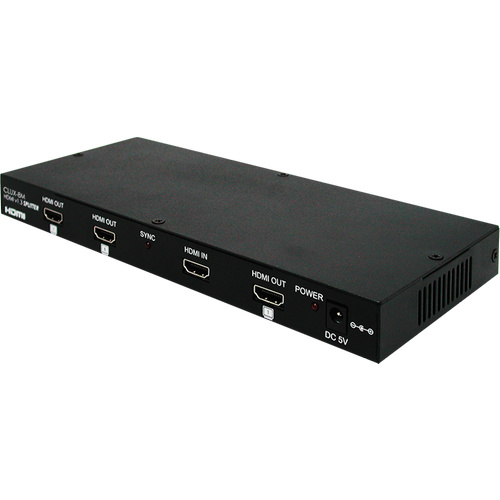

CLUX-8M Video Splitter, 1×8 HDMI
Please sign in so that we can notify you about a reply
These 1x4 and 1x8 HDMI splitter allow one HDMI source to connect up to four or eight HDMI displays simultaneously depends on the model. Compliant with HDMI v1.3 and HDCP v 1.1 specifications. It supports a wide range of PC resolution at up to 1600x1200px and HDTV resolutions at up to 1080p Deep colour video.
Features- HDMI 1.3, HDCP1.1 and DVI1.0 compliant
- Supports Deep colour video up to 12bit, 1080p@(24/60)Hz
Brand:
Cypress Technology
Specifications
Product Type:
1×8 HDMI Splitter
Audio Format:
LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Maximum Operating Temperature:
40°C
Colour:
Black
Supported Signals:
VGA to UXGA
Chassis Material:
Metal
Applications:
Project Presentation, Showroom Display, Advertising Display Control
Minimum Operating Temperature:
0°C
Includes:
5V DC Power Supply Adaptor, Operation Manual
Performance
Resolution:
480i to 1080Pixel
HDMI Compliance Type:
1.3
HDCP Compliance Type:
1.1
Colour Depth:
10bits, 12bits
Frequency Rating:
192kHz
Inputs and Ports
Connector Type:
HDMI, DVI, HDCP
Number of Ports:
9
Dimensions
Width:
24cm
Depth:
10.3cm
Height:
2.4cm
Weight:
1000g
Other
Voltage Rating:
5V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
