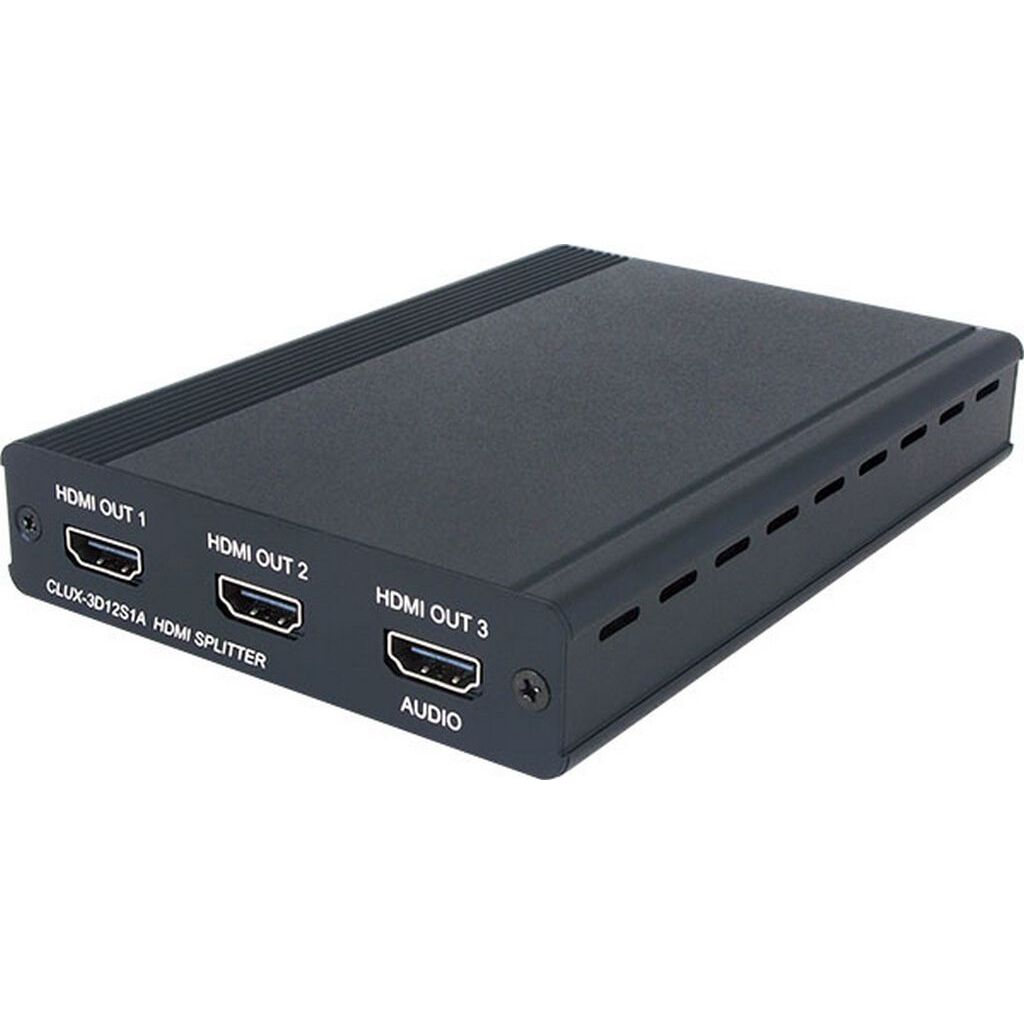

CLUX-3D12S1A Video Splitter, 1×2 HDMI
Please sign in so that we can notify you about a reply
The 1 by 2 HDMI splitter with integrated audio is fully compliant with HDMI and allows the output from any HDMI equipped device to be split allowing connection to up to two HDTV displays e.g. an LCD TV and a projector in the same room. The third HDMI output is an audio with blue screen output, which means it can be connected to an AV Receiver that does not support 3D signals.
Features- Deep Colour video up to 12-bit, 1080p@24/60 Hz
- One HDMI source to connect up to two HDMI displays simultaneously
- One audio-only HDMI output connected to an AVR
- Splits an HDMI source to two outputs without signal loss
Brand:
Cypress Technology
Specifications
Product Type:
1×2 HDMI Splitter
Audio Format:
LPCM 7.1CH, Dolby Digital and Dolby Digital Plus
Maximum Operating Temperature:
40°C
Colour:
Black
Supported Signals:
VGA to WUXGA
Power Rating:
4.1W
Chassis Material:
Aluminium
Applications:
Showroom Environment, Education Demo, Installation Usage, Home Entertainment
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
5 V/1 A DC Power Supply Adaptor, Operation Manual
Performance
Resolution:
480i to 1080Pixel
HDCP Compliance Type:
1.1
Colour Depth:
12bits or 8bits
Frequency Rating:
192kHz
Inputs and Ports
Connector Type:
HDMI, DVI, HDCP
Number of Ports:
3
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
10cm
Depth:
14.7cm
Height:
2.5cm
Weight:
300g
Other
Voltage Rating:
5V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
