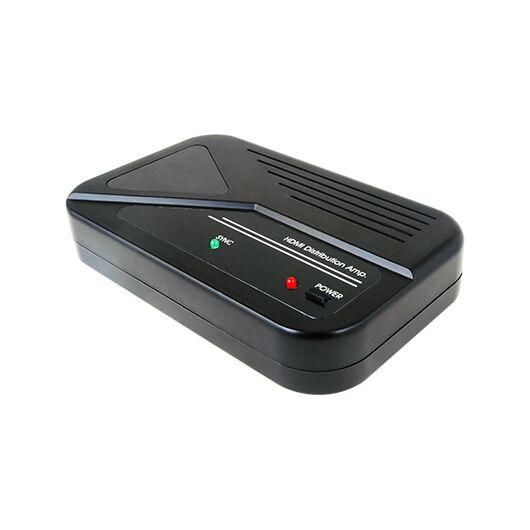

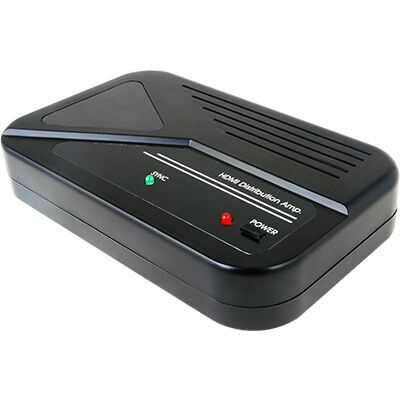

CLUX-2EN Video Splitter, 1×2 HDMI
Please sign in so that we can notify you about a reply
The 1 by 2 HDMI Splitter from Cypress Technology can split and distribute a single HDMI input into 2 identical HDMI outputs without any loss of quality. It supports a wide range of HDMI features including high definition video and lossless audio, 3D, and 12-bit Deep Color.
Features- Supports HDTV resolutions up to 1080p60 and PC resolutions up to WUXGA (1920×1200 Reduced Blanking)
- HDMI and HDCP compliant
- Supports up to 12-bit Deep color
Brand:
Cypress Technology
Product Type:
1×2 HDMI Splitter
Specifications
Audio Format:
LPCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, and DTS-HD
Maximum Operating Temperature:
40°C
Colour:
Black
Supported Signals:
VGA to WUXGA
Power Rating:
3.5W
Chassis Material:
Metal
Applications:
Simultaneously Display an HDMI Source on up to 2 Displays, Retail Sales Display, Home Entertainment HD Distribution, HDTV/Projector distribution
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
5 V/2.6 A DC Power Supply Adaptor, Operation Manual
Performance
Resolution:
480i to 1080Pixel
Colour Depth:
12bits or 8bits
Frequency Rating:
225MHz
Inputs and Ports
Connector Type:
HDMI, HDCP
Number of Ports:
3
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
10.3cm
Depth:
15.5cm
Height:
2.5cm
Weight:
298g
Other
Voltage Rating:
5V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
