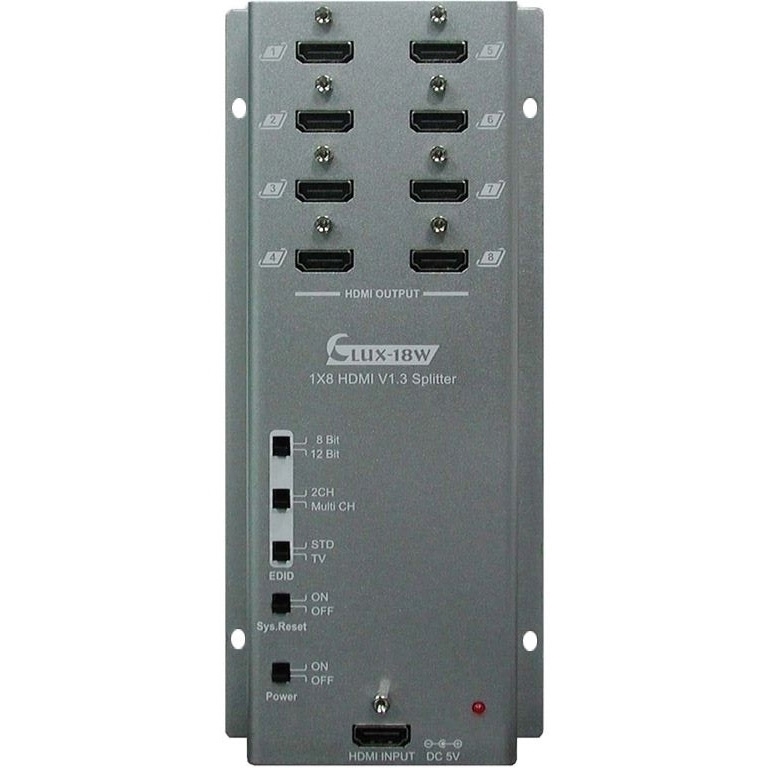

CLUX-18W Wall Mount Splitter, 1×8 HDMI
Please sign in so that we can notify you about a reply
The HDMI v1.3 Splitter is the most advance solution for HDMI signal distribution. This device defines and support Deep Color (8 bit & 12 bit) video with new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, a high bandwidth up to 225MHz (6,75Gbps). Besides splitting and distributing, the device also does signal amplification and equalization to provide high performance I/O of audio and video. With add on features of EDID, CEC and system reset functions the device is made in whole to support fully for your splitter system’s demand.
Features- HDMI v1.3, HDCP1.1 and DVI1.0 compliant Receiver
- Deep Color video up to 12bit, 1080p(24/60Hz)
- One HDMI source connect up to eight HDMI displays simultaneously
- HDCP keysets allows each output to work independently when connecting to a HDMI display
Brand:
Cypress Technology
Product Type:
1×8 HDMI Wallmount Splitter
Specifications
Audio Format:
LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Maximum Operating Temperature:
40°C
Colour:
Silver
Supported Signals:
VGA to WUXGA
Power Rating:
10W
Chassis Material:
Aluminium
Applications:
Simultaneous Multi Channel Display, Show Room Display Control, Educational Demonstration, Installation Usage
Minimum Operating Temperature:
0°C
Includes:
Power Adaptor, Operational Manual
Performance
Resolution:
480i to 1080Pixel
HDMI Compliance Type:
1.3
HDCP Compliance Type:
1.1
Colour Depth:
12bits or 8bits
Frequency Rating:
2.25MHz
Inputs and Ports
Connector Type:
HDMI, DVI, HDCP
Number of Ports:
9
Dimensions
Width:
9.3cm
Depth:
2.2cm
Height:
3.1cm
Weight:
300g
Other
Voltage Rating:
5V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
