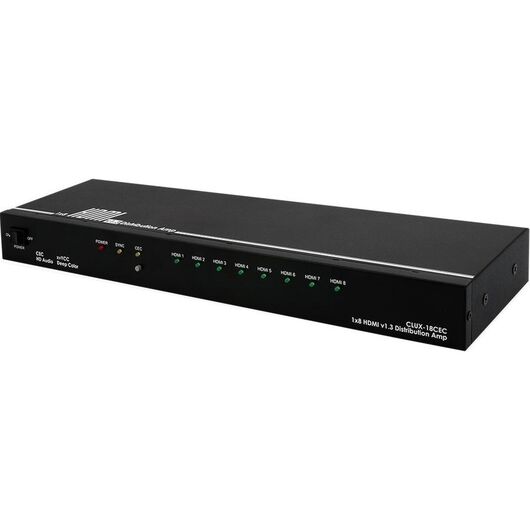

CLUX-18CEC Video Splitter, 1×8 HDMI
Please sign in so that we can notify you about a reply
CLUX-18CEC is a 1x8 distribution amplifier for HDMI signals. Supports resolutions up to 1600x1200 and 1080p. The device receives an HDMI signal from a single source, amplifies it and equalizes the cable frequency response, then distributes the signal unchanged to eight synchronized outputs. Сable length up to 10 m. HDCP compliant, supports EDID, CEC.
Features- Input source equipments with HDMI output connector(s)
- Output displays with HDMI input connector(s)
Brand:
Cypress Technology
Specifications
Product Type:
1×8 HDMI Splitter
Audio Format:
LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Maximum Operating Temperature:
40°C
Colour:
Black
Supported Signals:
VGA to UXGA
Power Rating:
18W
Chassis Material:
Metal
Applications:
Simultaneous Display one HDMI Source on 8 Tvs, Show Room Display Control, Educational Demo, Installation Usage
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
5V DC Power Supply Adaptor, Operation Manual
Performance
Resolution:
480 to 1080Pixel
HDMI Compliance Type:
1.3
HDCP Compliance Type:
1.1
Colour Depth:
10bits, 12bits
Frequency Rating:
225MHz
Inputs and Ports
Connector Type:
HDMI, DVI, HDCP
Number of Ports:
9
Power
ESD Protection Rating:
±10kV (Air-Gap Discharge), ±6kV (Contact Discharge)
Dimensions
Width:
43.6cm
Depth:
12cm
Height:
4.4cm
Weight:
1510g
Other
Voltage Rating:
5V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
