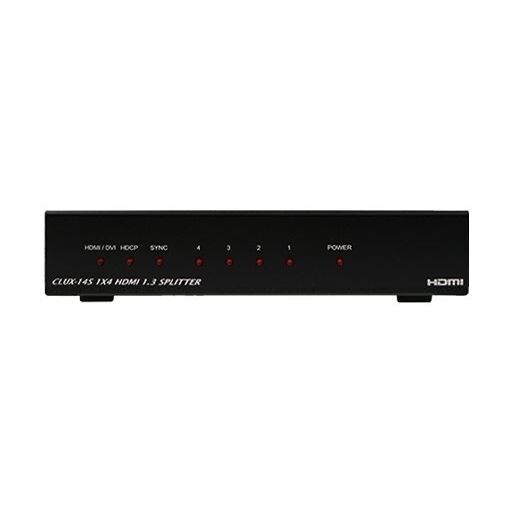

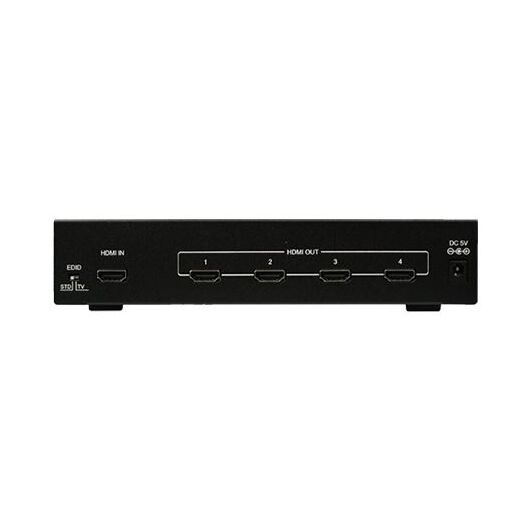

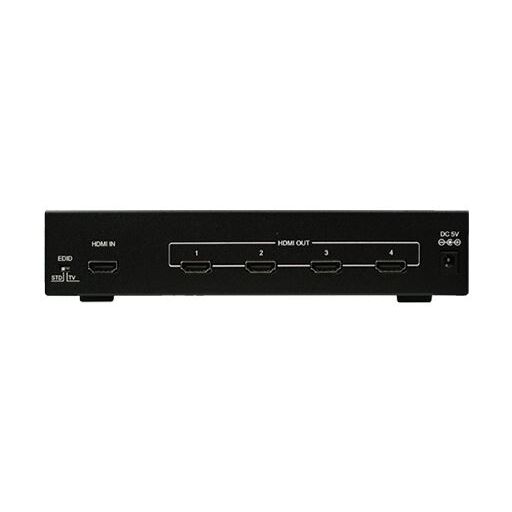

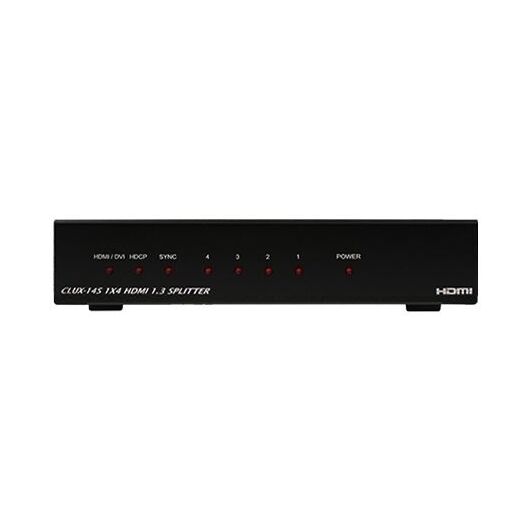

CLUX-14S Video Splitter, 1×4 HDMI
Please sign in so that we can notify you about a reply
CLUX-14S is a 1x4 distribution amplifier for HDMI 1.3 signals that allows you to distribute HDMI signals from one source to four receivers simultaneously up to 30 m (15 m for input and 15 m for output). Bandwidth: 225 MHz. HDCP compatible.
Features- HDMI 1.3 , HDCP1.1 and DVI1.0 compliant
- Deep Color video up to 12-bit, 1080p@60 Hz
- One HDMI source to connect up to four HDMI displays simultaneously
Brand:
Cypress Technology
Specifications
Product Type:
1×4 HDMI Splitter
Audio Format:
LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Maximum Operating Temperature:
40°C
Colour:
Black
Supported Signals:
VGA to UXGA
Minimum Operating Temperature:
0°C
Performance
Resolution:
480 to 1080Pixel
HDMI Compliance Type:
1.3
HDCP Compliance Type:
1.1
Colour Depth:
10bits, 12bits
Frequency Rating:
225MHz
Inputs and Ports
Connector Type:
HDMI, DVI, HDCP
Number of Ports:
5
Dimensions
Width:
21.5cm
Depth:
13.3cm
Height:
4.4cm
Weight:
850g
Other
Voltage Rating:
5V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
No reviews found
