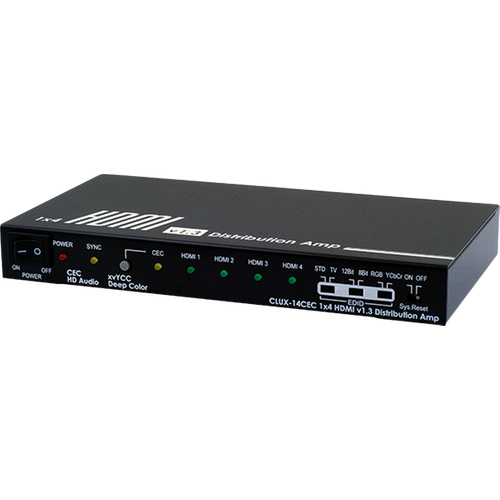

CLUX-14CEC Video Splitter, 1×4 HDMI
Please sign in so that we can notify you about a reply
From a single HDMI source you can transfer Deep Colour (10-bit and 12-bit) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio with high bandwidth up to 225MHz (6.75Gbps) to 2/4/8 HDMI outputs. Besides splitting and distributing, it also does signal amplification and equalisation, providing high I/O performance on both audio and video. On top of that, this device provides additional features like CEC, EDID function for maintaining superb image quality.
Features- HDMI 1.3, HDCP1.1 and DVI1.0 compliant Receiver
- Deep colour video up to 12bit, 1080p@(24/60)Hz
- Simultaneously displays one HDMI source onto eight HDMI displays
Brand:
Cypress Technology
Specifications
Product Type:
1×4 HDMI Splitter
Audio Format:
LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Maximum Operating Temperature:
40°C
Colour:
Black
Supported Signals:
VGA to UXGA
Power Rating:
5.5W
Chassis Material:
Metal
Applications:
Show One HDMI Source On Four Displays, Show Room Display Control, Educational Demo, Installation Usage
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
5V DC Power Supply Adaptor, Operation Manual
Performance
Resolution:
480 to 1080Pixel
HDMI Compliance Type:
1.3
HDCP Compliance Type:
1.1
Colour Depth:
12bits or 8bits
Frequency Rating:
225MHz
Inputs and Ports
Connector Type:
HDMI, DVI, HDCP
Number of Ports:
5
Power
ESD Protection Rating:
±10kV (Air-Gap Discharge), ±6kV (Contact Discharge)
Dimensions
Width:
20cm
Depth:
10.4cm
Height:
2.5cm
Weight:
572g
Other
Voltage Rating:
5V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
