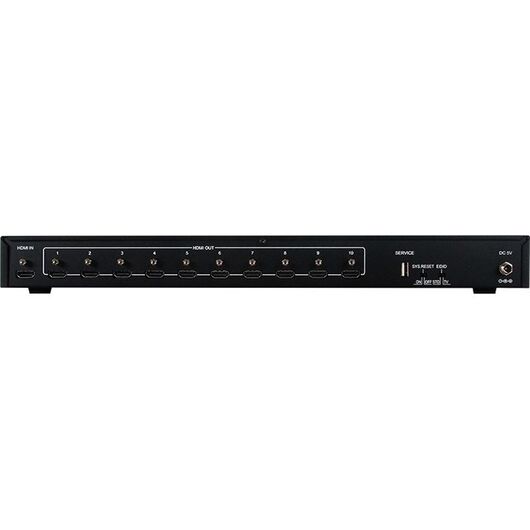

CDPS-UA1H10HS Video Splitter, 1x10 HDMI 4K UHD
Please sign in so that we can notify you about a reply
CDPS-UA1H10HS is a 1x10 distribution amplifier for HDMI signals up to 4K2K with HDCP 2.2 support. Distributes a signal received from one input to 10 synchronized HDMI outputs. Resolutions up to 4K2K/60Hz (YUV 4:2:0) with embedded audio are supported. EDID source management. 1080p signal transmission distance up to 10 m (up to 5m for 3840x2160/24).
Brand:
Cypress Technology
Product Type:
HDMI Splitter
Specifications
Audio Format:
LPCM 2/5.1/7.1CH, Dolby Digital 2 5.1CH, DTS Surround, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
Maximum Operating Temperature:
40°C
Colour:
Black
Power Rating:
16W
Chassis Material:
Metal
Applications:
Split a Single HDMI Input to Ten HDMI Displays, Showroom Display, Educational Demo, Commercial Advertisement
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
5V/6A Power Adaptor, Power Cord, Operational Manual
Performance
HDCP Compliance Type:
2.2
Maximum Analog Resolution:
4Kx2K (3840x2160@24/25/30,3840x2160@50/60 YUV_420 & 4096x2160@24/25/30, 4096x2160@50/60 YUV_420)
Colour Depth:
36bits
Frequency Rating:
300MHz
Inputs and Ports
Connector Type:
HDMI
Number of Ports:
11
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
43.6cm
Depth:
16.5cm
Height:
4.4cm
Weight:
1856g
Other
Voltage Rating:
5V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
