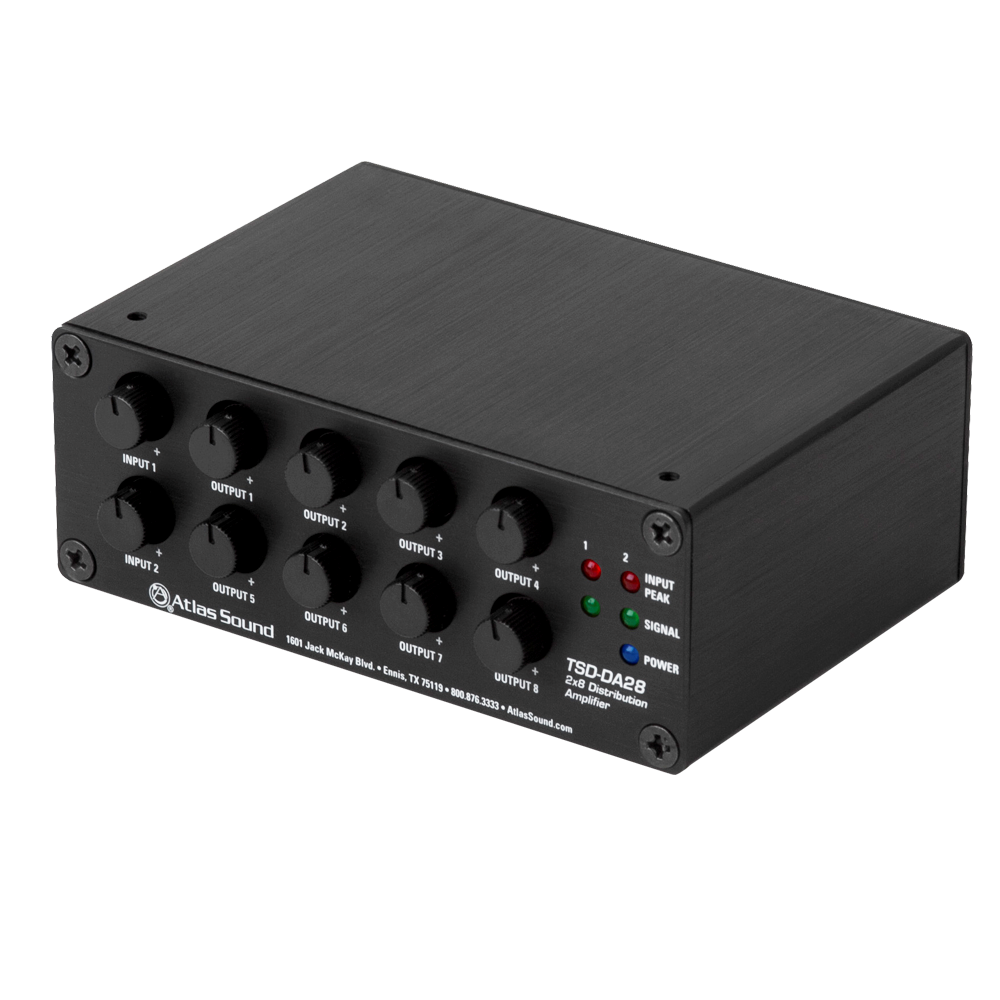

TSD-DA28 2 x 8 Distribution Amplifier
Please sign in so that we can notify you about a reply
The TSD-DA28 2x8 distribution amplifier is designed to provide clean, isolated signal distribution locally or to remote locations. The unit allows two independent balanced line level source inputs to be distributed to eight isolated variable outputs making it a perfect solution for applications including convention centers, houses of worship, restaurants/sports bars and industrial facilities. Isolation between outputs prevents crosstalk, removes miss matched input impedance concerns and allows for adjustable levels on each connected device. All I/O is via Phoenix style connectors for installation convenience and inputs may be easily paralleled for 1 in / 8 out configuration. Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. This unit has a power requirement of 80mA so any of the available TSD power supplies can be used with the unit. For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.
Features- Two (2) Balanced Line Inputs
- Eight (8) Isolated Balanced Line Outputs
- Signal & Peak Indicator LED's for Each Channel
- High Gain Output for Driving Long Balanced Lines
- Separate Ground Connections
- Removable Phoenix Style I/O Connectors
- Security Covers Included for All Front Panel Controls
- Energy Efficient
- Power Supply Sold Separately
Brand:
Atlas IED
Product Type:
2x8 Distribution Amplifier
Specifications
Special Features:
High Gain Output for Driving Long Balanced Line, Security Covers Included for All Front Panel Control, Multiple Mounting Configuration, Cable Management System, Separate Ground Connection
Applications:
Line Preamp, Line Driver, Zone Divider, Broadcast
Indicator Type:
LED
Includes:
Velcro, (2) Bracket, (2) Cable Retainer
Performance
Signal-to-Noise Ratio:
90dB
Frequency Rating:
20Hz to 20KHz
Total Harmonic Distortion:
0.06%
Input Impedance Rating:
10kΩ (Balanced), 5kΩ (Unbalanced)
Inputs and Ports
Input Type:
2xRemovable 3 Position Captive Screw 0.3cm Spacing (Balanced Line Selectable)
Power
Input Voltage:
24V DC
Output Impedance Rating:
300Ω (Balanced), 150Ω (Unbalanced)
Dimensions
Width:
10.1cm
Depth:
7cm
Height:
3.9cm
Weight:
0.1kg
Other
Standards Met:
cUL, CE, RoHS Compliant, TUV Certified
