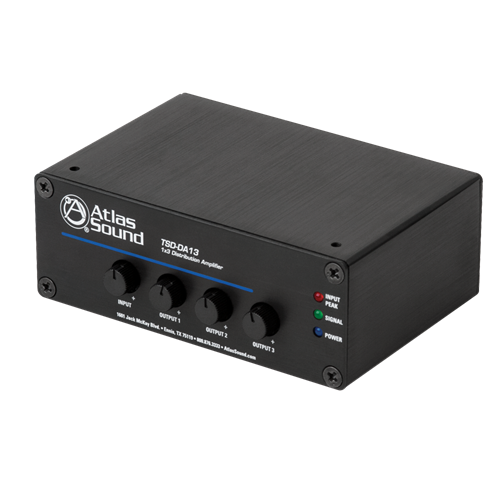

TSD-DA13 1 x 3 Distribution Amplifier
Please sign in so that we can notify you about a reply
The TSD-DA13 1x3 distribution amplifier is designed to provide clean, isolated signal distribution locally or to remote locations. The unit allows a balanced mic or line level source to be distributed to three isolated variable outputs making it a perfect solution for applications including convention centers, houses of worship, restaurants/sports bars and industrial facilities. A high quality, low noise mic pre-amp, defeatable 3dB low cut filter @ 125Hz and dual summing RCA line level inputs are included as part of the unit's input section. These features combined with the 3 mic / line level outputs allow for multiple configurations. Isolation between outputs prevents crosstalk, removes miss matched input impedance concerns and allows for adjustable levels on each connected device. All I/O (except the summing RCA inputs) is via Phoenix style connectors for installation convenience. Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. This unit has a power requirement of 60mA so any of the available TSD power supplies can be used with the unit. For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.
Features- One (1) Balanced Mic/Line Input with Switchable 24V Phantom Power
- High Gain (50dB), Low Noise Mic Preamp
- Summed Dual RCA Input
- Three (3) Isolated Balanced Mic/Line Outputs
- 12dB/Octave Low Cut Filter @ 125Hz

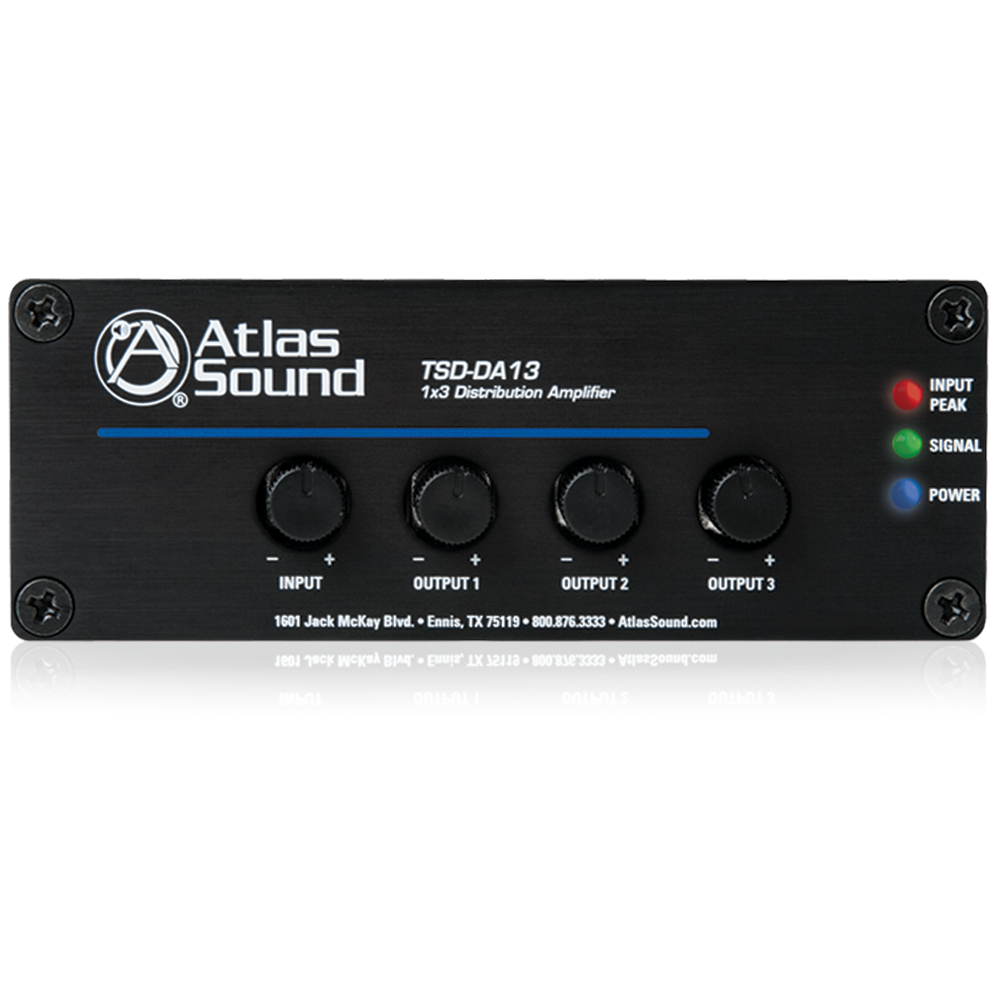

- Signal/Peak Indicator LED's
- High Gain Output for Driving Long Balanced Lines
- Removable Phoenix Style I/O Connectors
- Separate Ground Connections
- Energy Efficient
- Power Supply Sold Separately
Brand:
Atlas IED
Product Type:
1x3 Distribution Amplifier
Specifications
Special Features:
High Gain Output for Driving Long Balanced Line, Removable Phoenix Style I/O Connector
Applications:
Mic Preamp, Line Preamp, Stereo Summing Preamp, Line Drive, Zone Divider
Indicator Type:
LED
Includes:
Velcro, (1) Multi-Mount Plate, (2) M3x4mm Screw, (2) Cable Retainer, (4) Level Control Knob, (4) Level Control Security Cover
Performance
Signal-to-Noise Ratio:
85dBV (Line to Line), 78dBV (Mic to Line), 55dBV (Line to Mic), 55dBV (Mic to Mic)
Frequency Rating:
20Hz to 20KHz
Total Harmonic Distortion:
0.06%
Input Impedance Rating:
1.2kΩ (Balanced/Balanced Mic or Line Selectable), 600Ω (Unbalanced/Balanced Mic or Line Selectable), 10kΩ (Unbalanced)
Inputs and Ports
Input Type:

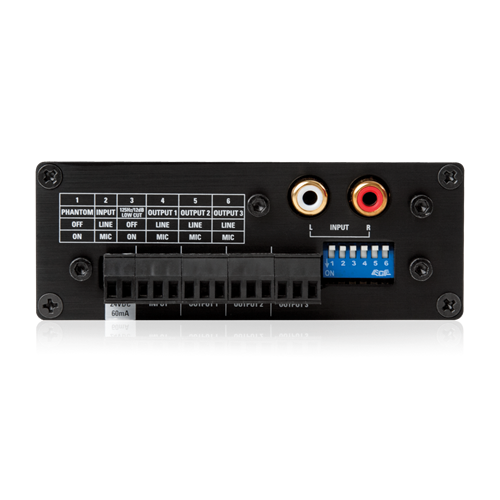

1xRCA Left and Right Actively Summed (Unbalanced), 1xRemovable 3 Position Captive Screw 0.3cm Spacing (Balanced Mic or Line Selectable)
Power
Input Voltage:
24V DC
Output Impedance Rating:
300Ω (Balanced), 150Ω (Unbalanced)
Dimensions
Width:
10.1cm
Depth:
7cm
Height:
3.9cm
Weight:
0.1kg
Other
Standards Met:
Meets Energy Star Standard
