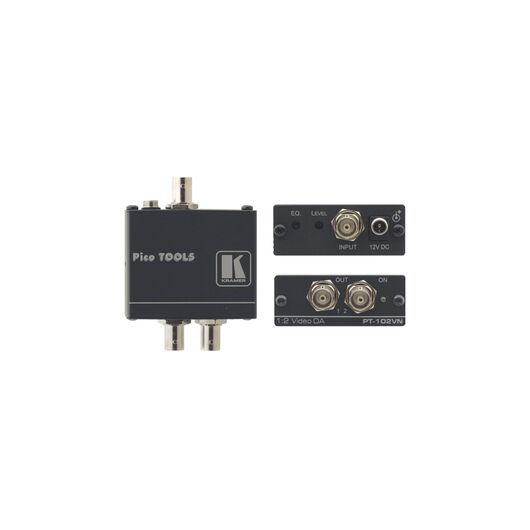

PT-102VN 1:2 Composite Video Distribution Amplifier
Please sign in so that we can notify you about a reply

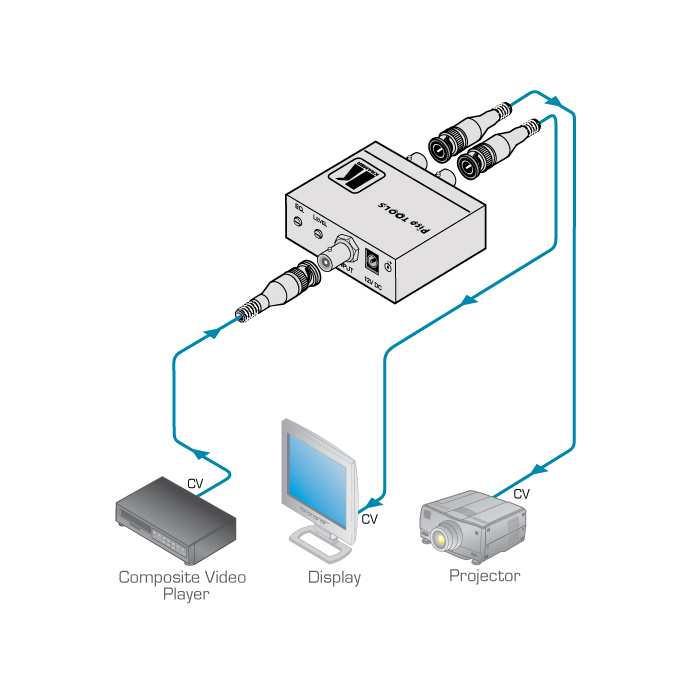

The PT−102VN is a distribution amplifier for composite video or SDI signals. It takes one input, provides correct buffering and isolation and distributes the signal to two identical outputs.
Features
- High Bandwidth — 430MHz (–3dB).
- Level (Gain) and EQ (Peaking) Controls.
- Ultra Compact Pico TOOLS™ — 4 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
90-102090
Specifications
Product Type:
Composite Video Distribution Amplifier
Video Signal Format:
Composite Video
Maximum Operating Temperature:
+40°C
Special Features:
Level (Gain) and EQ (Peaking) Control, Ultra Compact Pico TOOLS™
Applications:
Video Duplication Studios, Cctv and Home Theatre Use, Rental and Staging, Any Professional Display System Requiring an Identical Picture on Several Monitors
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply
Performance
Bandwidth:
430MHz
Signal-to-Noise Ratio:
76.1dB
K-Factor:
<0.05%
Differential Gain:
0.05%
Input Impedance Rating:
75Ω
Differential Phase:
0.05°
Inputs and Ports
Output Type:
2xComposite or SDI Video, 1Vpp/75Ω on BNC Connector
Connector Type:
BNC
Input Type:
1xComposite or SDI Video, 1Vp-p/75Ω on a BNC Connector
Power
Input Voltage:
12V DC
Output Impedance Rating:
75Ω
Dimensions
Width:
6.22cm
Depth:
5.1cm
Height:
2.4cm
Weight:
0.1kg
