PT-102SN 1:2 s-Video Distribution Amplifier
Please sign in so that we can notify you about a reply

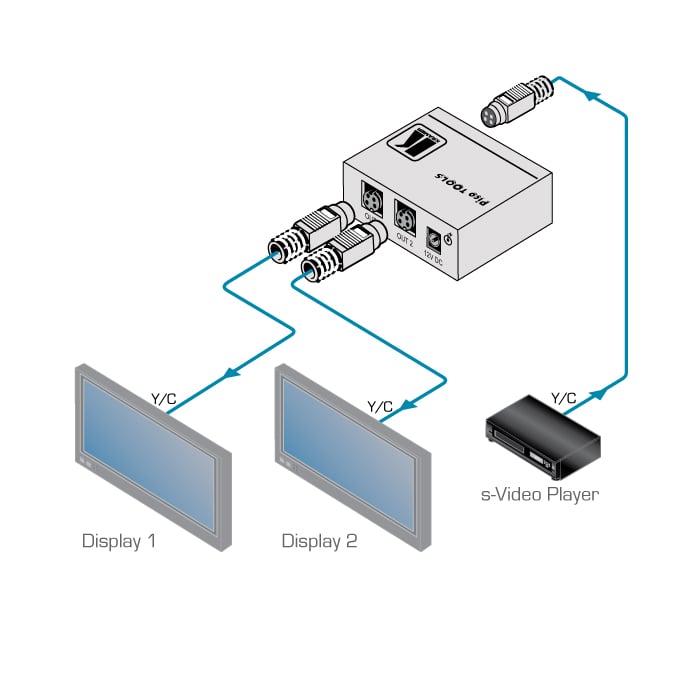

The PT-102SN is a high-performance video distribution amplifier for s-Video (Y/C) video signals. The unit takes one input, provides correct buffering and isolation, and distributes the signal to two identical outputs.
Features
- Bandwidth (Y) — 150MHz (–3dB).
- Y & C Level (Gain) Controls.
- Ultra Compact Pico TOOLS™ — 4 units can be rack mounted side–by–side in a 1U rack space with the optional RK–4PT rack adapter.
Brand:
Kramer
Part number:
90-781090
Specifications
Product Type:
s-Video Splitter
Special Features:
Y & C Level (Gain) Control, Ultra Compact Pico TOOLS™
Applications:
Audio/Video Duplication Studios, Retail Showrooms, Home Theatre Systems, CCTV and Security Systems
Includes:
Power Supply, Mounting Bracket
Performance
Bandwidth:
150MHz
Signal-to-Noise Ratio:
76dB
K-Factor:
<0.05%
Differential Gain:
0.05%
Differential Phase:
0.05°
Inputs and Ports
Output Type:
2xS-Video on 4-Pin Connector
Connector Type:
4-Pin
Input Type:
1xS-Video on a 4-Pin Connector
Power
Input Voltage:
12V DC
Dimensions
Width:
6.22cm
Depth:
5.1cm
Height:
2.4cm
Weight:
0.1kg
