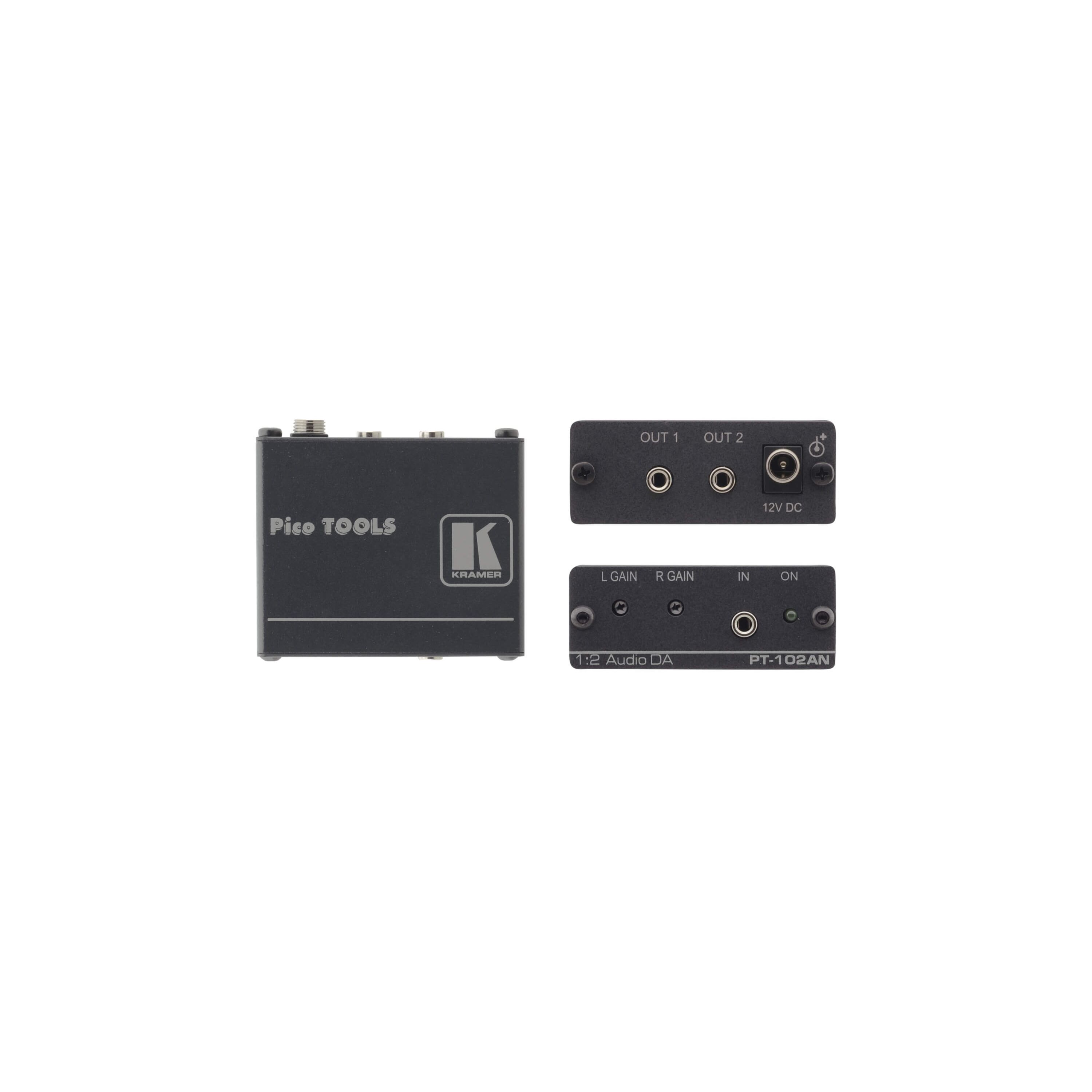

PT-102AN 1:2 Stereo Audio Distribution Amplifier
Please sign in so that we can notify you about a reply

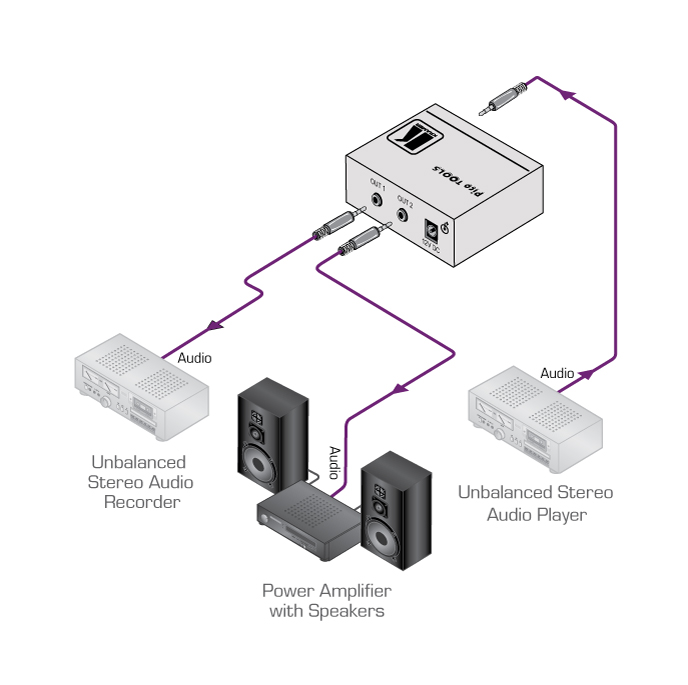

The PT-102AN is a high-performance audio distribution amplifier for unbalanced stereo signals. The unit takes one stereo input and distributes the signal to two identical stereo outputs.
Features
- Level (Gain) Controls.
- S/N Ratio — 85dB.
- Ultra–Compact Pico TOOLS™ — 4 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
90-752790
Specifications
Product Type:
Stereo Audio Distribution Amplifier
Special Features:
Level (Gain) Control, S/N Ratio, Ultra-Compact Pico TOOLS™
Applications:
Audio/Video Duplication Studios, Retail Showrooms, Home Theatre Systems, CCTV and Security Systems
Includes:
Power Supply, Mounting Bracket
Performance
Bandwidth:
>100kHz
Signal-to-Noise Ratio:
85dB
Total Harmonic Distortion:
0.01%
Inputs and Ports
Output Type:
2xUnbalanced Stereo Audio on 3.5mm Mini Jack
Connector Type:
3.5mm Mini Jack
Input Type:
1xUnbalanced Stereo Audio on a 3.5mm Mini Jack
Power
Input Voltage:
12V DC
Dimensions
Width:
6.22cm
Depth:
5.1cm
Height:
2.4cm
Weight:
0.1kg
