CPLUS-V8PT UHD+ 2x8 HDMI Splitter
Please sign in so that we can notify you about a reply
This 4K UHD Switching Splitter with HDCP 2.2 is an advanced solution providing high performance audio and video support including HDR and other features defined by the HDMI 2.0a specification. 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be passed along to the 8 outputs. Pass-through of multiple digital audio formats such as LPCM 7.1, Bitstream and advanced HD Bitstream with audio sampling rates up to 192kHz are also supported. An independent HDCP management engine for each output ensures stable HDCP performance.
Features
- 8 output HDMI splitter with 2 selectable inputs and automatic input switching support

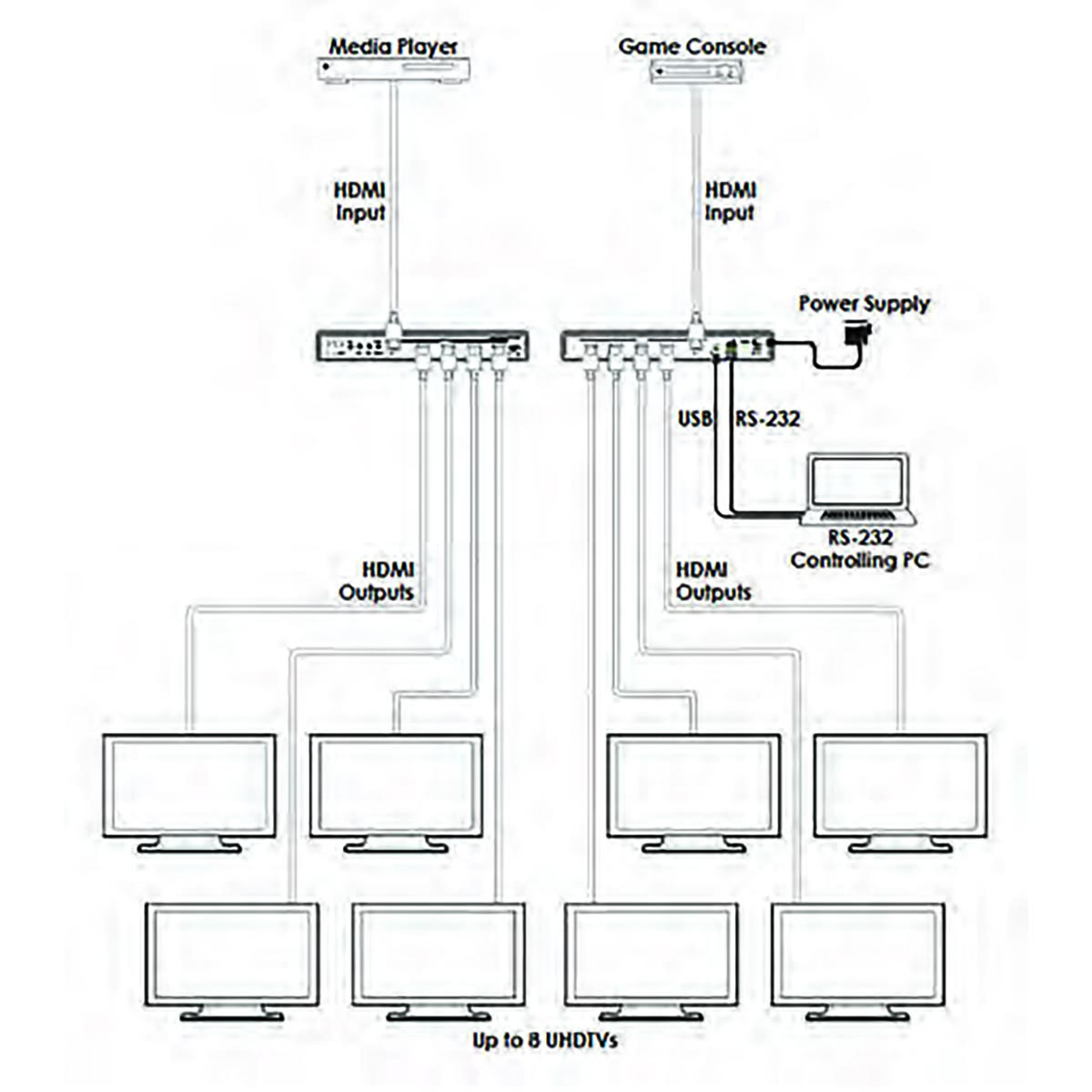

- Special “Group Mode” allows the unit to function as two independent 1×4 splitters in a single box
- Supports pass-through of LPCM 7.1, Bitstream and advanced HD Bitstream audio formats
- Per-output, selectable, 4K to 1080p down-scaling/color space conversion (4:4:4 to 4:2:0)
- Independent HDCP management engine for each output ensures stable performance
- Supports eight internal EDIDs, eight external EDIDs copied from connected devices, and two user provided EDIDs
- Support for the CEC “active source” command to periodically reset input selection on CEC-compatible connected displays

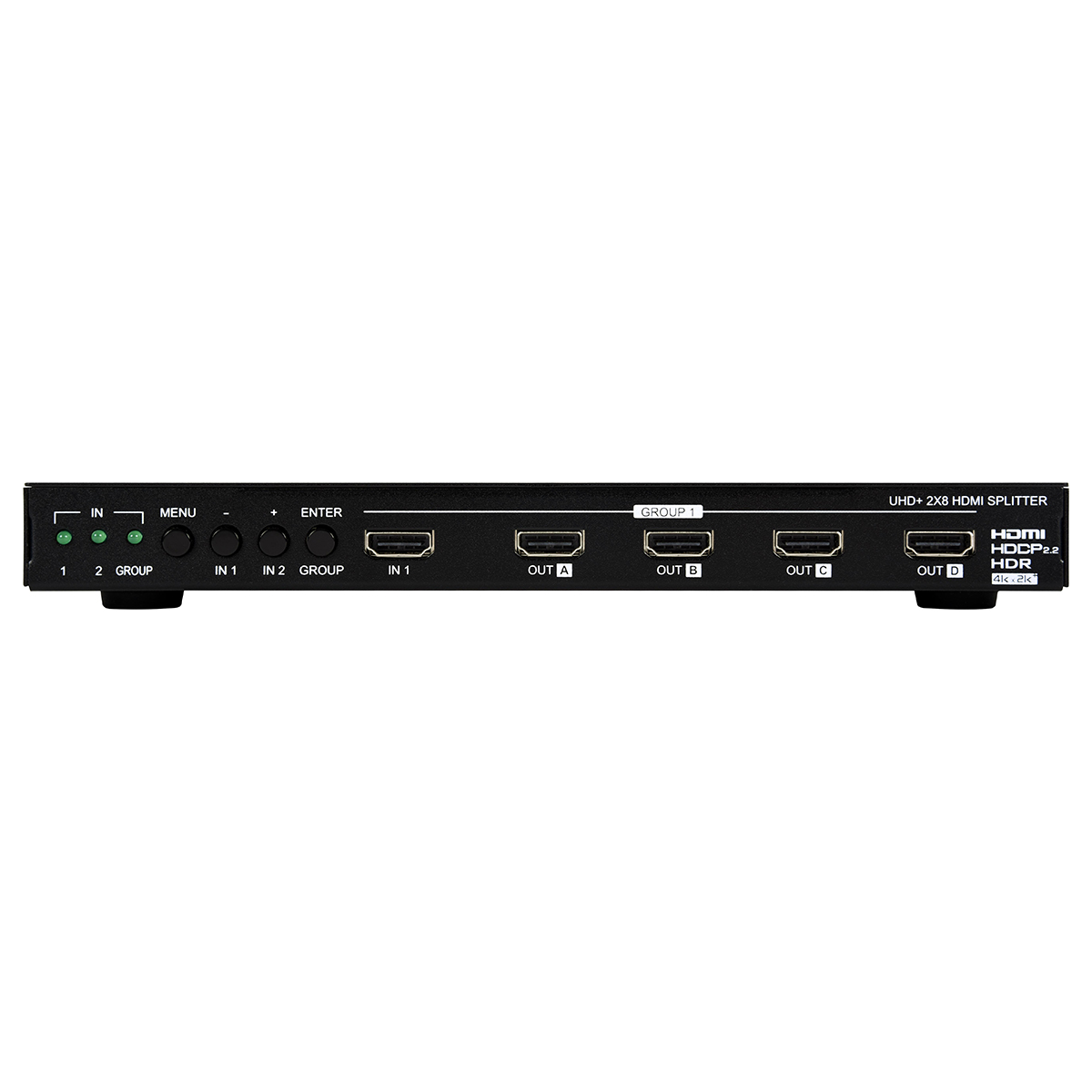

- Controllable via front-panel buttons with OSD and RS-232
Brand:
Cypress Technology
Product Type:
HDMI Splitter
Specifications
Audio Format:
LPCM 7.1, Bitstream, Advanced HD Bitstream with Audio Sampling Rates up to 192kHz are also Supported
Maximum Operating Temperature:
+40°C
Colour:
Black
Supported Signals:
UHD
Power Rating:
9.57W
Chassis Material:
Metal
Applications:
Classroom and Lecture Hall Presentation, Showrooms and Demo Rooms, Hotel Lobby information Display, Public Commercial Display
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1x4 Splitters
Performance
HDMI Compliance Type:
2.0
HDCP Compliance Type:
2.2, 1.x
Colour Space:
4:4:4 to 4:2:0
Frequency Rating:
600MHz
Inputs and Ports
Connector Type:
CEC
Number of Ports:
10
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
24cm
Depth:
10.3cm
Height:
2.4cm
Weight:
616g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
