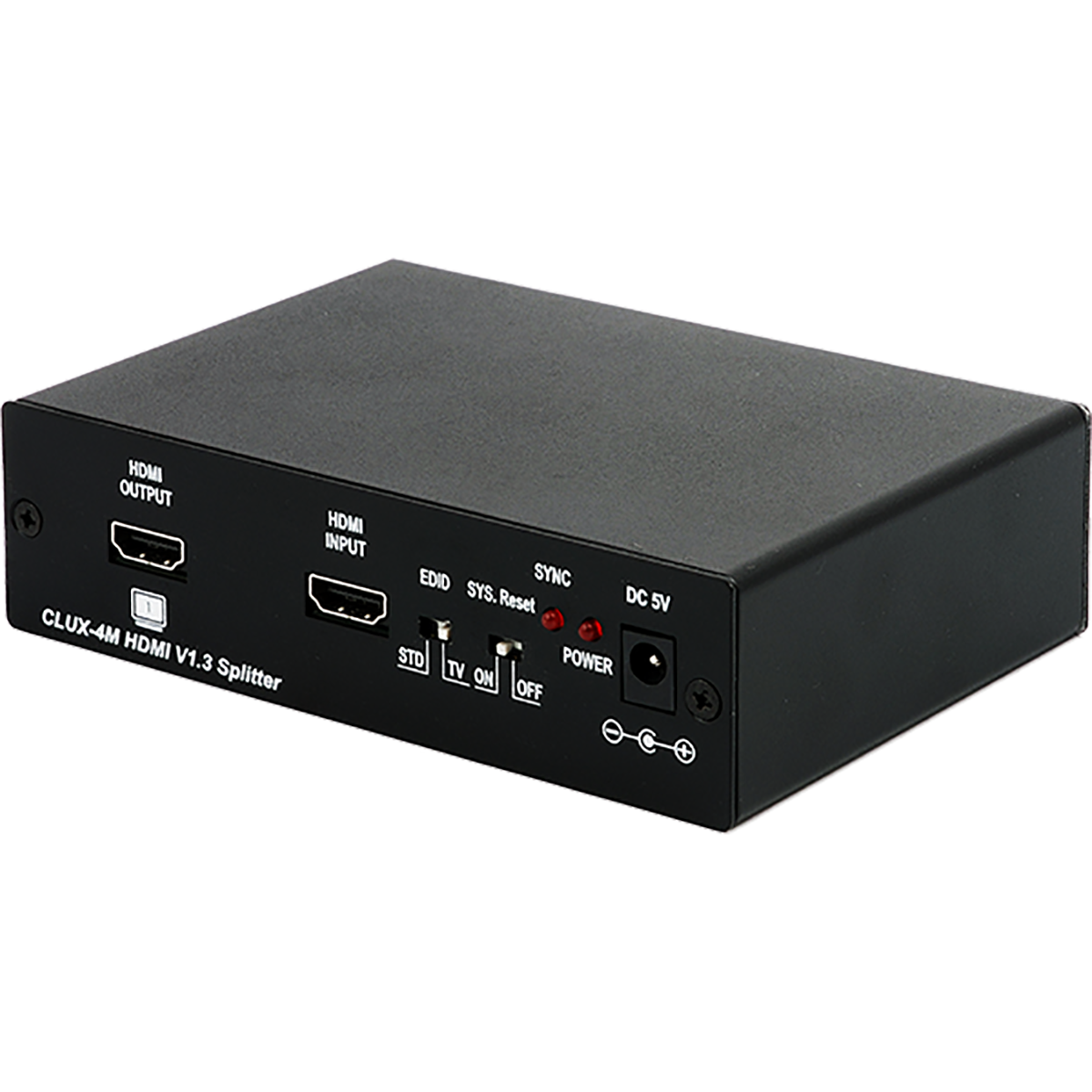

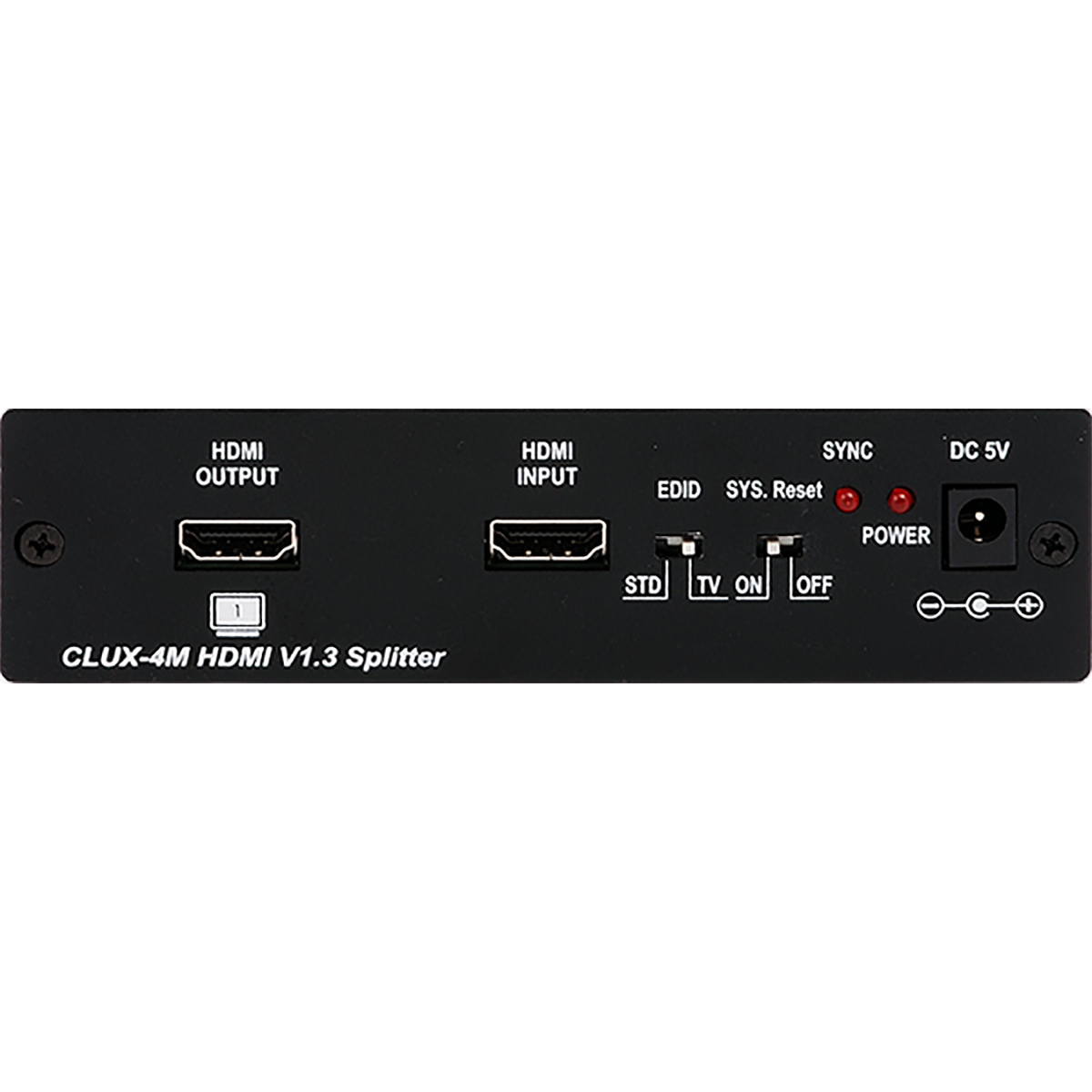

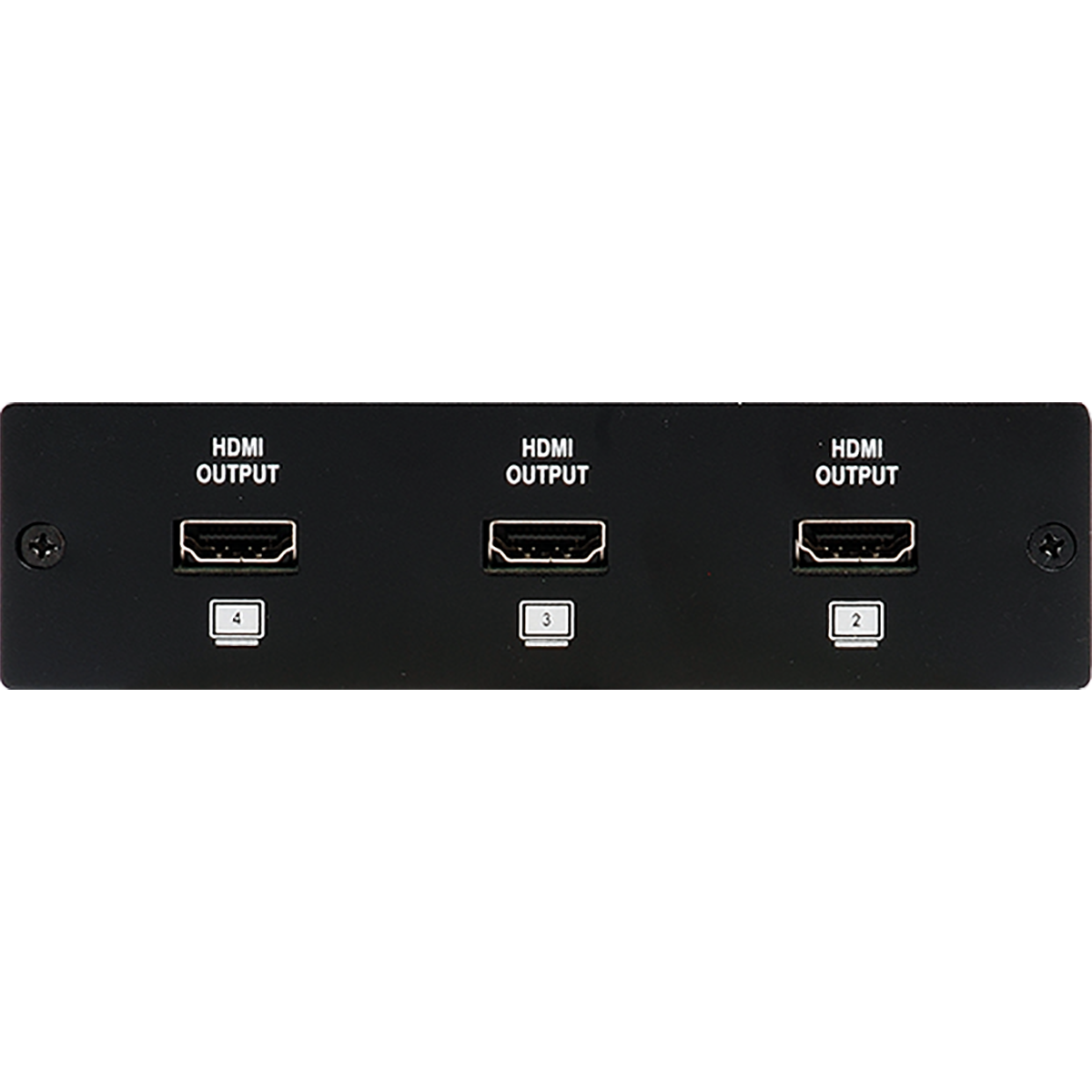

CLUx-4M 1x4 HDMI Splitter
Please sign in so that we can notify you about a reply
The 1 by 4 HDMI Multi-channel Splitter is the most advanced solution to HDMI signal distribution. It supports to transfer Deep Color (10-bit and 12-bit) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz (6.75Gbps). Besides splitting and distributing, the splitter also does signal amplification and equalization, so as to provide high performance I/O of audio and video.
Features
- HDMI, HDCP1.1 and DVI1.0 compliant
- Deep color support up to 12-bit, 1080p@24/60 Hz
- One HDMI source to be connected to up to Four HDMI displays simultaneously
- HDCP keysets allow each output to work independently when connecting to an HDMI display
- Splits one HDMI source up to eight outputs without signal loss
- Supports DVI source and DVI display by using HDMI to/from DVI adaptor cable
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32-192 kHz Fs sample rate)
- Supports a wide range of PC and HDTV resolutions from VGA to UxGA and 480i to 1080p
- HDMI cable distance test with 1080p/8bits resolution the, Input/ Output source can run up to 15/15 meters. If 1080p/12bits the Input/ Output source can run up to 10/15 meters. HDMI cable length support 15 meters at 1080p/8-bit resplution and 10 meters at 1080p/12-bit
- Can selected EDID source from TV or this splitter
- Supports CEC bypass
- SupportsxvYCC
- Supports System Reset function
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Splitter
Audio Format:
LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master
Maximum Operating Temperature:
+40°C
Colour:
Black
Supported Signals:
VGA to SXGA
Chassis Material:
Plastic
Applications:
Project Presentation, Showroom Display, Advertising Display Control
Minimum Operating Temperature:
0°C
Performance
Resolution:
VGA to UXGA, 480i to 1080pixels
HDCP Compliance Type:
1.1
Colour Depth:
10bits, 12bits
Inputs and Ports
Connector Type:
HDMI
Number of Ports:
5
Dimensions
Width:
20.6cm
Depth:
11.1cm
Height:
3.2cm
Weight:
248g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
