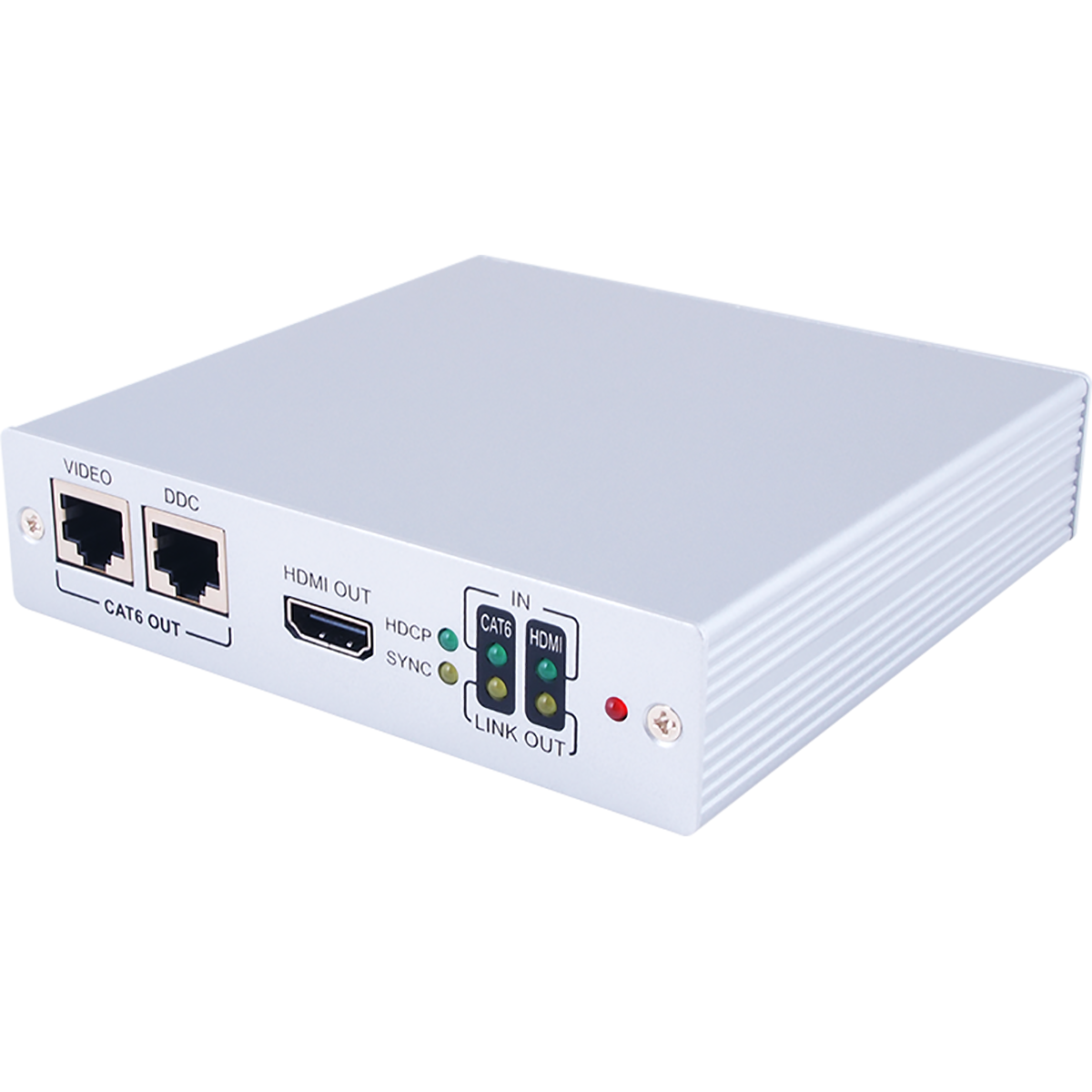

CLUx-22HC HDMI/CAT6 to HDMI/CAT6 Splitter Switcher
Please sign in so that we can notify you about a reply
The HDMI/CAT6 to HDMI/CAT6 Splitter Switcher is the most advanced solution for HDMI and Video/DDC signal distribution. This CAT6 output port can be easily connected to an HDMI receivers CAT6 input port to allow a stable connection between an HDMI source and any compatible display. Each product in this series is compatible to HDMI V1.3, which defines and supports the transfer of Deep Color (10bit and 12bit) video and a new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio signal, with a high bandwidth up to 225MHz (6.75Gbps). Besides splitting and distributing, the Video/DDC CAT6 output also does signal amplification and equalization which provide high performance I/O of audio and video.
Features
- HDMI 1.3, HDCP1.1 and DVI1.0 compliant
- Deep color video up to 12bit, 1080p@(24/60)Hz
- Simultaneously outputs one HDMI and one Video/DDC CAT6 source to one HDMI and one Video/DDC CAT6 output
- HDCP keysets allows each output to work independently when connecting to an HDMI display
- Capable of splitting HDMI/CAT6 sources to HDMI/CAT6 outputs without any signal loss
- Supports LPCM7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD master audio transmission (32-192 kHz Fs sample rate)
- Supports a wide range of PC and HDTV resolutions from VGA to SxGA and 480i to 1080p
- Full HDCP Compliant
- According to tests The Input/Output source can be up to 15/15 meters away when the HDMI cable has a resolution of with 1080p/8bits. The CAT6 cable test showed that with a resolution of 1080p/8bits, the Input/Output source can be 45/45 meters away. The HDMI cable test showed that with a resolution of 1080p/12bits, the Input/Output source can be 15/10 meters away. And finally the CAT6 cable test showed that with a resolution of 1080p/12bits, the Input/Output source can be 20/20 meters away
Brand:
Cypress Technology
Product Type:
HDMI/Cat5 Splitter
Specifications
Audio Format:
LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master
Maximum Operating Temperature:
+40°C
Colour:
Silver
Supported Signals:
VGA to SXGA
Power Rating:
4.1W
Chassis Material:
Metal
Applications:
Home Entertainment Integration, Multi-Task Project Presentation, Showroom Display, Advertising Display Control, System Installation Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Resolution:
VGA to SXGA (1280x1024), 480i to 1080pixels
HDCP Compliance Type:
1.1
Colour Depth:
10bits, 12bits

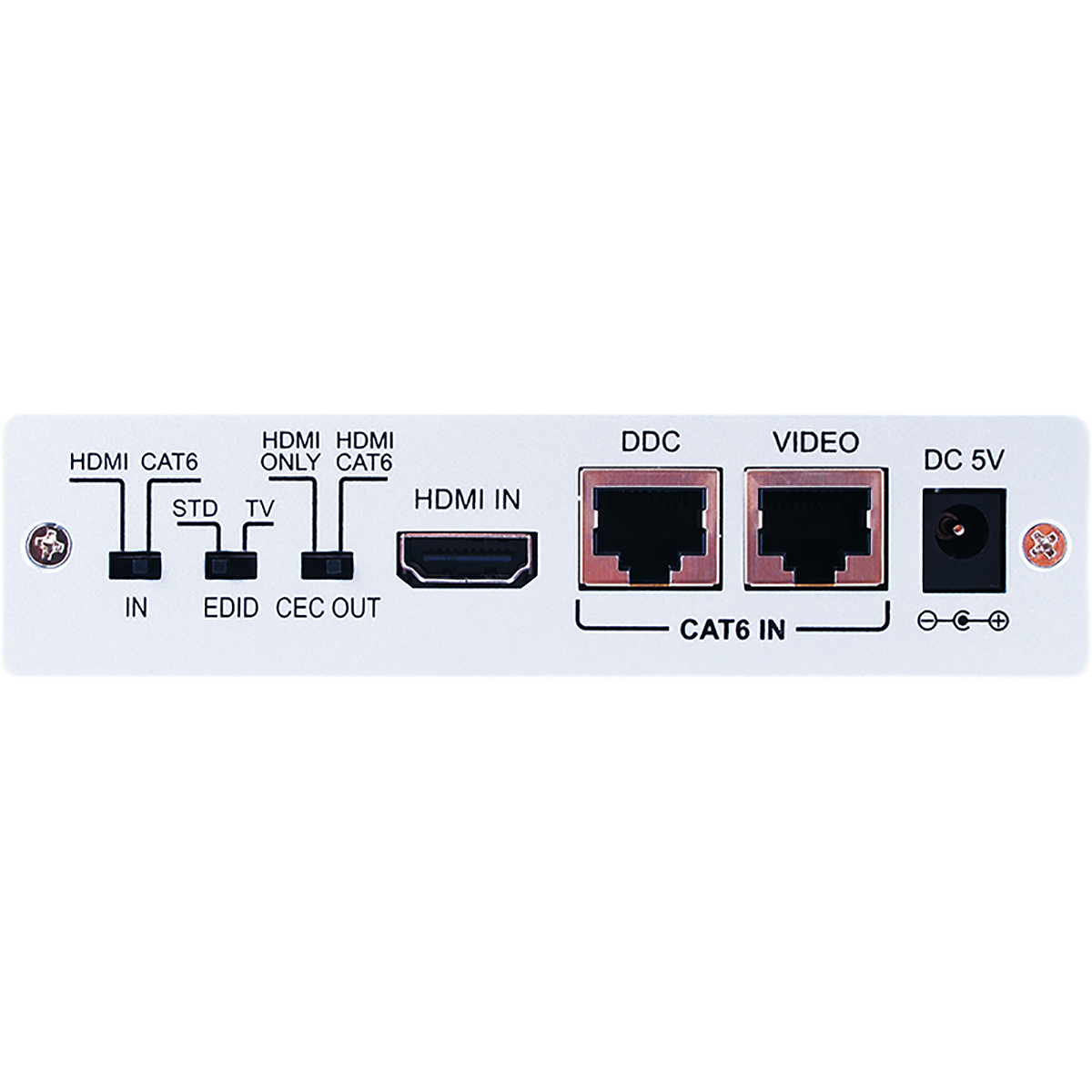

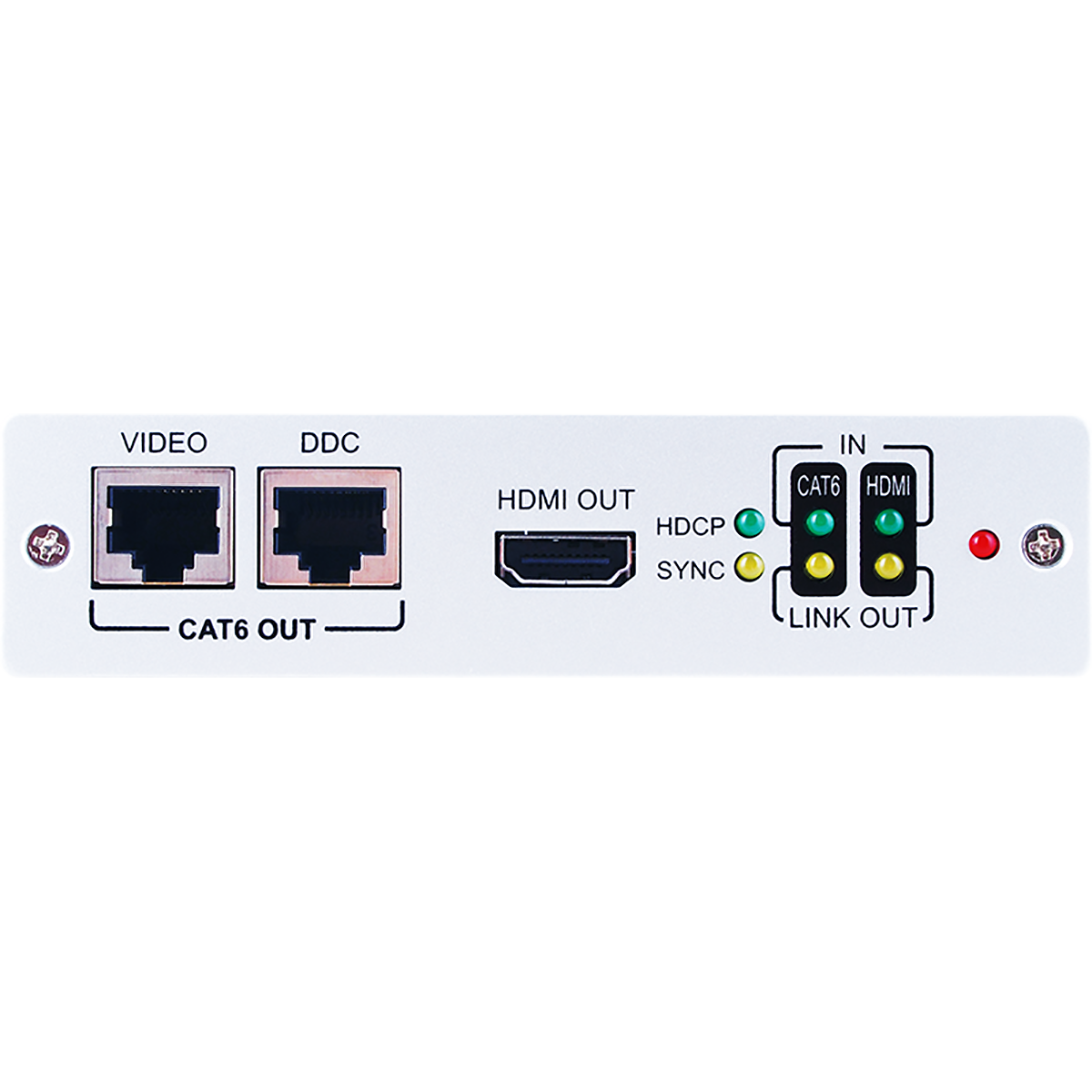

Inputs and Ports
Connector Type:
HDMI, CAT6
Number of Ports:
4
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
21.5cm
Depth:
12.3cm
Height:
3cm
Weight:
365g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
