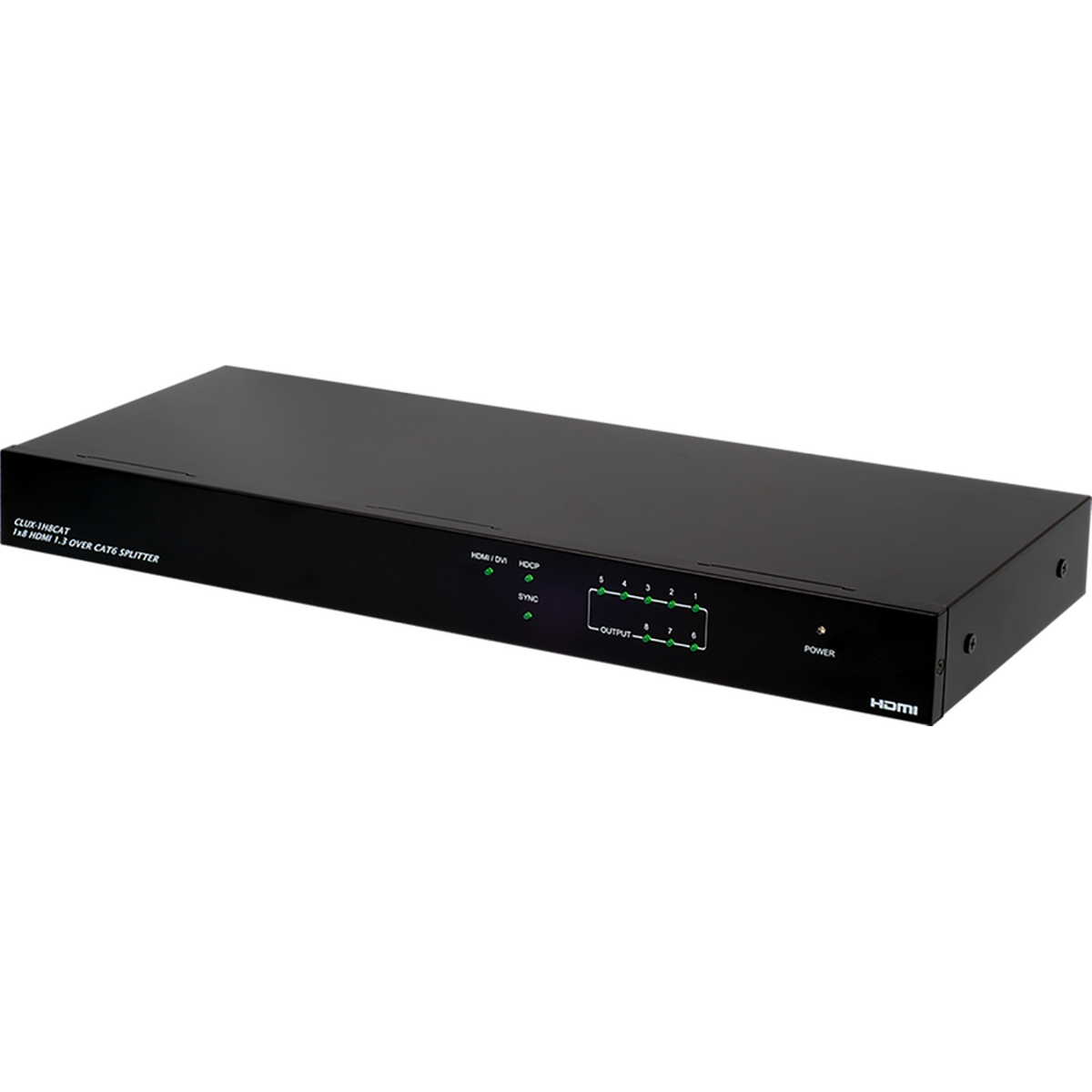

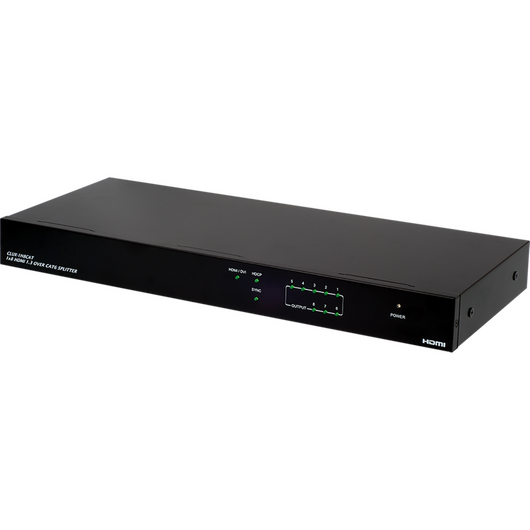

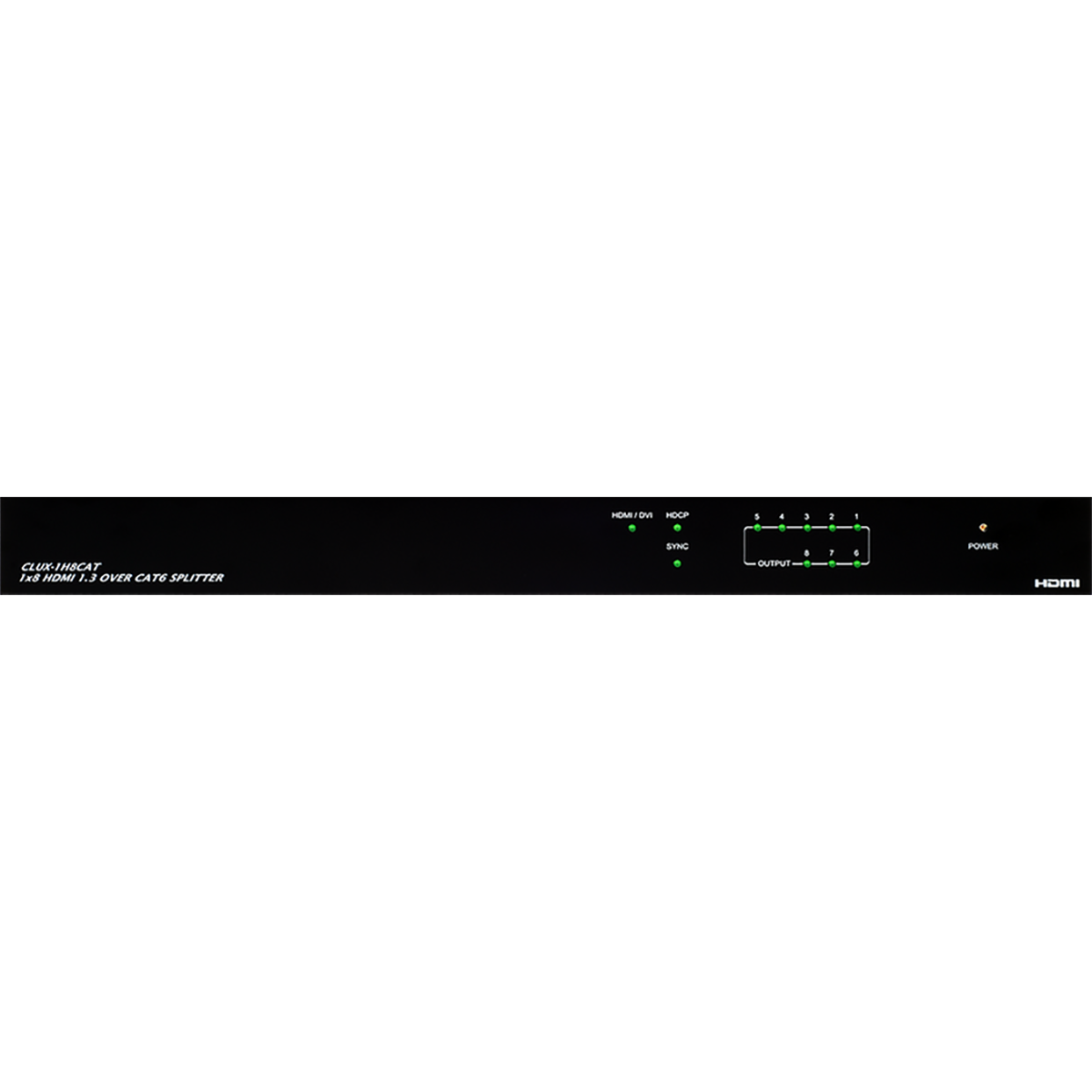

CLUx-1H8CAT 1 by 8 HDMI to CAT 6 V1.3 Splitter
Please sign in so that we can notify you about a reply
The 1 by 8 HDMI to CAT6 1.3 splitter when used with CAT6 to HDMI receivers it will allows user to distribute a HDMI source through CAT6 cable over 45 mters. This solution provides a direct input of one HDMI to a looped output of HDMI and 7 CAT6 outputs – a smart way to link and display a single source to 8 different screens simultaneously. Alternatively, the HDMI output can also be treated as an extender to connect to another HDMI splitter or cascade with other unit in multiple layers. This unit allows user to transmit HDMI signal via CAT6 without compression over long distance. The HDMI to CAT6 splitter also incorporates functions like EDID, System Reset, Deep color and IR systems.
Features
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
- Master Audio transmission (32-192kHz Fs sample rate)
- Supports a wide range of PC and HDTV resolutions from VGA to SxGA
- (1280x 1024) and 480i to 1080p
- Selects EDID from TV mode or STD mode (this splitter)
- Deep color setting of 8 bit or 12 bit
- IR remote control
- System Reset function
- EC Bypass
Brand:
Cypress Technology
Product Type:
HDMI Splitter
Specifications
Audio Format:
LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master
Maximum Operating Temperature:
+40°C
Colour:
Black
Supported Signals:
VGA to SXGA
Power Rating:
20W
Chassis Material:
Metal
Applications:
One HDMI Extension Source with Multi CAT6 to HDMI Displays and One HDMI Loop through Output Home Entertainment Integration, Multi-Task Project Presentation, Showroom Display, Advertising Display Control, System Installation Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
IR Receiver Cable
Performance
Resolution:
VGA to SXGA (1280x1024), 480i to 1080pixels
HDMI Compliance Type:
1.3
HDCP Compliance Type:
1.1
Colour Depth:
12bits
Frequency Rating:
2.25MHz (Video)
Inputs and Ports
Connector Type:
HDMI, CAT6
Number of Ports:
9
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
43.6cm
Depth:
16cm
Height:
4.4cm
Weight:
2130g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
