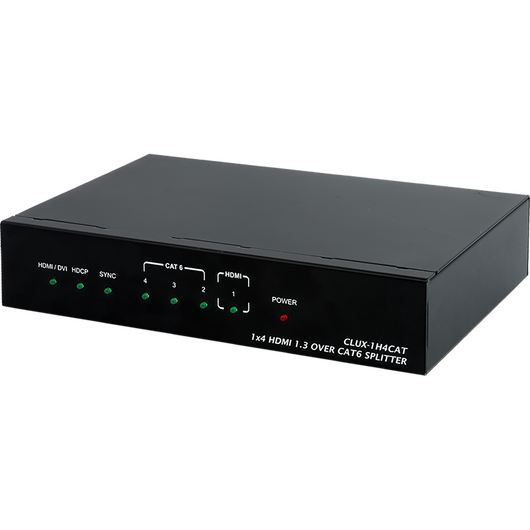

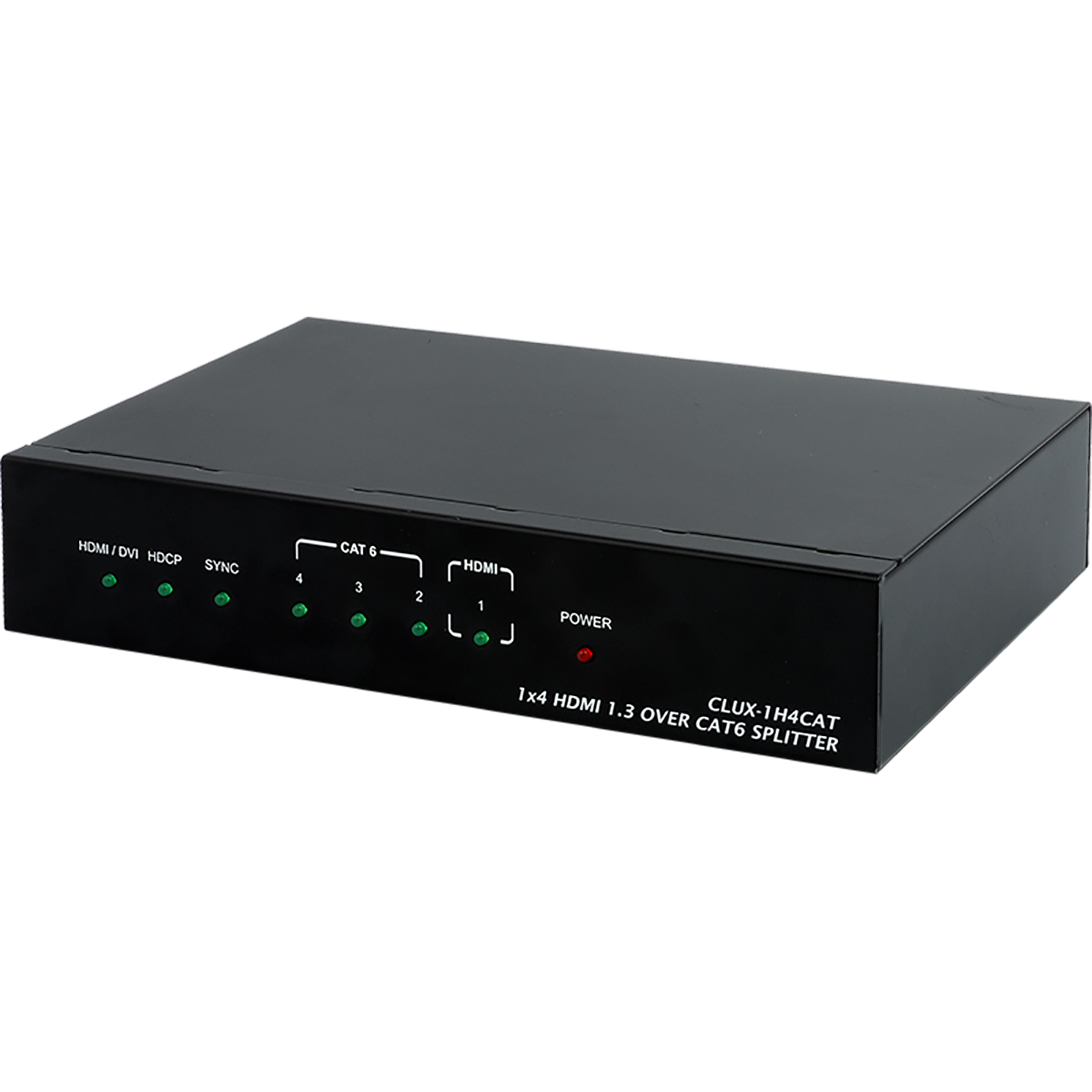

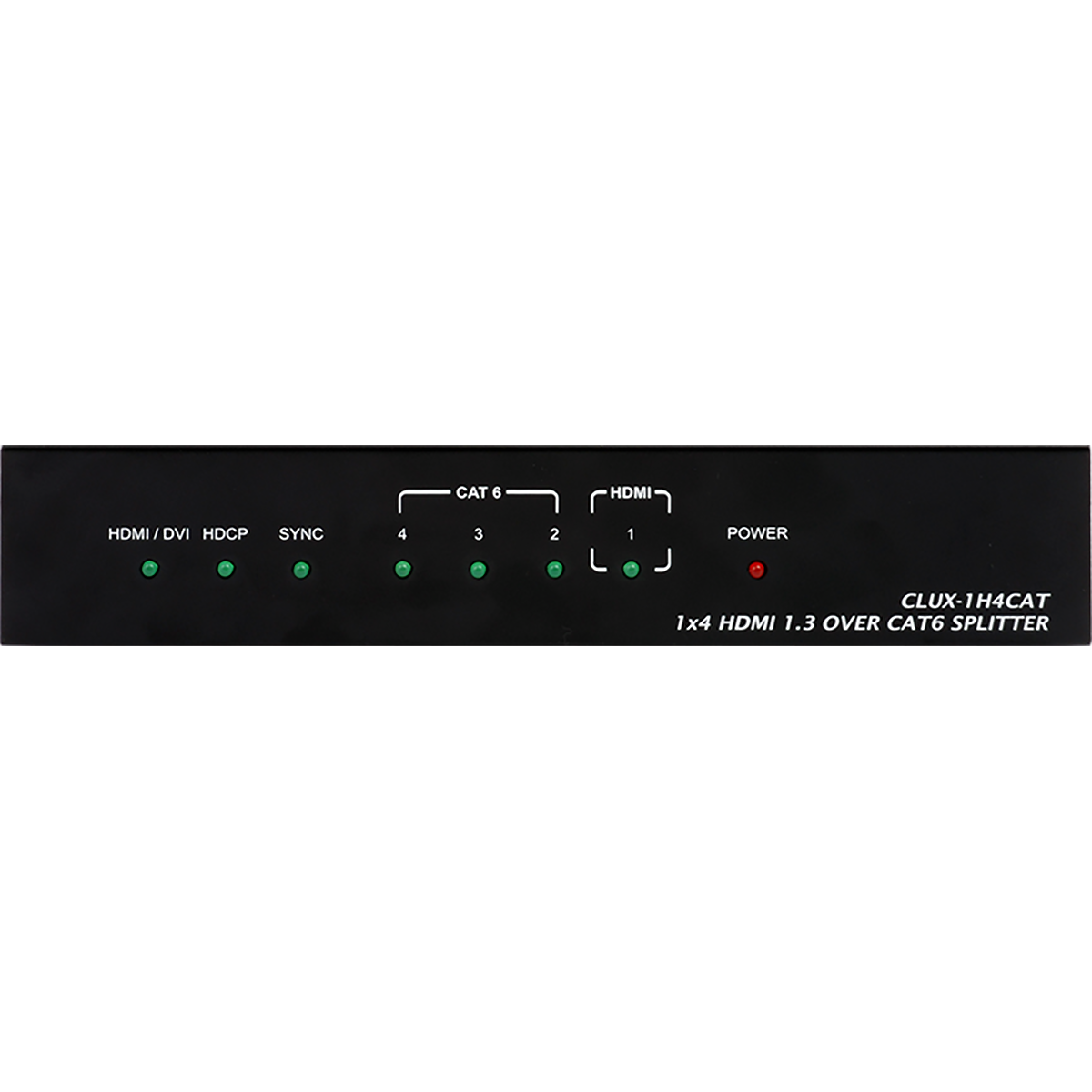

CLUx-1H4CAT 1x4 HDMI to Dual CAT6/7 Splitter
Please sign in so that we can notify you about a reply

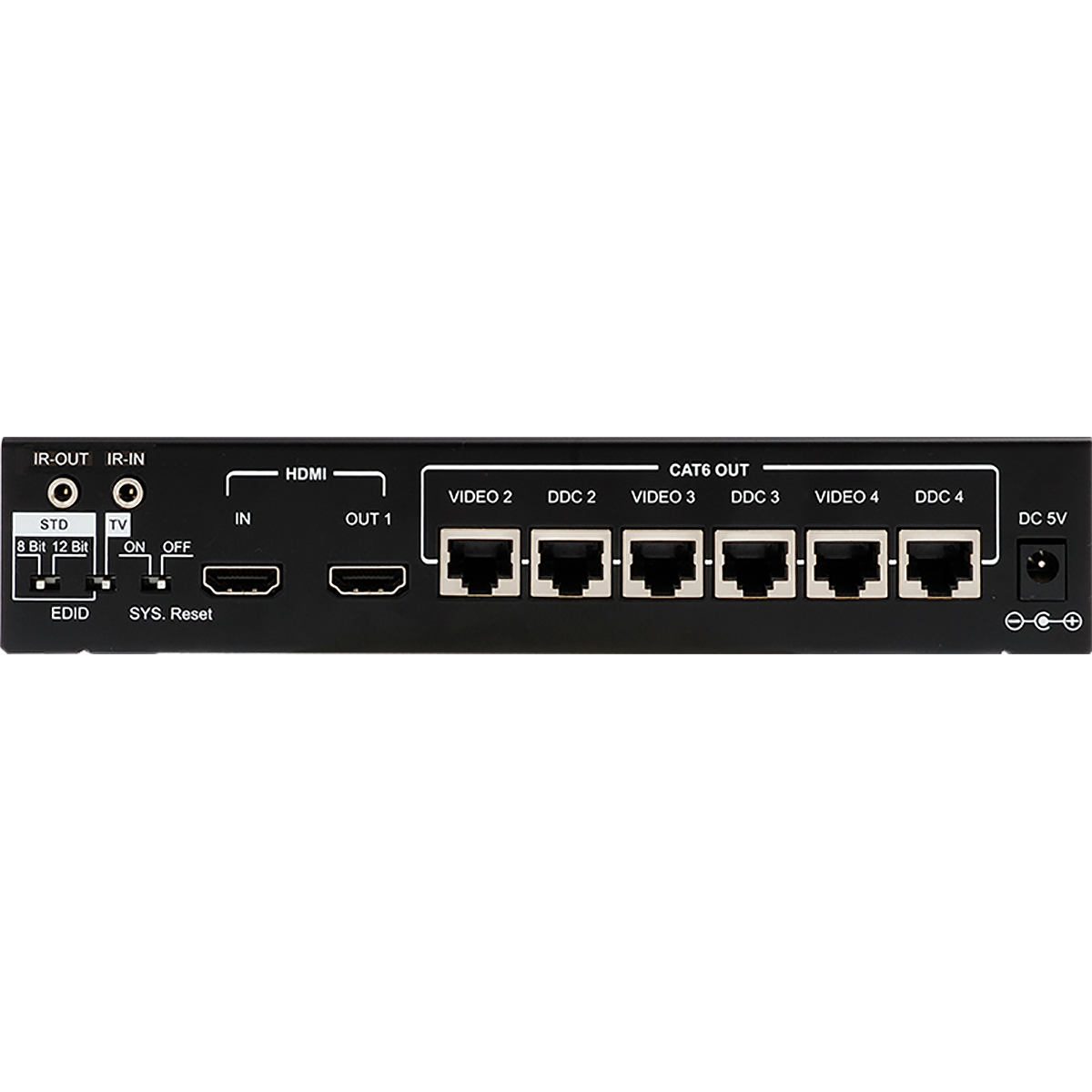

The 1 by 4 HDMI to CAT6 splitter when used with CAT6 to HDMI receivers it will allows user to distribute a HDMI over 45 meters through CAT6 cables over 45 meters This solution provides a direct input of one HDMI to a looped output of HDMI and 3 CAT6 outputs – a smart way to link and display a single source to 4 different screens simultaneously. Alternatively, the HDMI output can also be treated as an extender to connect to another HDMI splitter or cascade with other unit in multiple layers. This unit allows user to transmit HDMI signal via CAT6 without compression over long distance. The HDMI to CAT6 splitter also incorporates functions like EDID, System Reset, Deep color and IR systems.
Features
- HDMI, HDCP1.1 and DVI1.0 compliant
- Deep Color video up to 12-bit, 1080p@60Hz
- Allows users to link up to four displays
- HDCP keysets allows each output to work independently when connecting to a HDMI display
- Supports DVI source and DVI display by using HDMI to/from DVI adaptor cable
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32-192 kHz Fs sample rate)
- Supports a wide range of PC and HDTV resolutions from VGA to SxGA (1280x1024) and 480i to 1080p
- Selects EDID from TV mode or STD mode (this splitter)
- Deep color setting of 8-bit or 12-bit
- IR remote control
- System Reset function
- CEC Bypass
Brand:
Cypress Technology
Product Type:
HDMI Splitter
Specifications
Audio Format:
LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master
Maximum Operating Temperature:
+40°C
Colour:
Black
Supported Signals:
VGA to SXGA
Power Rating:
12W
Chassis Material:
Metal
Applications:
Connect to Three HDMI Displays or Plug into another CAT6 Splitter to Reach Several More, Integrate Home Entertainment System, Multi-Task Project Presentations, Showroom Displays, Advertising Display Control, System Installation Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
IR Receiver Cable
Performance
Resolution:
VGA to SXGA (1280x1024), 480i to 1080pixels
HDMI Compliance Type:
1.3
HDCP Compliance Type:
1.1
Colour Depth:
12bits
Frequency Rating:
2.25MHz (Video)
Inputs and Ports
Connector Type:
HDMI
Number of Ports:
5
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
21.5cm
Depth:
13.3cm
Height:
4.3cm
Weight:
900g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
