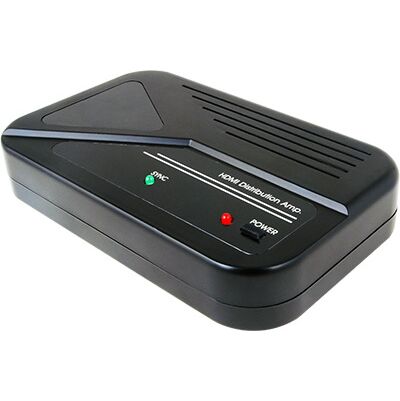

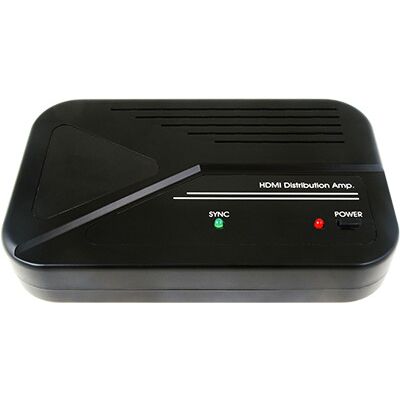

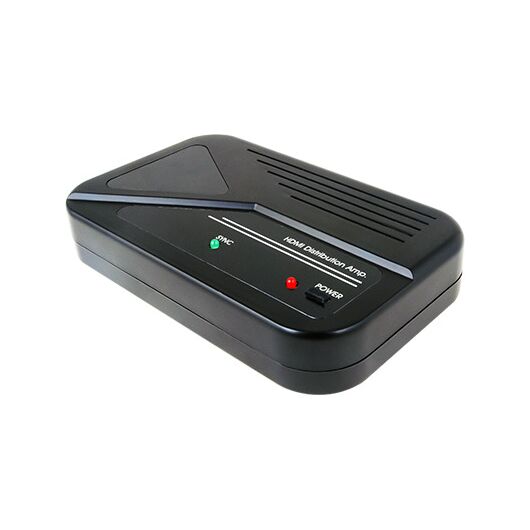

CLUx-12E 1x2 HDMI Splitter
Please sign in so that we can notify you about a reply
The HDMI Distribution Amplifier Series is the most advanced solution to HDMI signal distribution. Each product in this series is compatible with HDMI specifications, a cutting-edge technology which defines the supports to transfer Deep Color (10-bit and 12-bit) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz (6.75Gbps). Besides splitting and distributing, the HDMI DA series also does signal amplification and equalization, so as to provide high performance I/O of audio and video.
- HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant
- Deep Color video up to 12-bit, 1080p@24/60 Hz

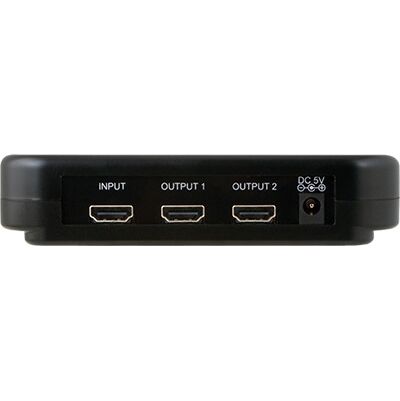

- One HDMI source which connect up to two HDMI displays simultaneously
- HDCP keysets allows each output to work independently when connecting to an HDMI display
- Splits a HDMI source up to two outputs without signal loss
- Supports DVI source and DVI display by using HDMI to/from DVI adaptor cable
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32-192kHz Fs sample rate)
- Supports a wide range of PC and HDTV resolutions, from VGA to UXGA and 480i to 1080p
- HDMI cable distance test with 1080p/8bits resolution the Input/Output distance can run up to 15/15 meters
- HDMI cable distance test with 1080p/12bits the Input/Output distance can run up to 10/15 meters
- Supports EDID functionality
- Supports xvYCC
- Supports CEC bypass
Brand:
Cypress Technology
Product Type:
HDMI Splitter
Specifications
Maximum Operating Temperature:
+40°C
Colour:
Black
Supported Signals:
VGA to UXGA
Minimum Operating Temperature:
0°C
Includes:
HDMI Version 1.3 Signal Distributor with One Input and Two Output
Performance
Resolution:
From VGA to UXGA and 480i to 1080pixels
Frequency Rating:
60Hz
Inputs and Ports
Connector Type:
HDMI
Dimensions
Length:
9cm
Width:
14.5cm
Height:
3.2cm
Weight:
160g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
