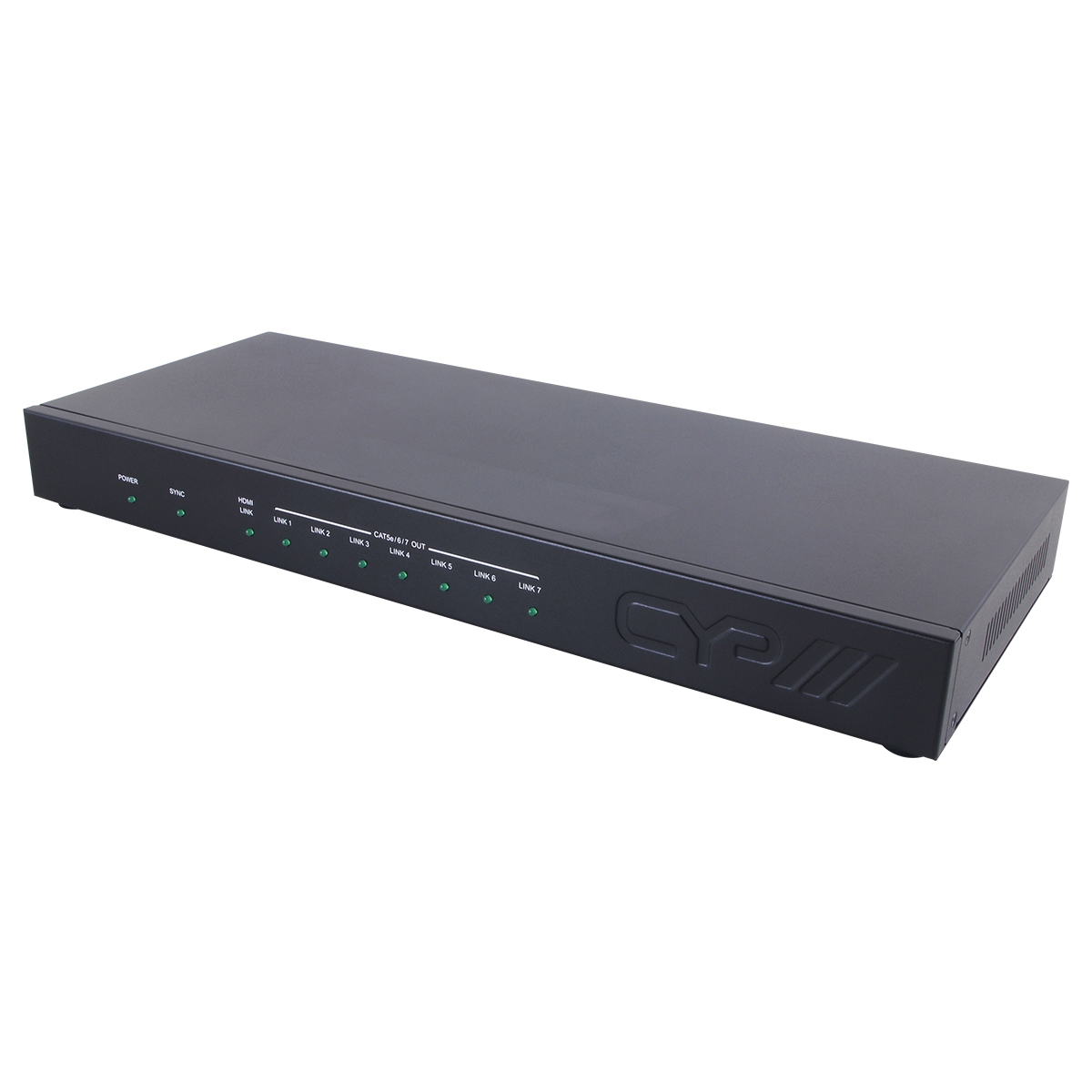

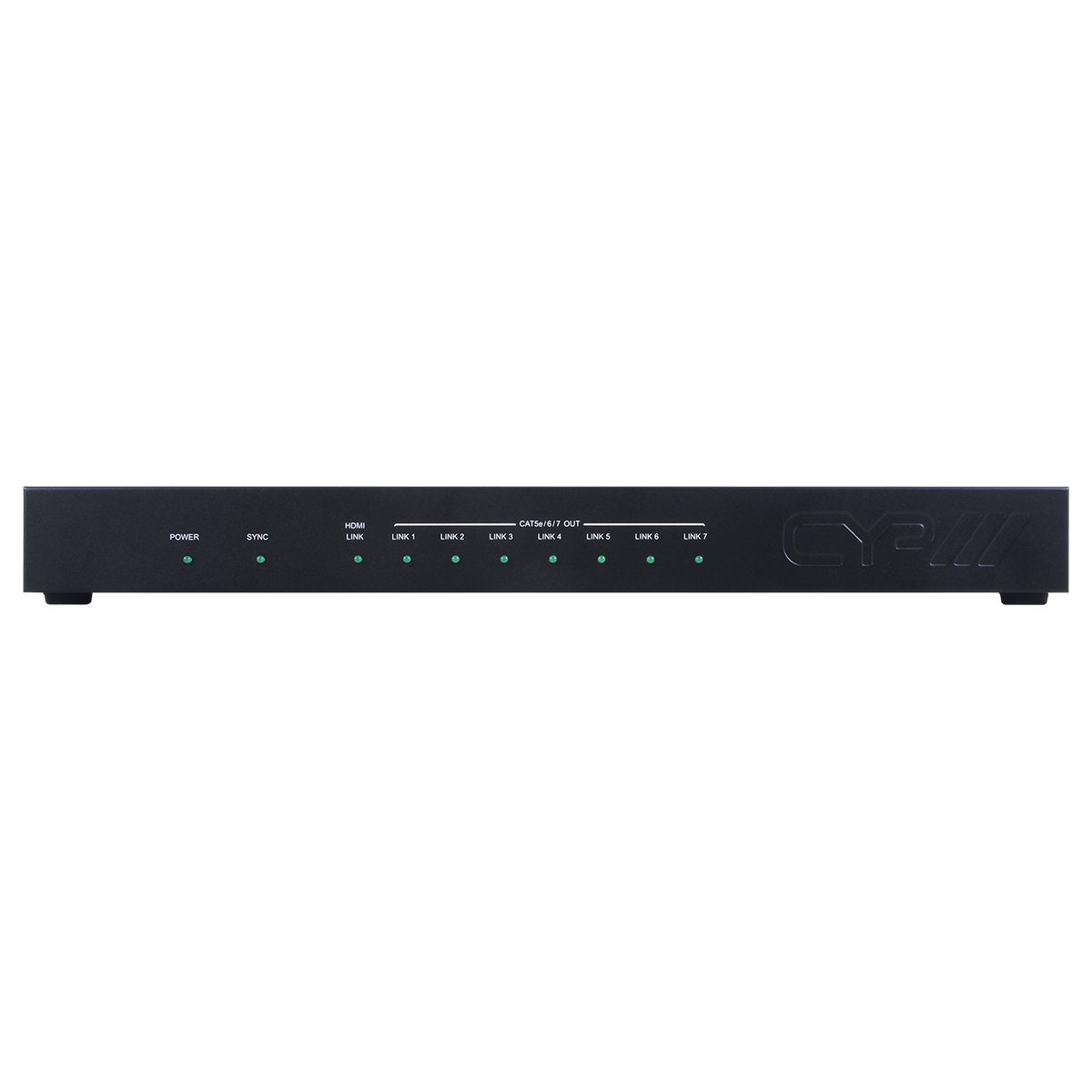

CHDBT-1H7CPL 1 by 8 HDMI over HDMI & CAT5e/6/7 Splitter
Please sign in so that we can notify you about a reply

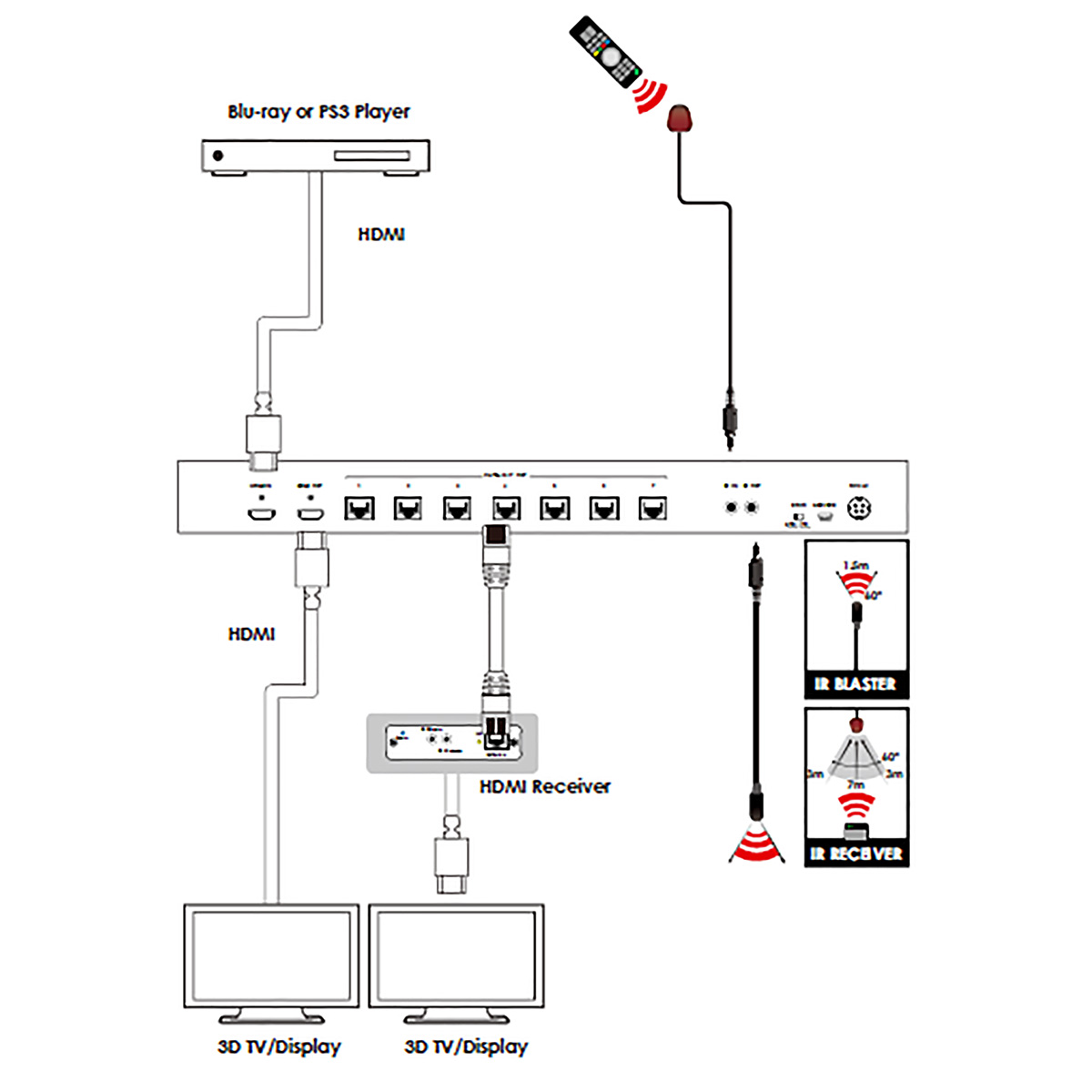

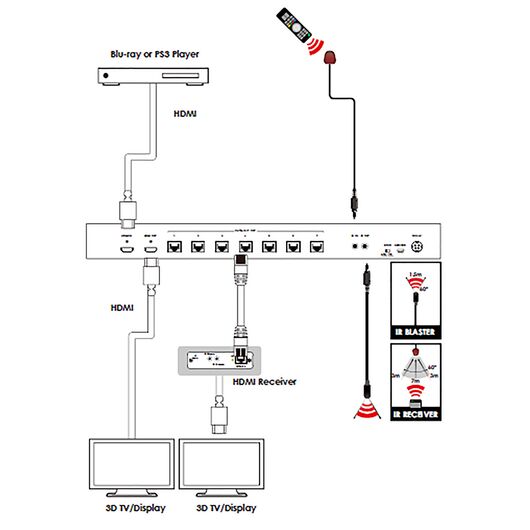

The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single HDMI input and 2-way IR control up to seven CAT5e/6/7 outputs and includes a simultaneous HDMI bypass output. It supports resolutions up to 4K×2K timing, 3D and multi-channel digital audio formats (such as LPCM 7.1CH, Bitstream, HD Bitstream). The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The CAT5e/6/7 outputs can be connected to HDBaseT to HDMI Receivers to extend the operating distance up to 70 meters with Power Over Cable feature.
Features
- Simultaneous HDMI and CAT5e/6/7 outputs
- Supports data rate from 250Mbps up to 3Gbps
- Supports up to 4096x2160@60Hz YUV 4:2:0 8bit
- Supports LPCM 7.1CH, Bitstream, HD Bitstream transmission (32-192kHz sample rate)
- Supports selection of Standard or TV EDID settings
- Supports Power over Cable (PoC) feature
- Supports Bidirectional IR control
- The 3D signal display follow by display TV’s EDID
Brand:
Cypress Technology
Product Type:
HDMI Over HDMI & CAT5e/6/7 Splitter
Specifications
Audio Format:
LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master
Maximum Operating Temperature:
+40°C
Colour:
Black
Power Rating:
62.7W
Chassis Material:
Metal
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Simultaneous HDMI Bypass Output
Performance
Resolution:
Up to 4Kx2K (3840x2160@24Hz/25/30Hz/4096x2160@24Hz/4K2K@60Hz YUV_420)
HDMI Compliance Type:
2.0a (DVI 1.0)
HDCP Compliance Type:
2.x

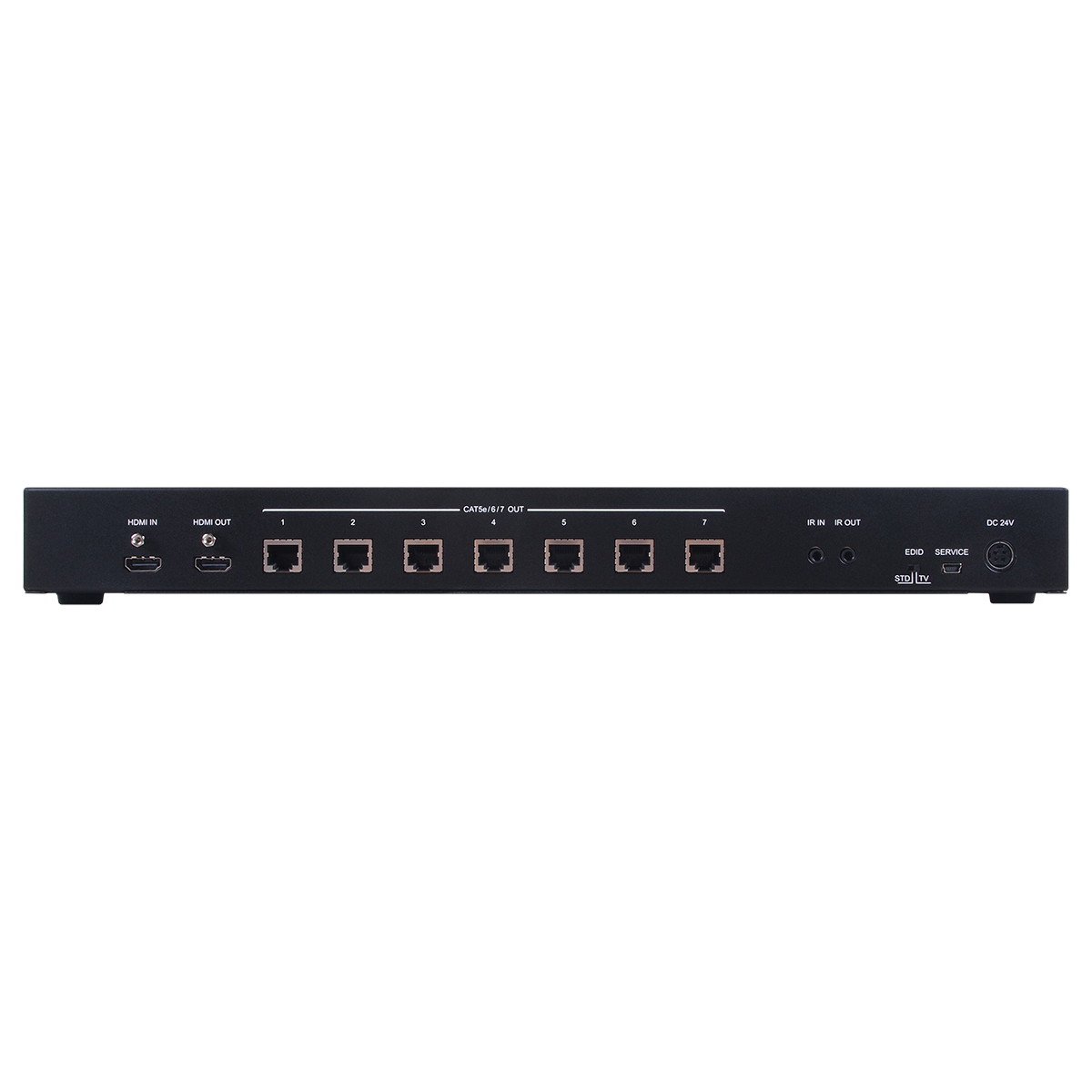

Inputs and Ports
Connector Type:
CAT5e/6/7
Number of Ports:
12
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
43.2cm
Depth:
17.4cm
Height:
4.4cm
Weight:
2126g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
