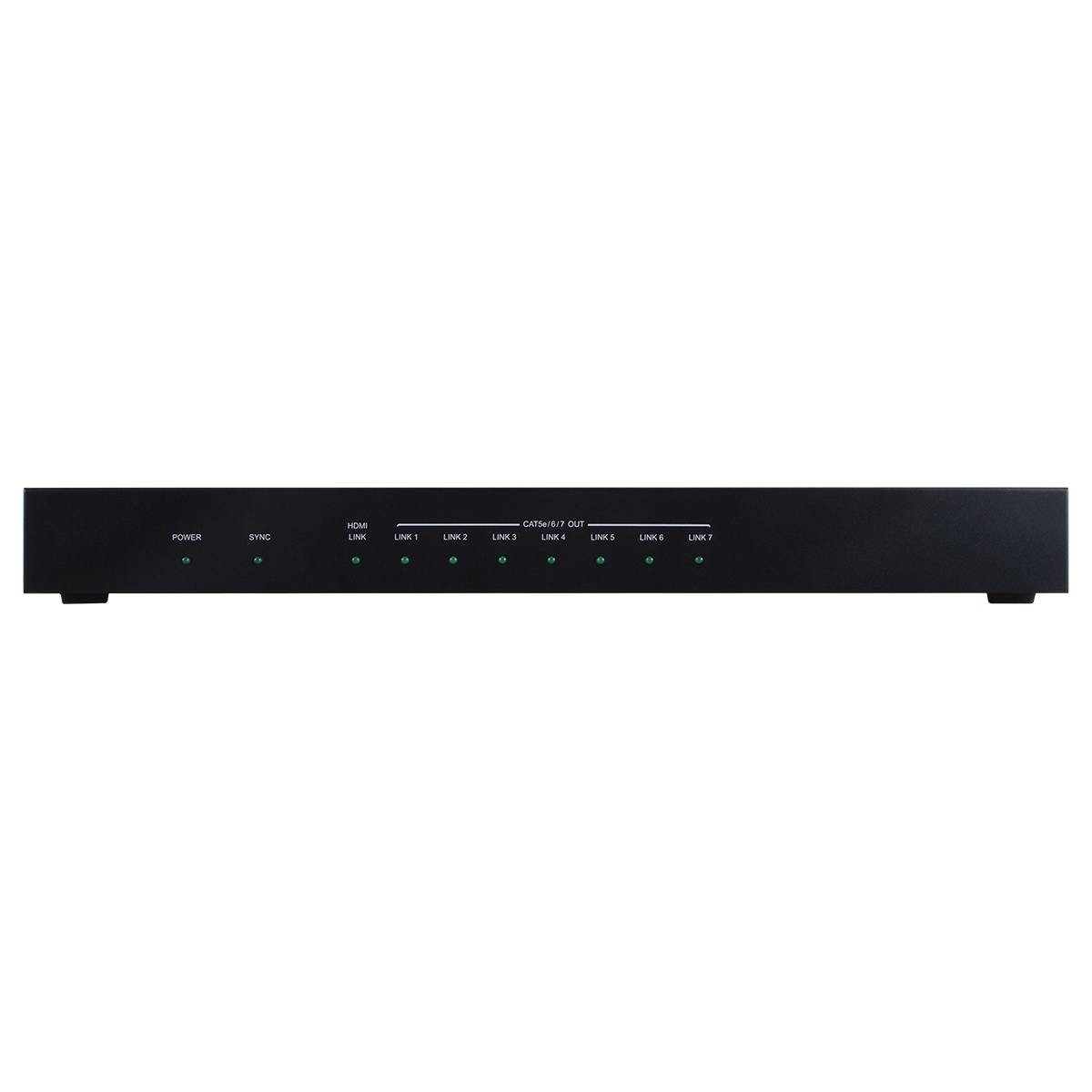

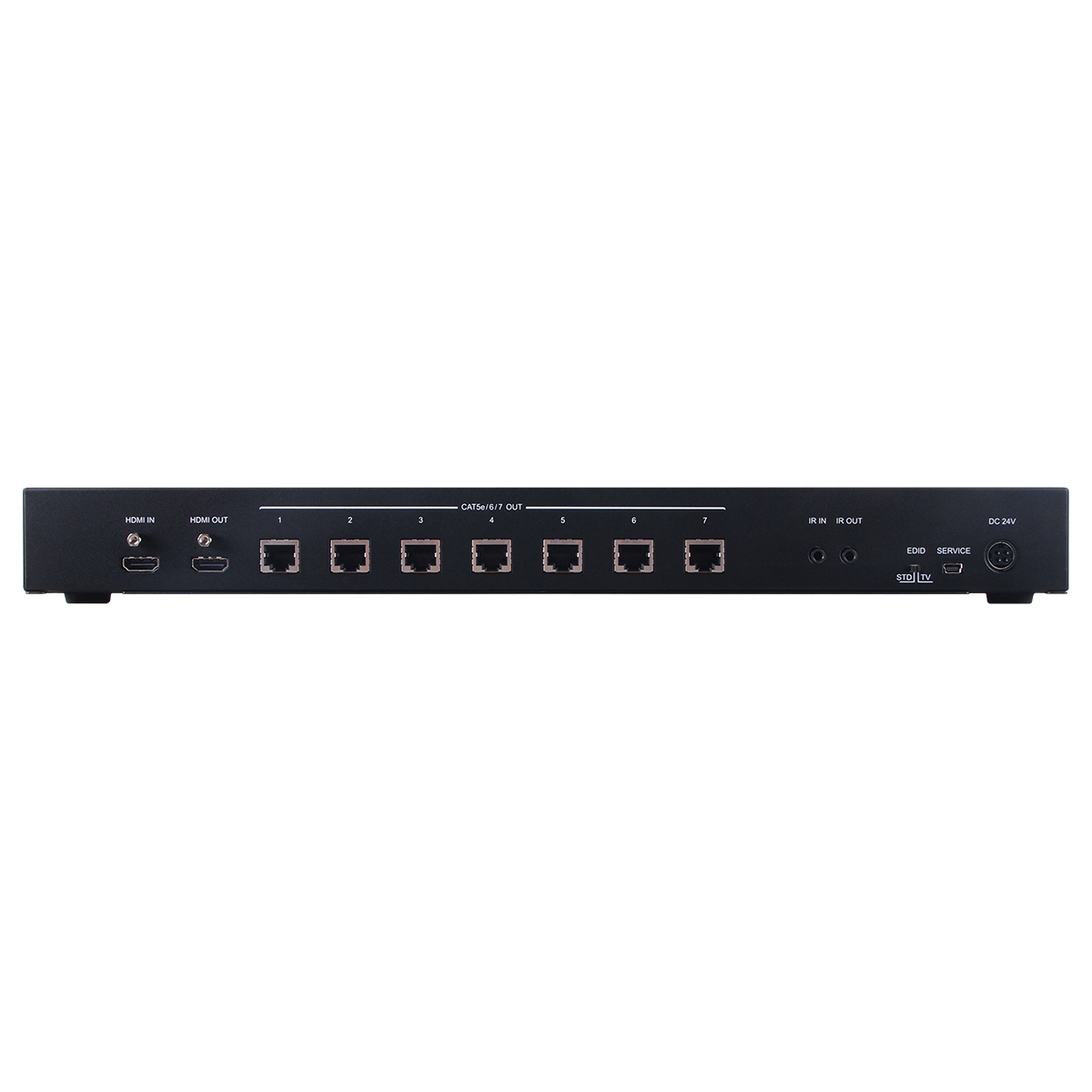

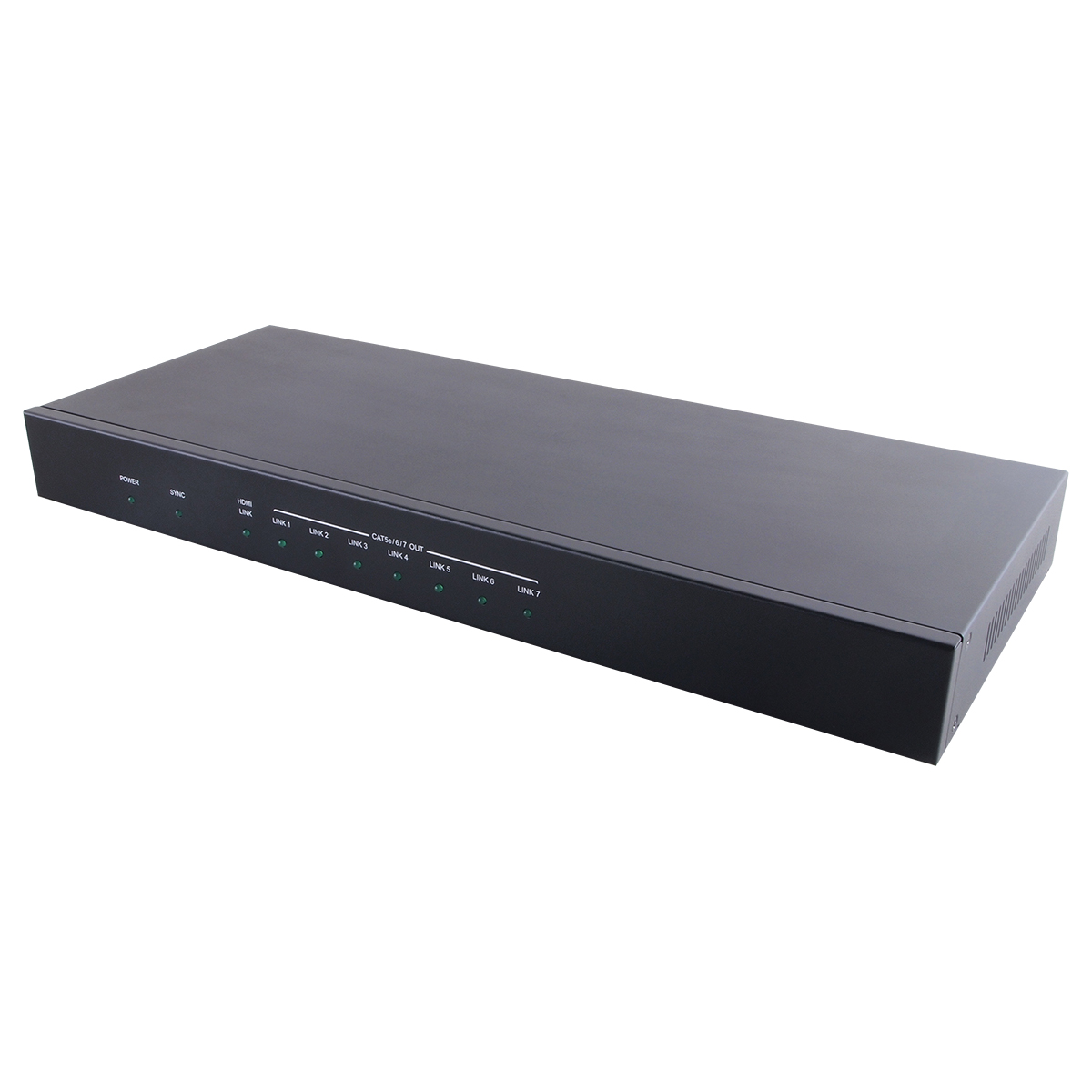

CHDBT-1H7CL 1 by 8 HDMI over HDMI & CAT5e/6/7 Splitter
Please sign in so that we can notify you about a reply

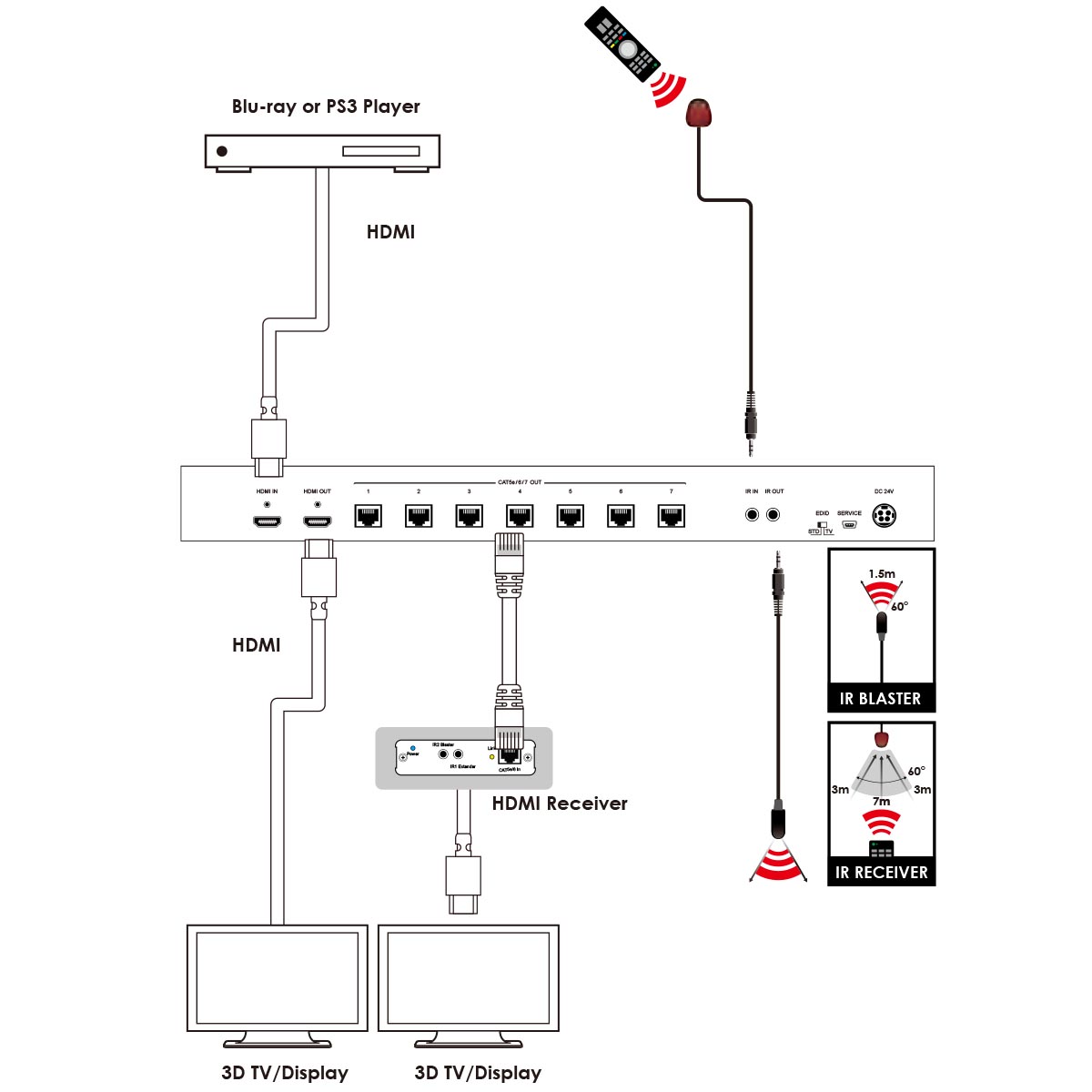

The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single HDMI input and seven HDBaseT outputs and one HDMI mirrored output. It supports resolutions up to 4K@60 4:2:0 timing, 3D and 7.1 channel digital audio formats (such as LPCM 7.1CH, Bitstream, HD Bitstream. The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The HDBaseT outputs can be connected to CAT5e/6/7 to HDMI Receivers to extend the operating distance up to 70 meters.
Features
- HDMI with 3D & 4K@30 supported, HDCP and DVI compliant
- HDMI and HDBaseT outputting mirrored content
- Supports data rate up to 10.2 Gbps
- Supports LPCM 7.1CH, Bitstream, HD Bitstream transmission (32-192kHz sample rate)
- Supports distances up to 70 meters through CAT5e/6/7 cables
- EDID selection between internal EDID or EDID form output monitor
- Supports Bidirectional IR transmit
- Support 3D signal content with 3D equipped output monitor
Brand:
Cypress Technology
Product Type:
HDMI Over HDMI & CAT5e/6/7 Splitter
Specifications
Audio Format:
LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master
Maximum Operating Temperature:
+40°C
Colour:
Black
Power Rating:
32W
Chassis Material:
Metal
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Simultaneous HDMI Bypass Output
Performance
Resolution:
1080p Full HD, 4Kx2K Timing, 3D
HDMI Compliance Type:
2.0
HDCP Compliance Type:
2.x
Inputs and Ports
Connector Type:
CAT5e/6/7
Number of Ports:
12
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
43.2cm
Depth:
17.3cm
Height:
4.9cm
Weight:
2122g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
