CHDBT-1H4CPLV UHD+ 1 by 4+1 HDBaseT/HDMI Splitter
Please sign in so that we can notify you about a reply

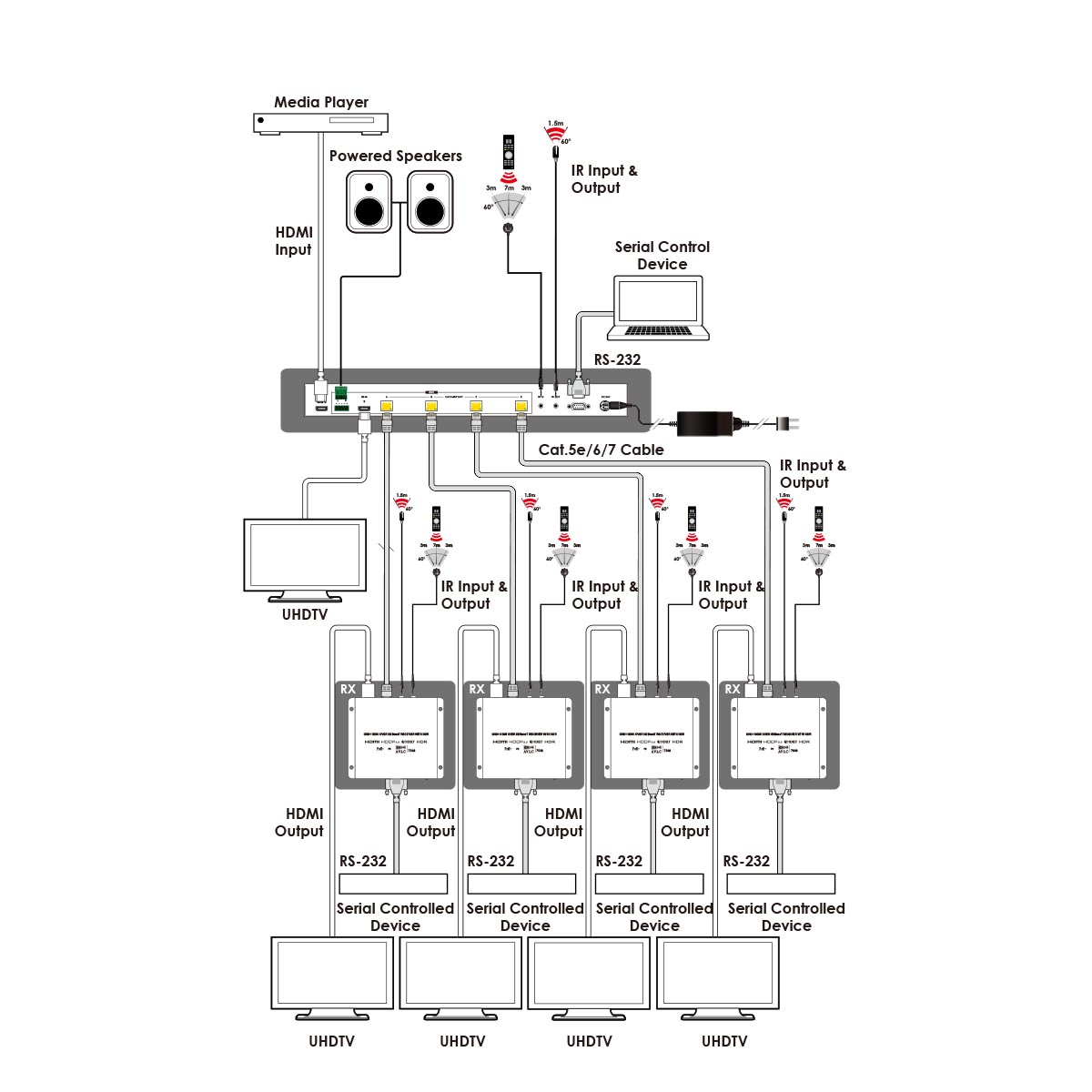

This 1×4+1 4K UHD HDMI Splitter provides an advanced solution for splitting and distributing a single HDMI input (up to 4K@60Hz w/ HDMI 2.0 & HDCP 2.x) to 4 HDBaseT outputs as well as to a single HDMI output with analog stereo audio breakout. The UHD source may be distributed to any of four HDBaseT Receivers via a single Cat.5e/6/7 cable (up to 70m at 1080p or up to 40m at 4K). Despite HDBaseT’s 10.Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be processed and extended by the use of AVLC (Adaptive Visually Lossless Compression) when connected to compatible AVLC Receivers. If the connected HDBaseT Receiver can’t support AVLC, 4K@60Hz RGB/YUV 4:4:4 signals will be converted to YUV 4:2:0 or downscaled to 1080p based on the detected EDID on each output.
Features
- Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output, Deep Color input and output up to 12-bit. and 10-bit and 12- bit HDR (High Dynamic Range) input/output
- Supports automatic 4K@60Hz RGB/YUV 4:4:4 to YUV 4:2:0 conversion or downscaling to 1080p for compatibility with non-AVLC HDBaseT receivers based on the detected EDID on each output
- Supports pass-through of all standard digital audio formats: 8 channel LPCM, Bitstream, and HD Bitstream. High-quality Digital to Analog audio Conversion (DAC) with local analog stereo audio breakout (LPCM 2.0 sources only)
- Comprehensive EDID management options
- HDBaseT feature support: HD Video and Audio, PoH and Control (bidirectional RS-2323 and IR pass-through)
- Supports standard PoH from the unit to connected HDBaseT receivers (compatible receivers only)
Brand:
Cypress Technology
Product Type:
1 by 4+1 HDBaseT/HDMI Splitter
Specifications
Audio Format:
LPCM (8 Channels), Bitstream, High Bit Rate Bitstream, 2VRMS S/N Ratio: >80dB (1kHz with 0dBFS)
Maximum Operating Temperature:
+40°C
Colour:
Black
Supported Signals:
UHD
Power Rating:
20.8W
Chassis Material:
Steel
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Simultaneous HDMI Bypass Output
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.x
Colour Depth:
12bits
Colour Space:
4:4:4 to 4:2:0
Inputs and Ports
Number of Ports:
9
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
43.2cm
Depth:
17.4cm
Height:
4.4cm
Weight:
906g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
