CHDBT-1H3CPL 1 by 4 HDMI over HDMI & CAT5e/6/7 Splitter
Please sign in so that we can notify you about a reply

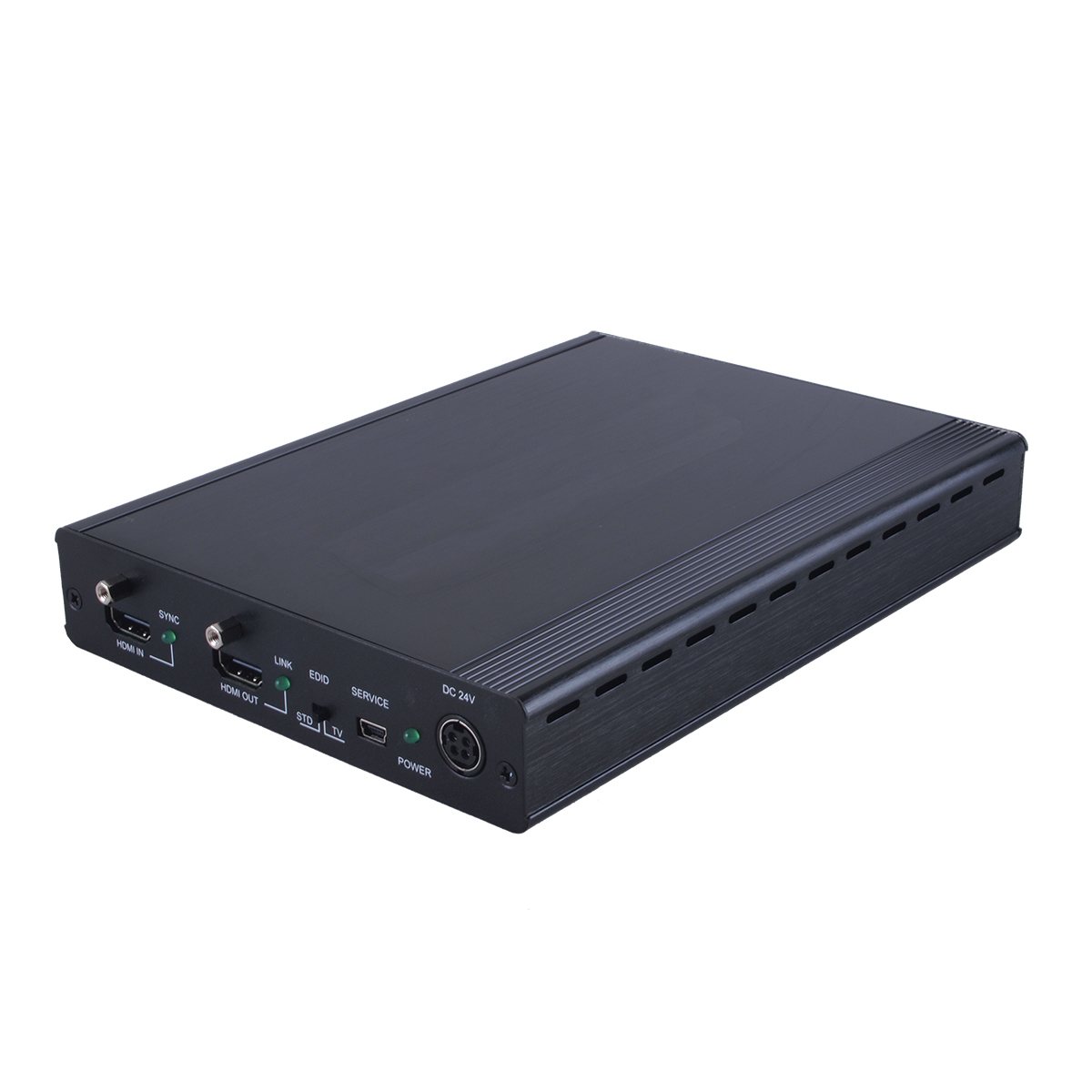

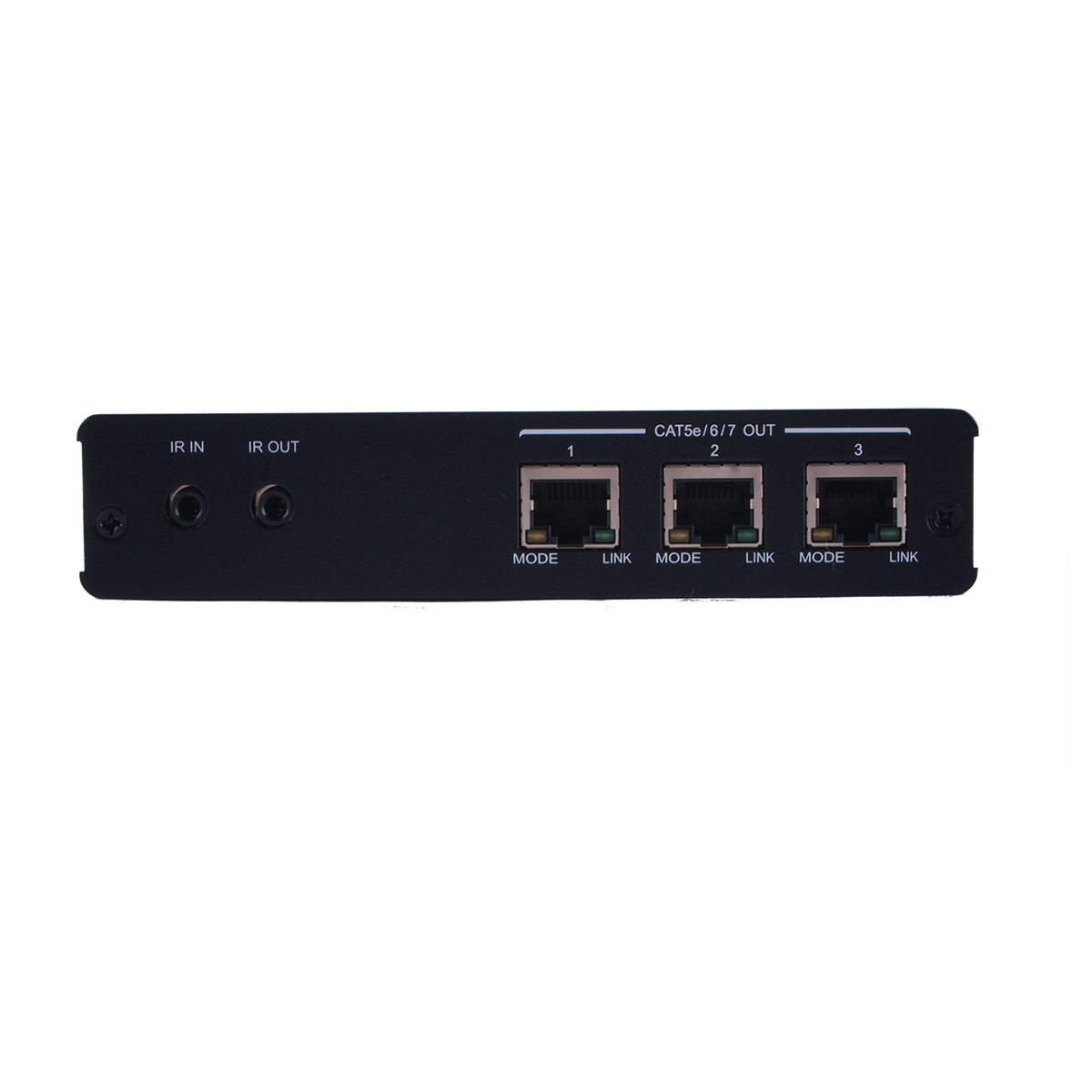

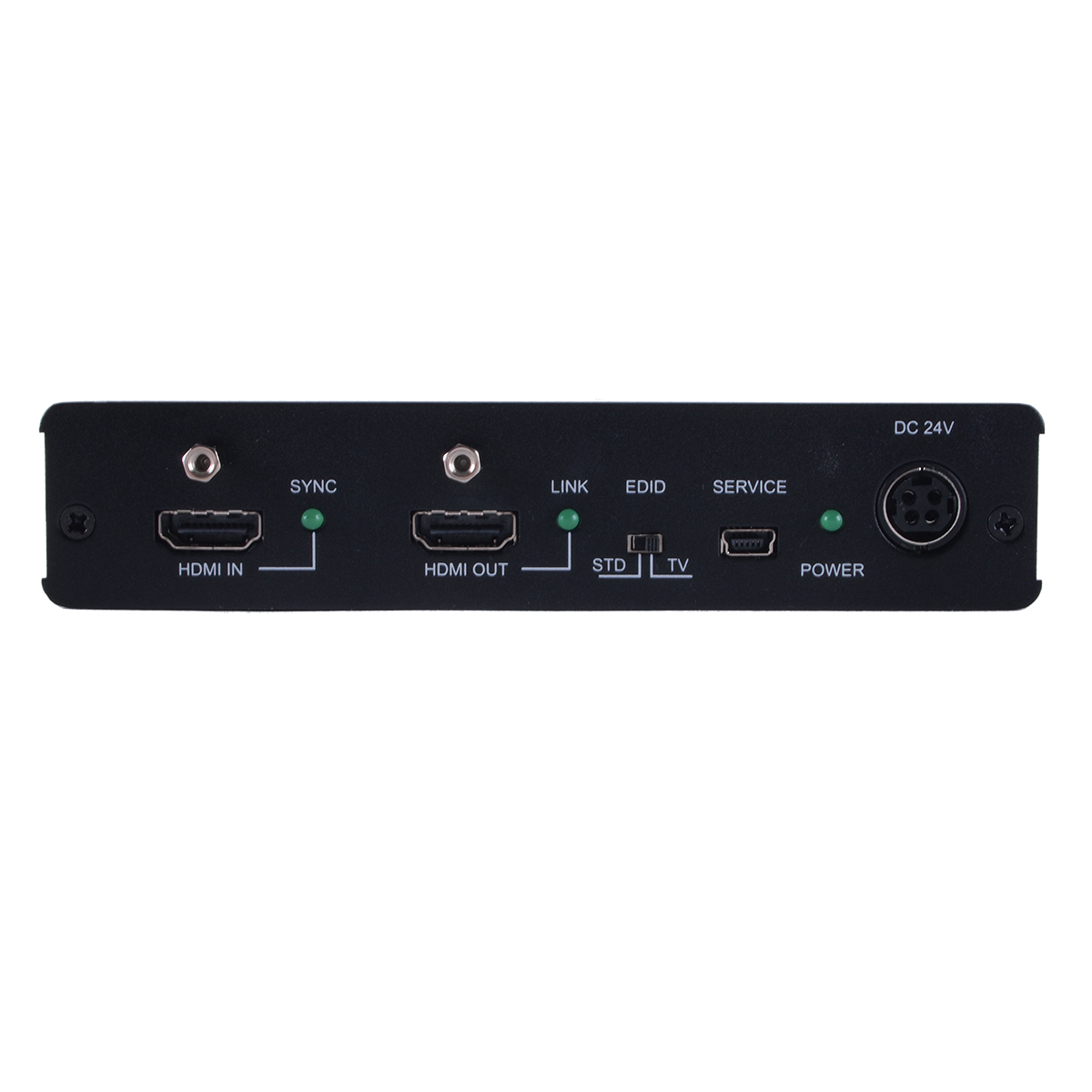

The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single HDMI input and 2-way IR control to up to three HDBaseT outputs and includes a simultaneous HDMI bypass output. It supports resolutions up to, 4Kx2K timing, 3D and multi-channel digital audio formats. The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The three HDBaseT outputs can be connected to CAT5e/6/7 to HDMI Receivers to extend the operating distance up to 70 meters with Power Over Cable feature.
Features- Simultaneous HDMI and CAT5e/6/7 outputs
- Supports data rate from 250Mbps up to 3Gbps
- Supports up to 4096x2160@60Hz YUV 4:2:0 8bit
- Supports LPCM 7.1CH, Bitstream, HD Bitstream transmission (32~192kHz sample rate)
- Supports selection of Standard or TV EDID settings
- Supports Power over Cable (PoC) feature
- Supports Bidirectional IR control
- The 3D signal display follow by display TV’s EDID
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over HDMI & CAT5e/6/7 Splitter
Audio Format:
LPCM 2.0/5.1/7.1, Bitstream, HD Bitstream
Colour:
Black
Power Rating:
33W
Chassis Material:
Metal
Includes:
Simultaneous HDMI Bypass Output
Performance
Resolution:
4096x2160pixels@60Hz 4:2:0
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.x
Inputs and Ports
Connector Type:
HDMI, CAT5e/6/7
Number of Ports:
5
Dimensions
Width:
14.5cm
Depth:
19cm
Height:
3cm
Weight:
592g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
