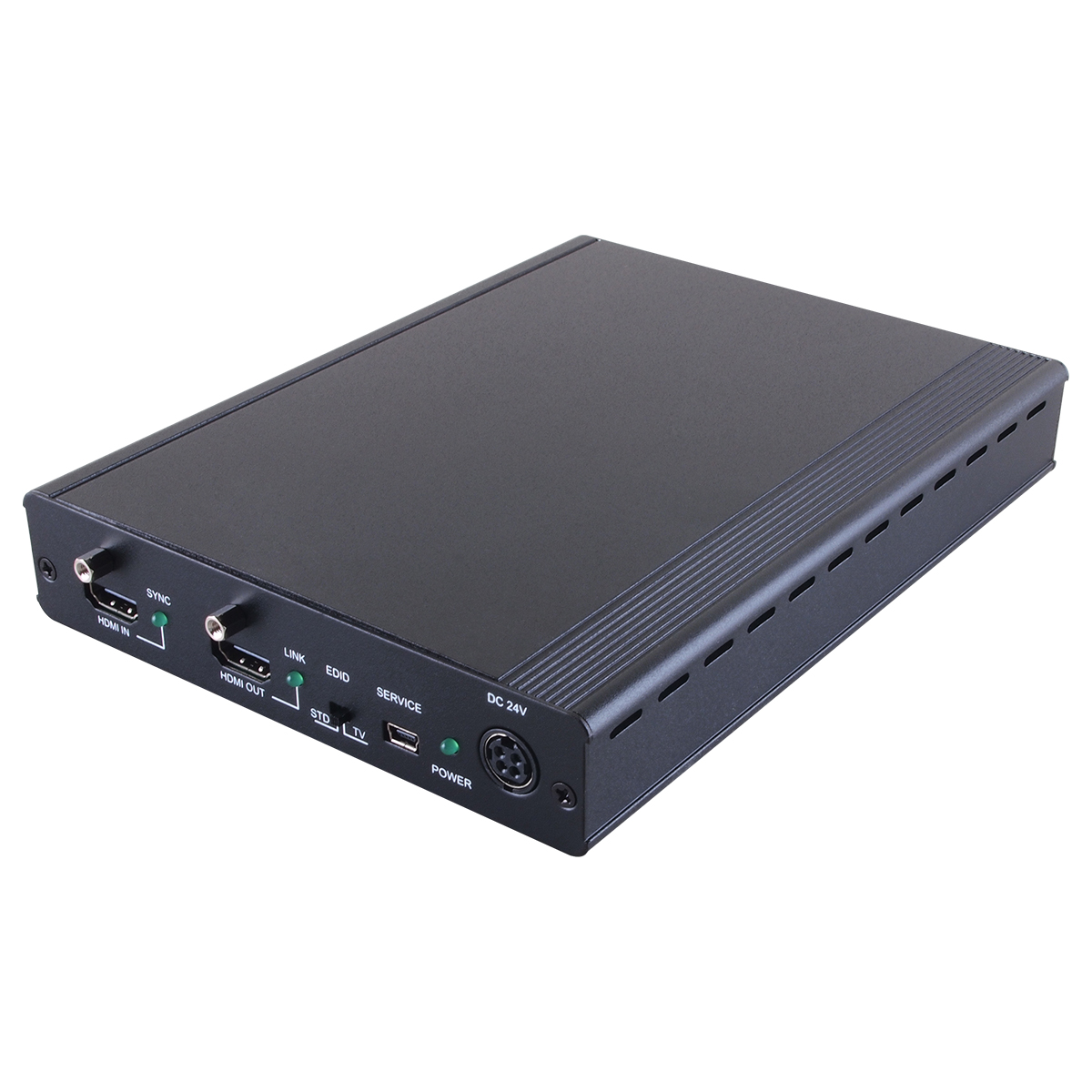

CHDBT-1H3CL 1 by 4 HDMI over HDMI & CAT5e/6/7 Splitter
Please sign in so that we can notify you about a reply

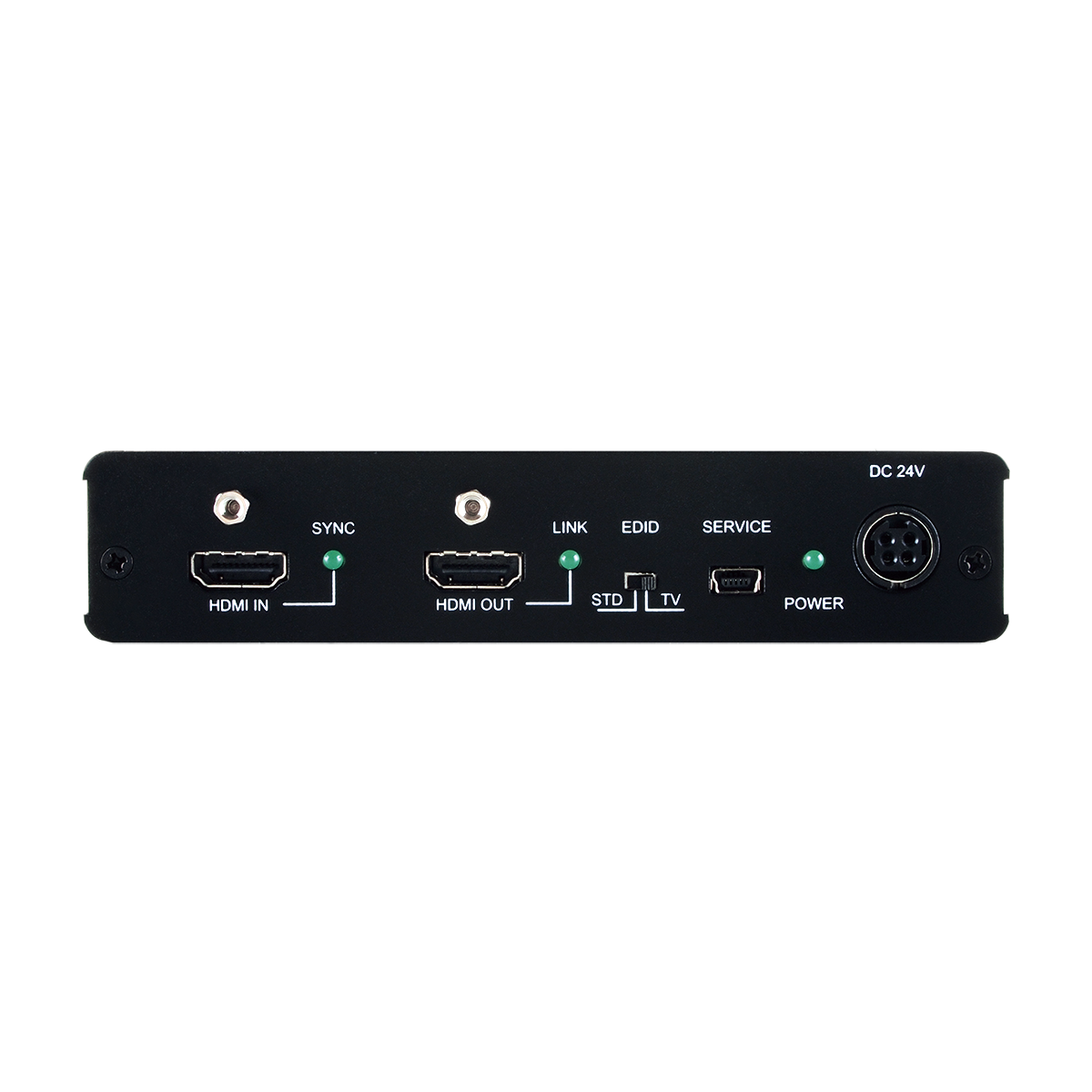

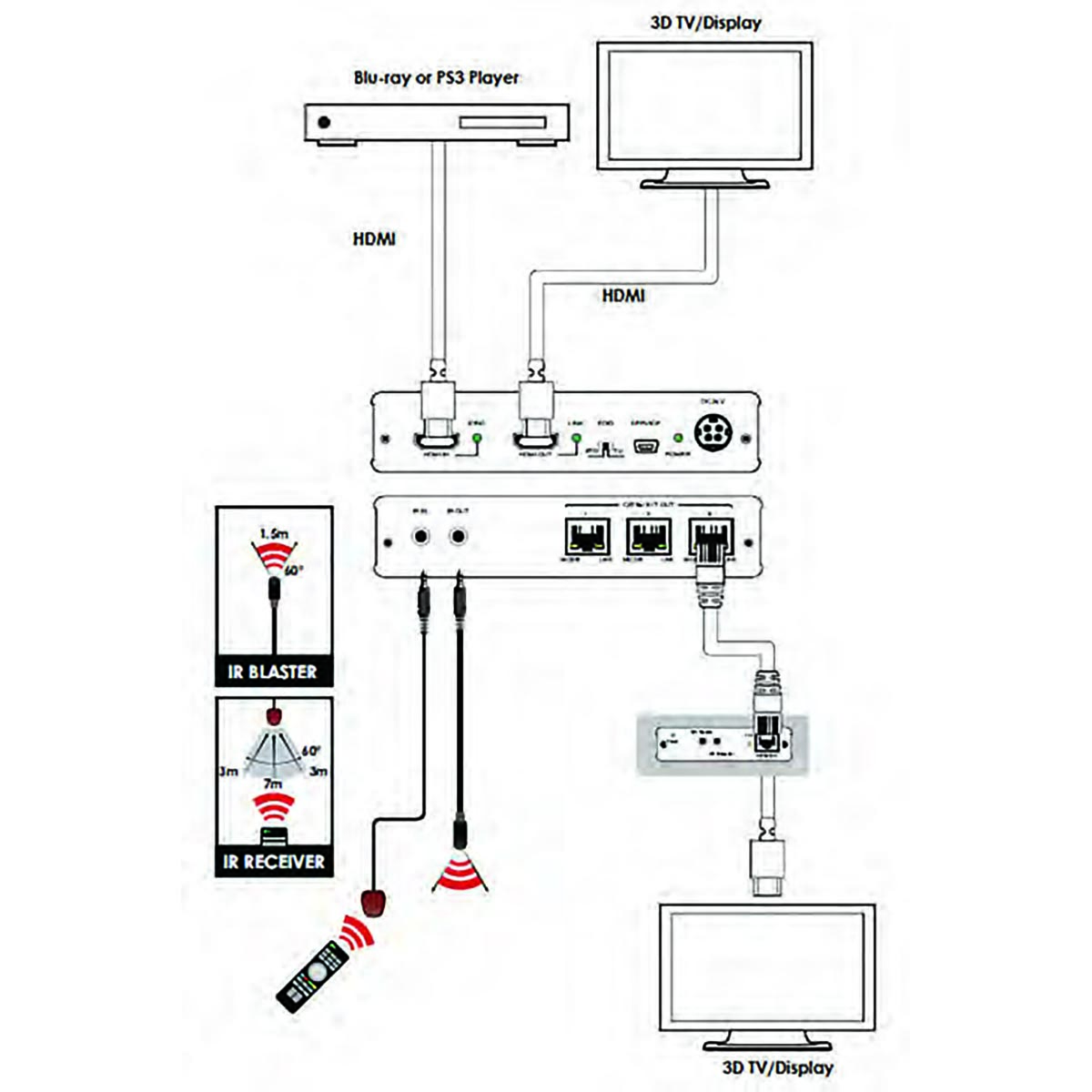

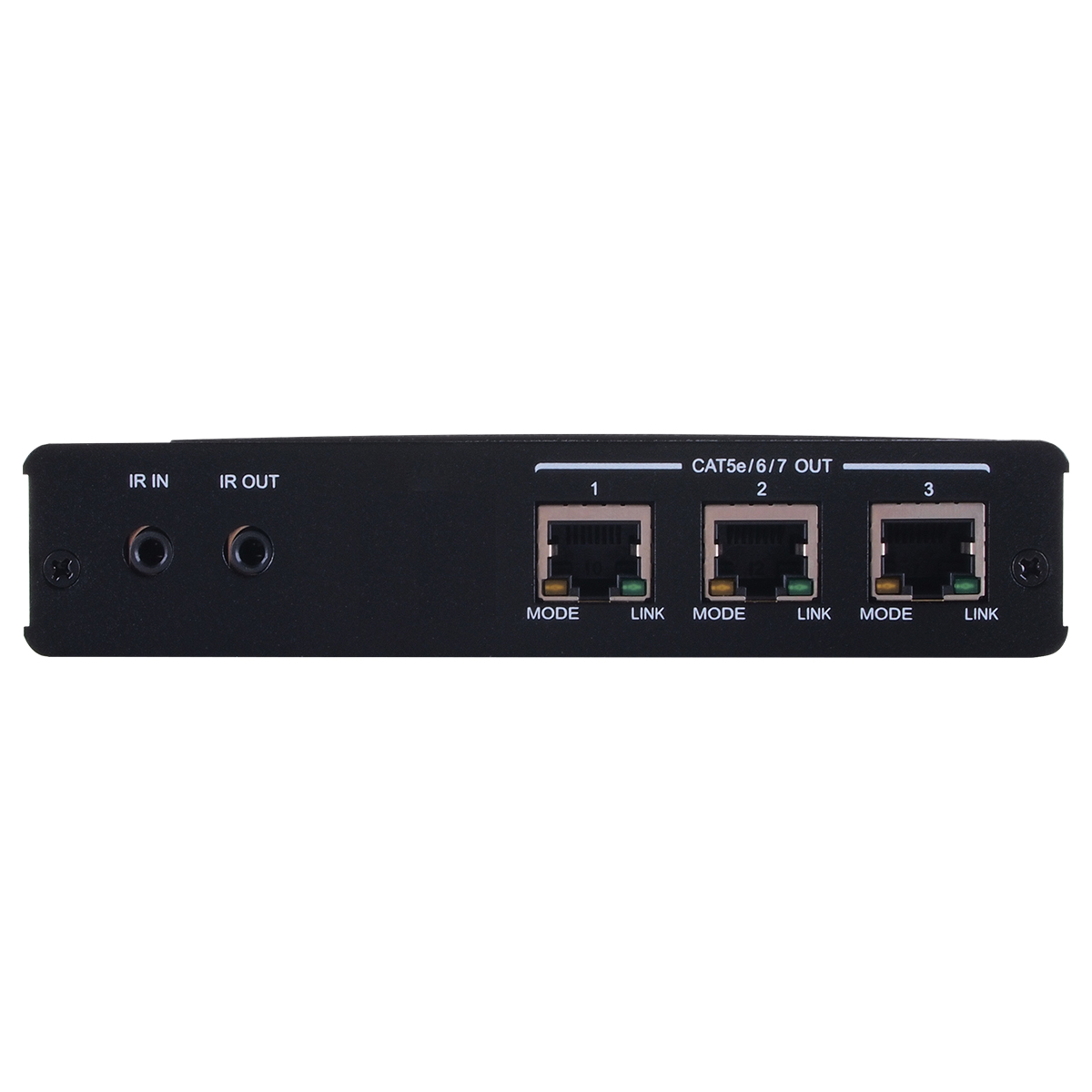

The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single HDMI input and 2-way IR control to up to three HDBaseT outputs and includes a simultaneous HDMI bypass output. It supports resolutions up to 1080p Full HD, 4Kx2K timing, 3D and multi-channel digital audio formats. The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The three HDBaseT outputs can be connected to CAT5e/6/7 to HDMI Receivers to extend the operating distance up to 70 meters.
Features
- Simultaneous HDMI and HDBaseT outputs
- Supports data rate from 250Mbps up to 3Gbps
- Supports up to 4096x2160@60Hz YUV 4:2:0
- Supports LPCM 7.1CH, Bitstream, HD Bistream transmission (32~192kHz sample rate)
- Supports distances up to 70 meters through CAT5e/6/7 cables
- Supports selection of Standard or TV EDID settings
- Supports Bidirectional IR control
- The 3D signal display follow by display TV’s EDID
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over HDMI & CAT5e/6/7 Splitter
Audio Format:
Multi-Channel Digital
Maximum Operating Temperature:
+40°C
Colour:
Black
Power Rating:
12W
Chassis Material:
Metal
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Simultaneous HDMI Bypass Output
Performance
HDMI Compliance Type:
2.0a (DVI 1.0)
HDCP Compliance Type:
2.x
Inputs and Ports
Connector Type:
CAT5e/6/7
Number of Ports:
8
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
14.5cm
Depth:
19cm
Height:
3cm
Weight:
584g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
