CHDBT-1H3CE 1x4 HDMI over HDMI and CAT5e/6/7 Splitter with PoE and LAN Serving

Write a review
CHDBT-1H3CE
Cypress Technology
Out of stock
Log in to see price Add to wish list

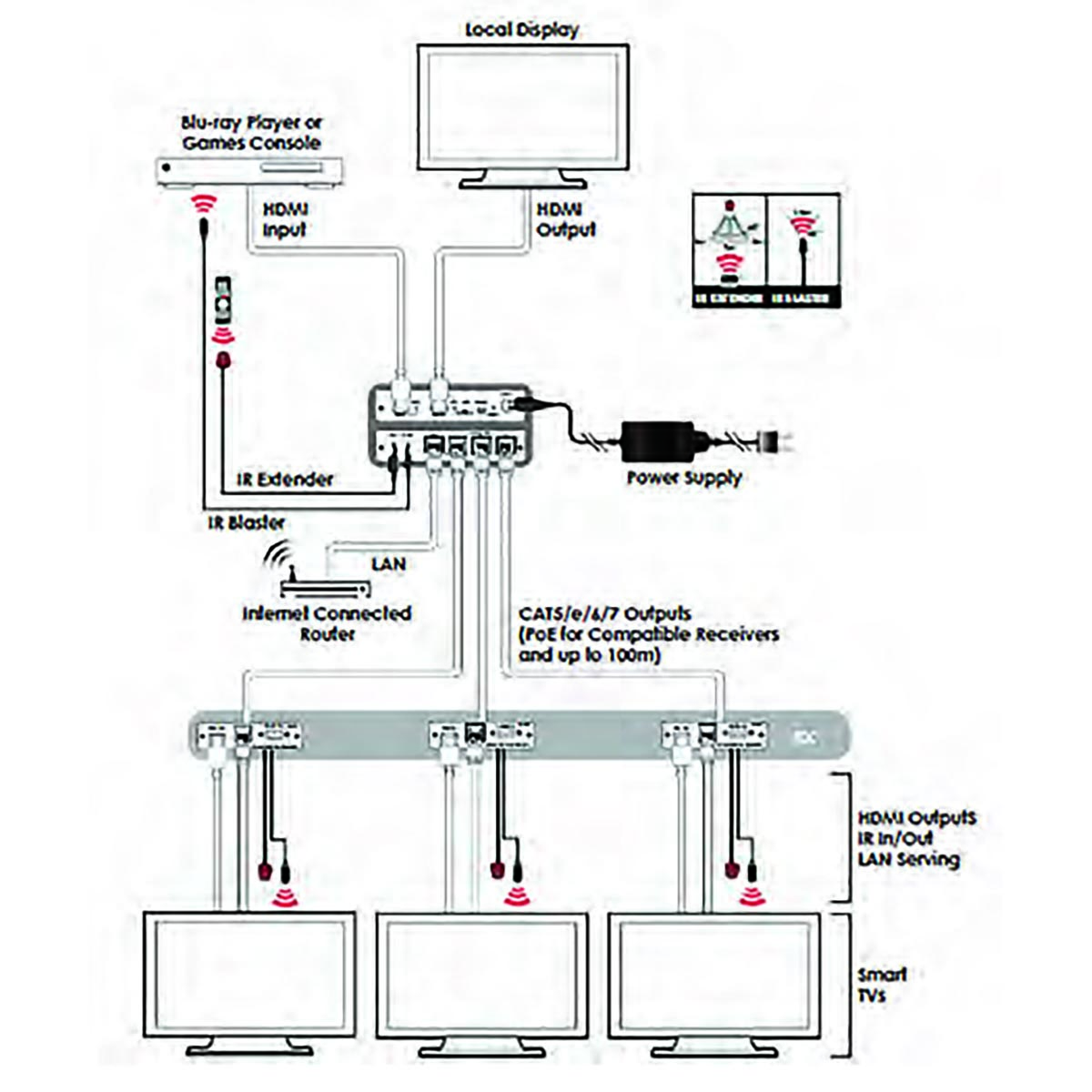

The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single HDMI input, 2-way IR control and LAN serving to up to three HDBaseT outputs and includes a simultaneous HDMI bypass output. It supports resolutions up to 4K×2K timing, 3D and multichannel digital audio formats (such as LPCM 7.1CH, Bitstream, HD Bitstream). The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The three HDBaseT outputs can be connected to HDBaseT to HDMI receivers to extend the operating distance up to 100 meters.Additionally, the LAN connectivity will allow a 100BaseT network to be served to smart TVs or games consoles. The Power over Cable (PoC) function can power compatible receivers, providing greater flexibility in installations.

Features

  • HDMI with 4K×2K resolution and 3D support
  • Simultaneous HDMI and CAT5e/6/7 outputs
  • Supports data rate from 300 Mbps up to 3 Gbps
  • Supports up to 4096x2160@60Hz YUV 4:2:0 8bit
  • Supports transmission of High Definition audio: LPCM 7.1CH, Bitstream, HD Bitstream (32 kHz~192 kHz sample rate)
  • Supports distances up to 100 meters over CAT5e/6/7 cables
  • Supports Ethernet network rates up to 100 Mbps
  • Supports selection of Standard or TV EDID settings
  • Supports PoC with compatible receiver units
  • Supports control of devices via 2-way IR
  • 3D signal display is dependent on the TV/Display’s EDID settings
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over HDMI & CAT5e/6/7 Splitter
Audio Format:
LPCM 2.0/5.1/7.1, Bitstream, HD Bitstream
Maximum Operating Temperature:
+40°C
Colour:
Black
Power Rating:
20.8W
Chassis Material:
Steel
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Simultaneous HDMI Bypass Output
Performance
HDMI Compliance Type:
2.0a (DVI 1.0)
HDCP Compliance Type:
2.x
Colour Depth:
12bits
Colour Space:
4:4:4 to 4:2:0
Inputs and Ports
Connector Type:
HDMI, CAT5e/6/7
Number of Ports:
3
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
23.15cm
Depth:
10.8cm
Height:
2.5cm
Weight:
656g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
