CDVI-2S 1x2 DVI Splitter
Please sign in so that we can notify you about a reply

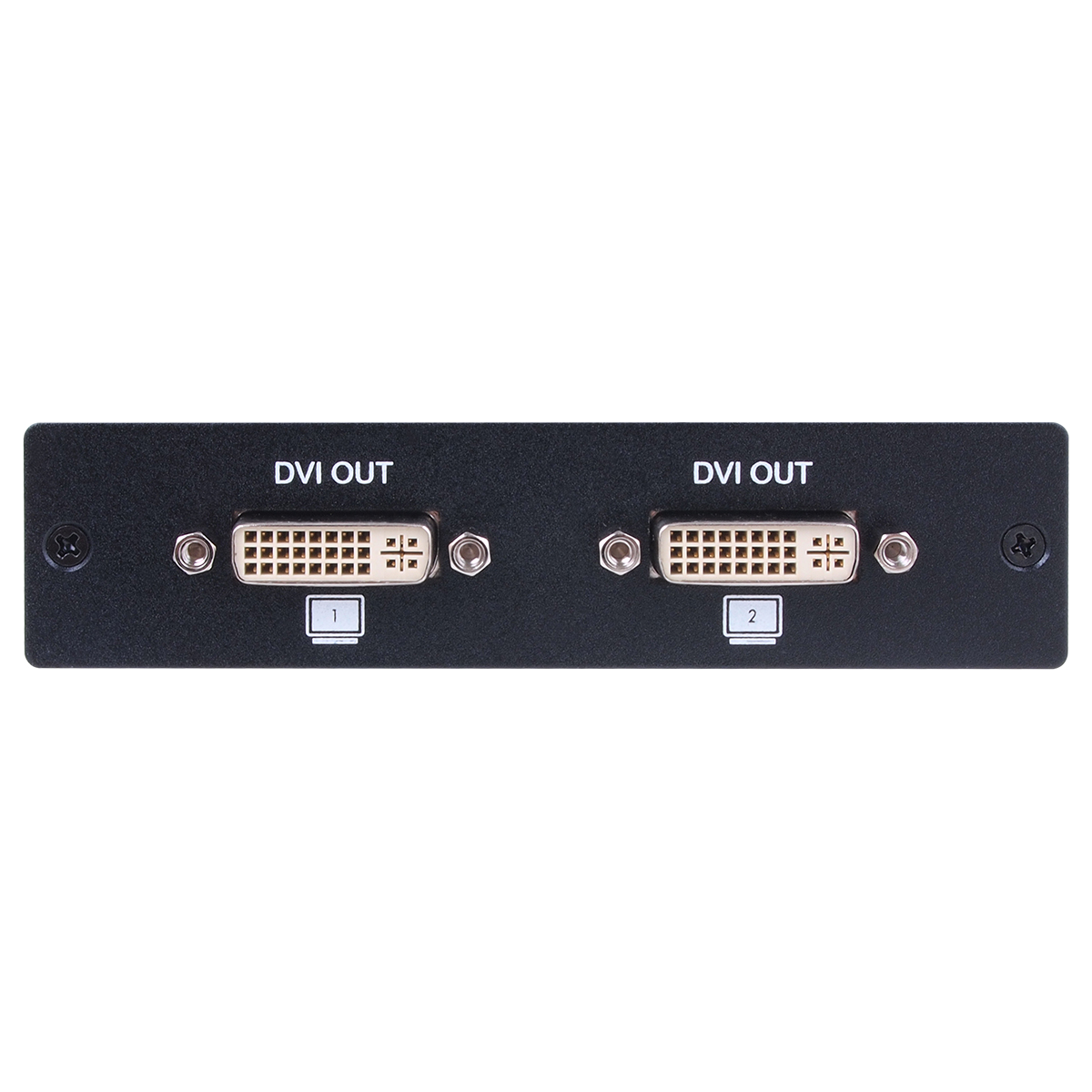

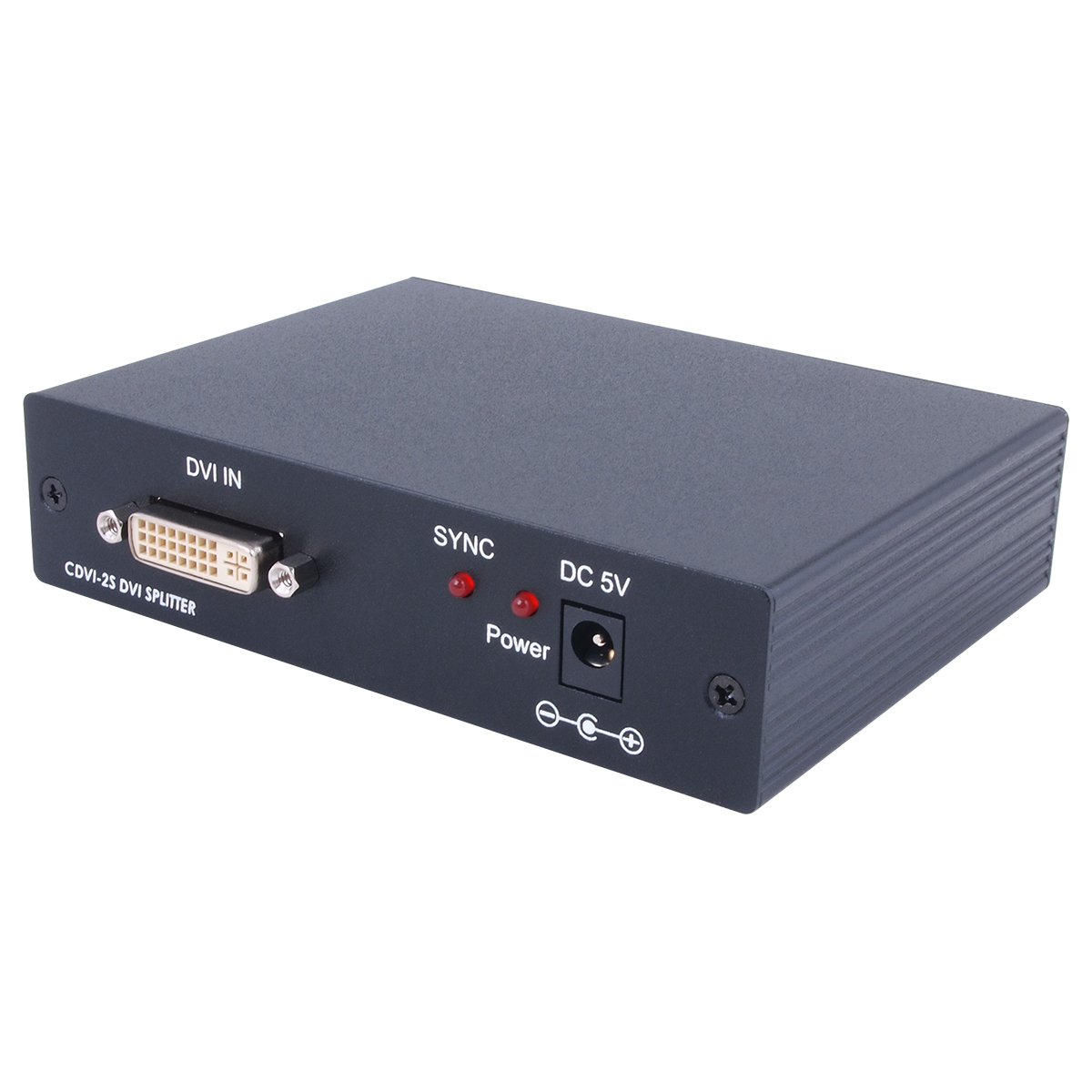

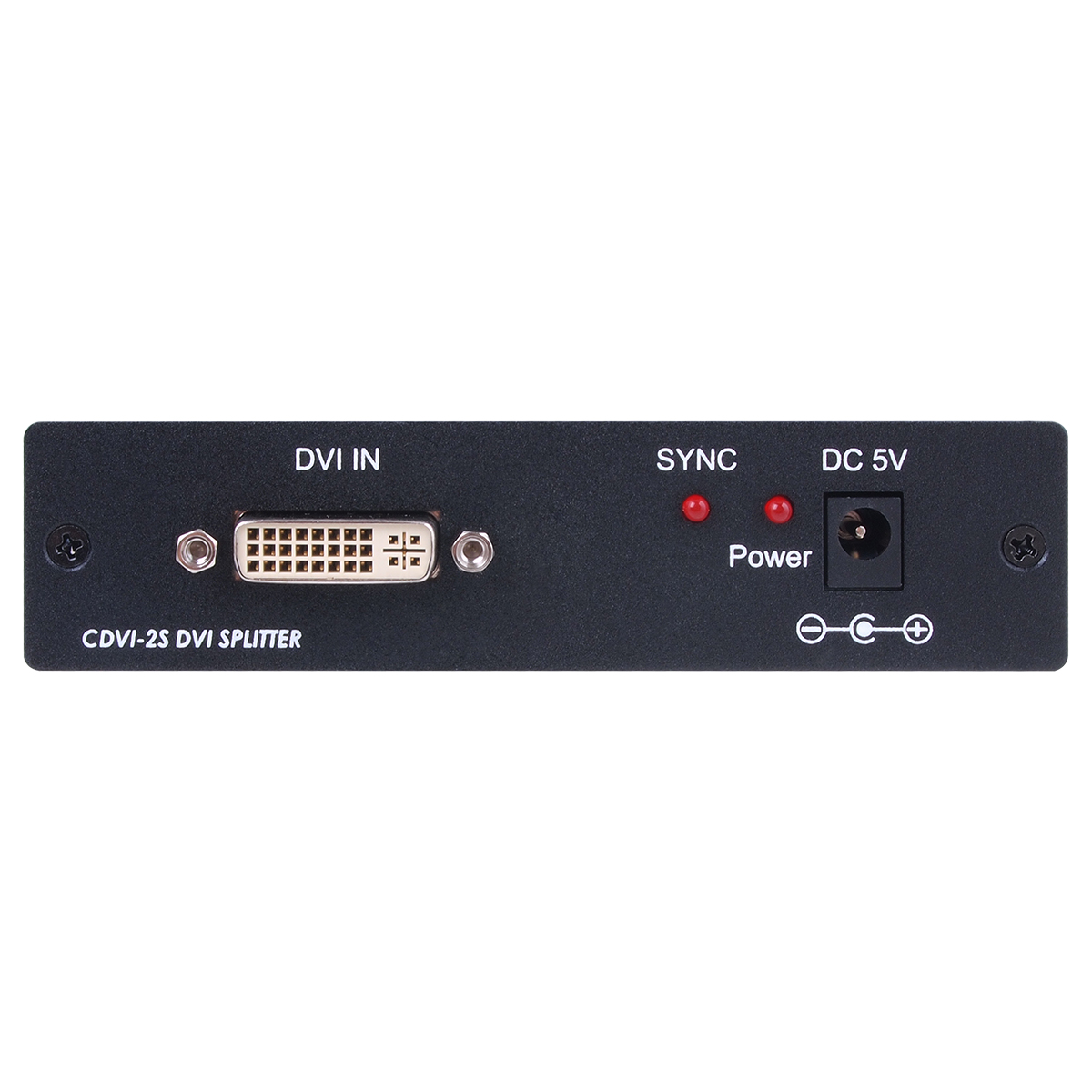

The DVI Splitter series are high performance, HDCP compliant DVI distribution amplifiers. It allows one DVI signal source to be split to two, four or eight identical buffered outputs for connecting to up to eight DVI displays simultaneously. These models can be used to transfer HDMI signal by using HDMI to DVI adaptor or cable. Each of the buffered outputs can be run up to 15 meters and can be cascaded.
Features- Compatible with HDMI signal (with adaptor cable)
- Supports a wide range of PC and HDTV resolutions from VGA to WUxGA and 480p to 1080p
- Can be cascaded up to 3 layers
- The device will read and record the EDID of output 1 and then send it to the source device
Brand:
Cypress Technology
Specifications
Product Type:
DVI Splitter
Maximum Operating Temperature:
+40°C
Colour:
Black
Supported Signals:
VGA to WUXGA
Power Rating:
3.5W
Chassis Material:
Metal
Applications:
Simultaneous DVI Distribution, Digital Signage Distribution, Educational PC Distribution and Demonstration, HDMI or DVI System Distribution
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Resolution:
VGA to WUXGA, 480p to 1080pixels
HDMI Compliance Type:
1.3 (DVI 1.0)
HDCP Compliance Type:
1.4
Inputs and Ports
Connector Type:
HDMI
Number of Ports:
3
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±6kV (Contact Discharge)
Dimensions
Width:
10.2cm
Depth:
12.5cm
Height:
3cm
Weight:
280g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
