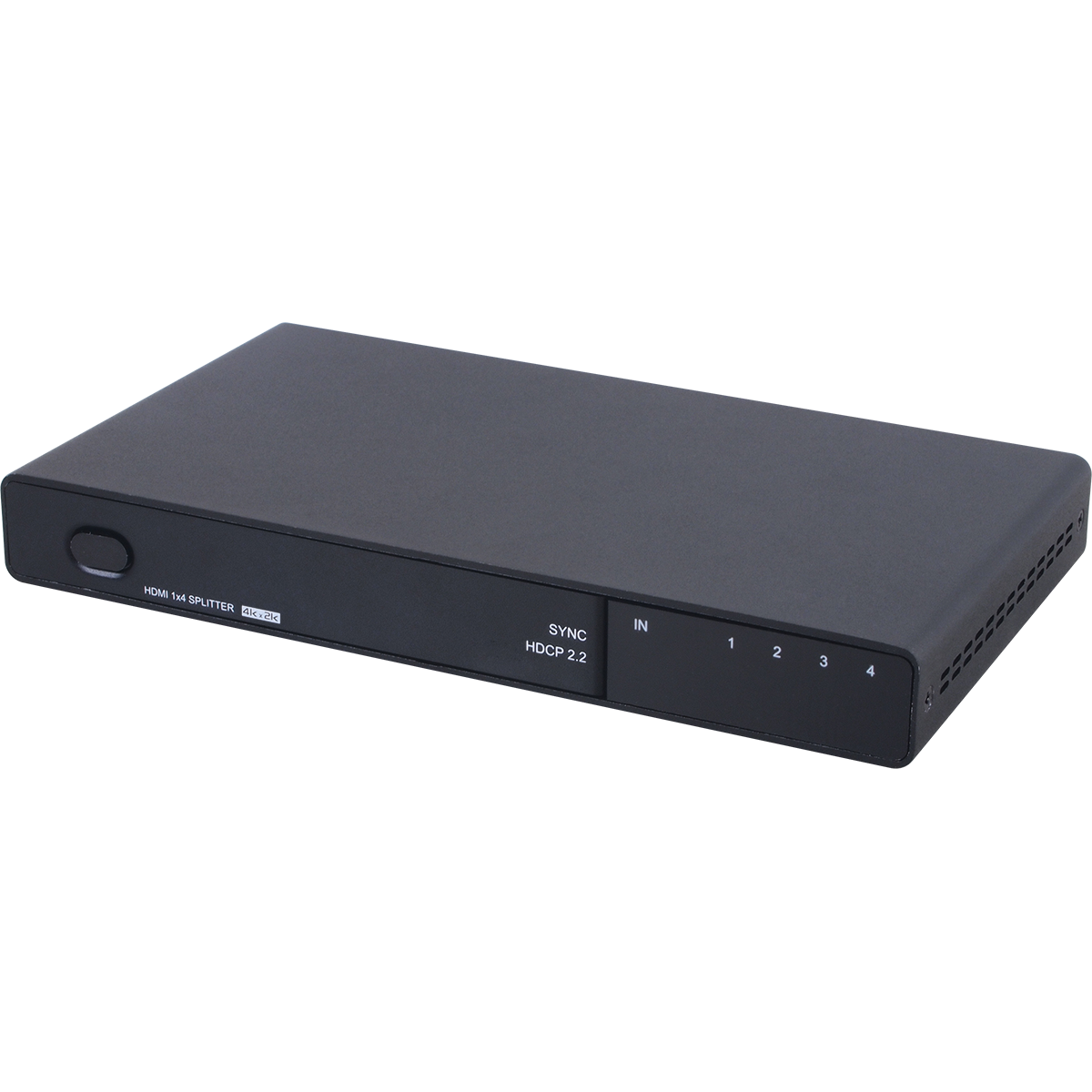

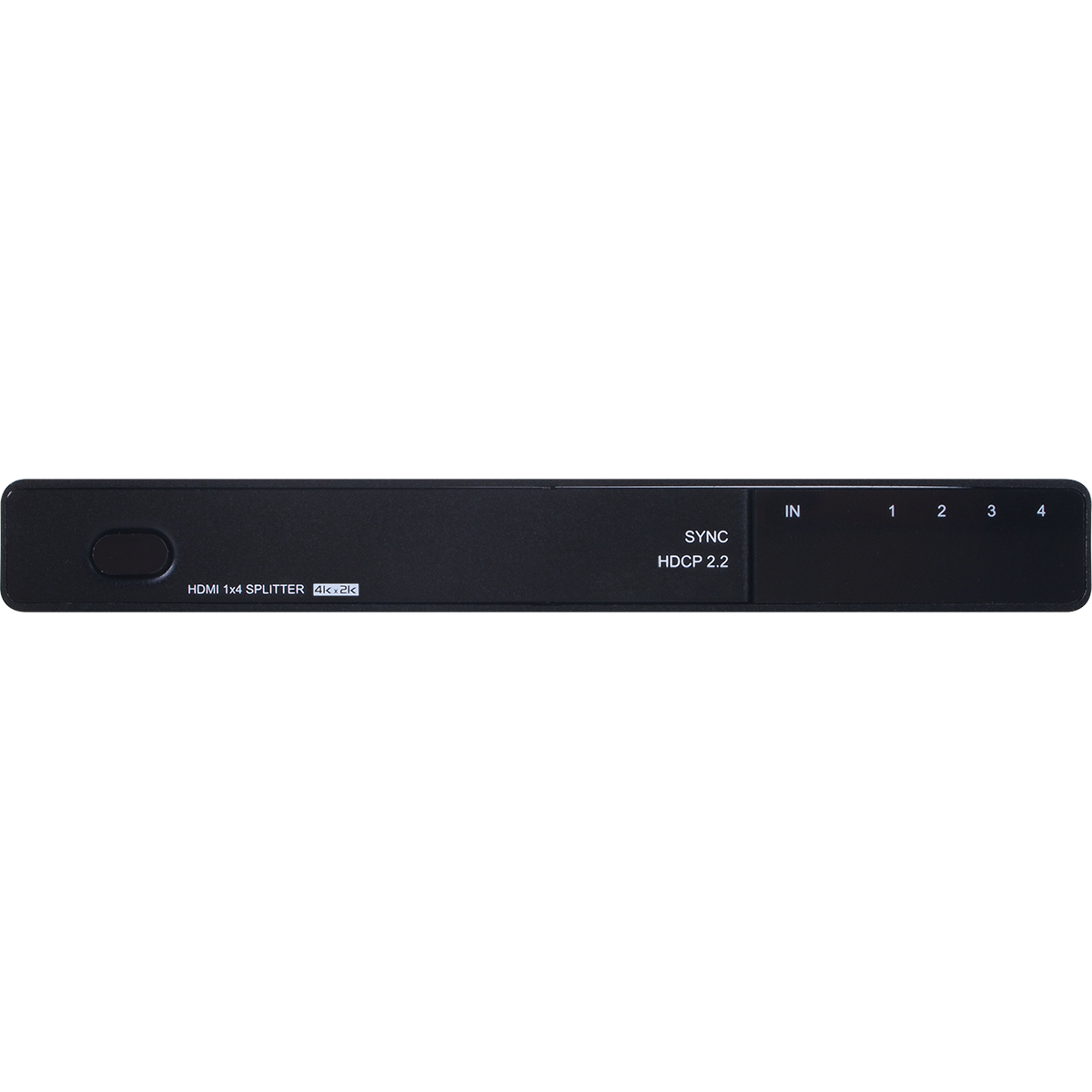

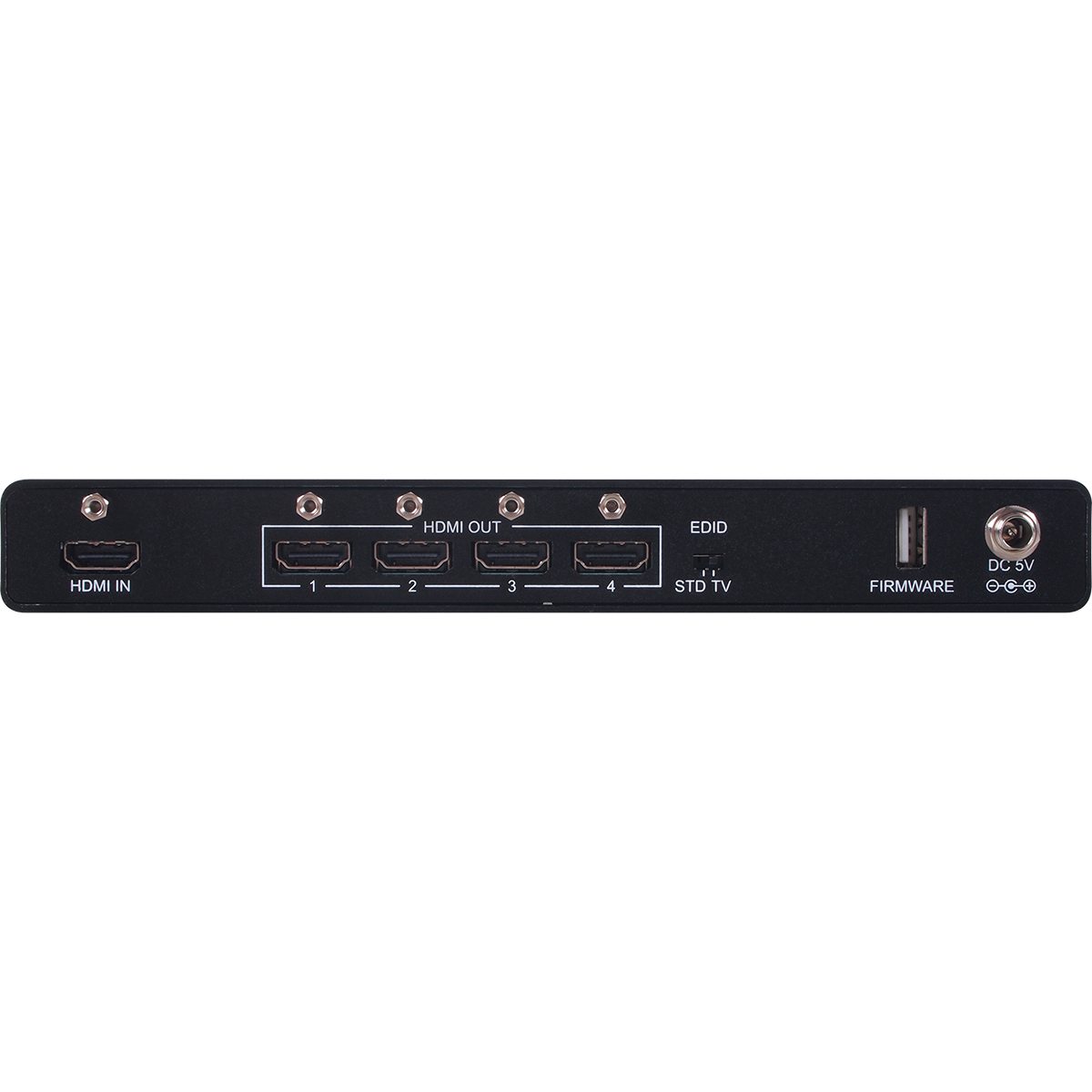

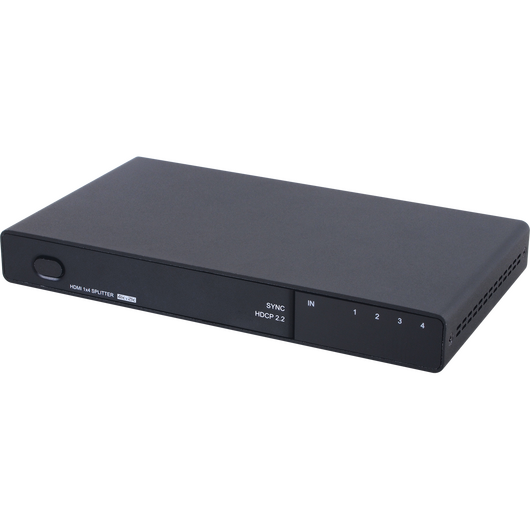

CDPS-UA1H4HS 4K UHD 1x4 HDMI Splitter (HDCP 2.2 Compliant)
Please sign in so that we can notify you about a reply
This high performance HDMI splitter with HDCP 2.2 is an advanced solution designed to distribute an single HDMI input to four simultaneous HDMI outputs and supports resolutions up to 4K2K@60Hz (YUV420), as well as High Definition Lossless Audio formats. Capable of receiving and transmitting up to 9Gbps of bandwidth with no data loss, it also supports the latest features so you can be assured of reliable and high quality HDMI distribution.
Features
- HDMI (with 3D & 4K2K support) and HDCP 2.2 compliant
- Supports HDTV resolutions up to 4K2K including 3840×2160@24/25/30Hz, 3840×2160@50/60Hz (YUV420), 4096×2160@24/25/30Hz, 4096×2160@50/60Hz (YUV420) and PC resolutions up to WUxGA@60Hz (RB)
- Supports pass-through of audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS Surround, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
- Supports simultaneous outputs of an single HDMI signal to four HDMI outputs
- Supports HDMI data rates up to 9Gbps and ‘Deep Color’ up to 1080p/36-bit
- Supports EDID selection functions
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Splitter
Audio Format:
LPCM 2/5.1/7.1CH, Dolby Digital 2 to 5.1CH, DTS Surround, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio
Maximum Operating Temperature:
+40°C
Colour:
Black
Supported Signals:
WUXGA
Power Rating:
5.83W
Chassis Material:
Metal
Applications:
Home Entertainment, Showroom Display, Educational Demo, Commercial Advertisement
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Resolution:
3840x2160pixels@24Hz/25/30Hz, 3840x2160pixels@50Hz/60Hz (YUV 420), 4096x2160pixels@24Hz/25/30Hz, 4096x2160pixels@50Hz/60Hz (YUV 420), WUXGA@60Hz (RB)
HDCP Compliance Type:
2.2
Colour Depth:
36bits
Frequency Rating:
300MHz
Inputs and Ports
Connector Type:
HDMI
Number of Ports:
6
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
22cm
Depth:
12.1cm
Height:
2.7cm
Weight:
368g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
