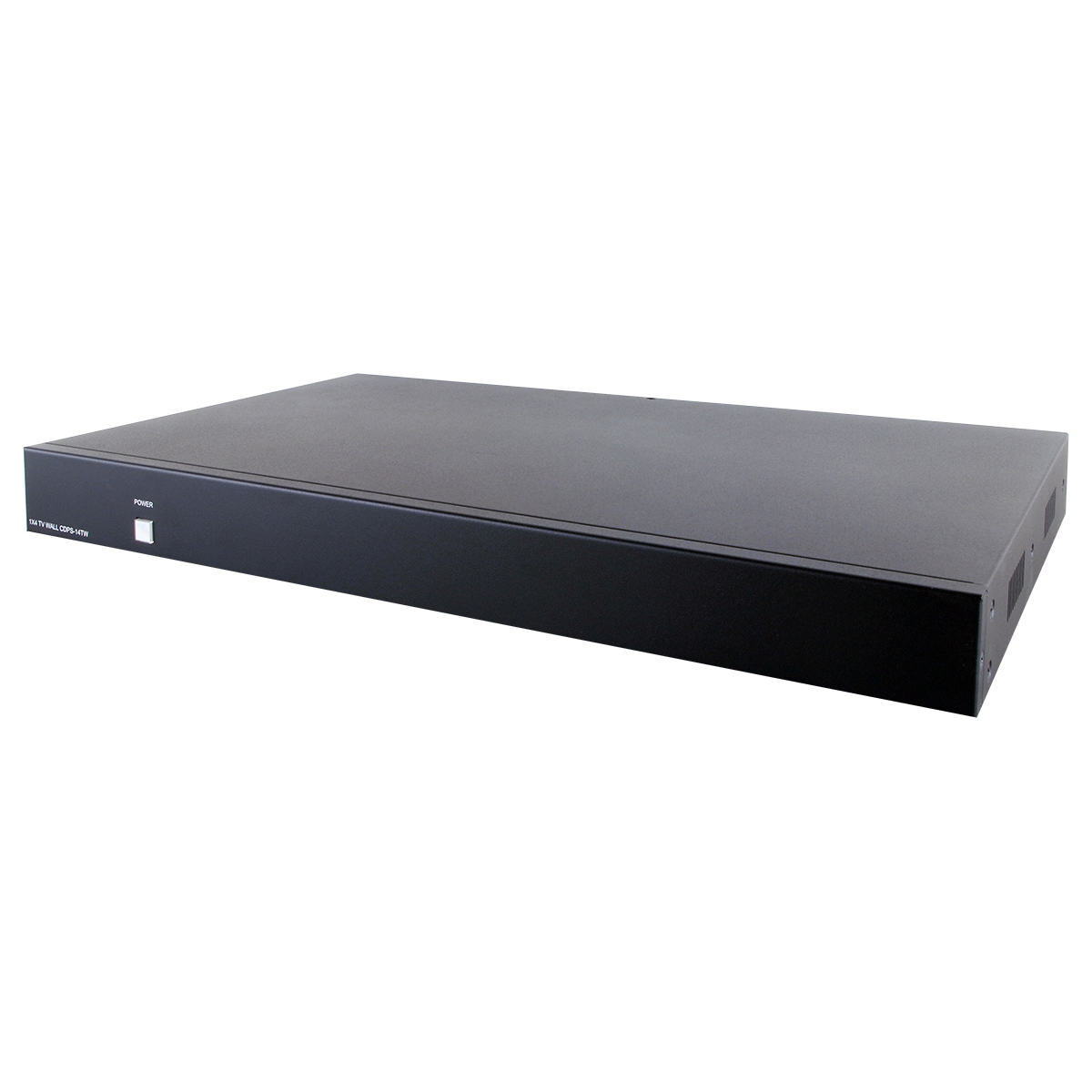

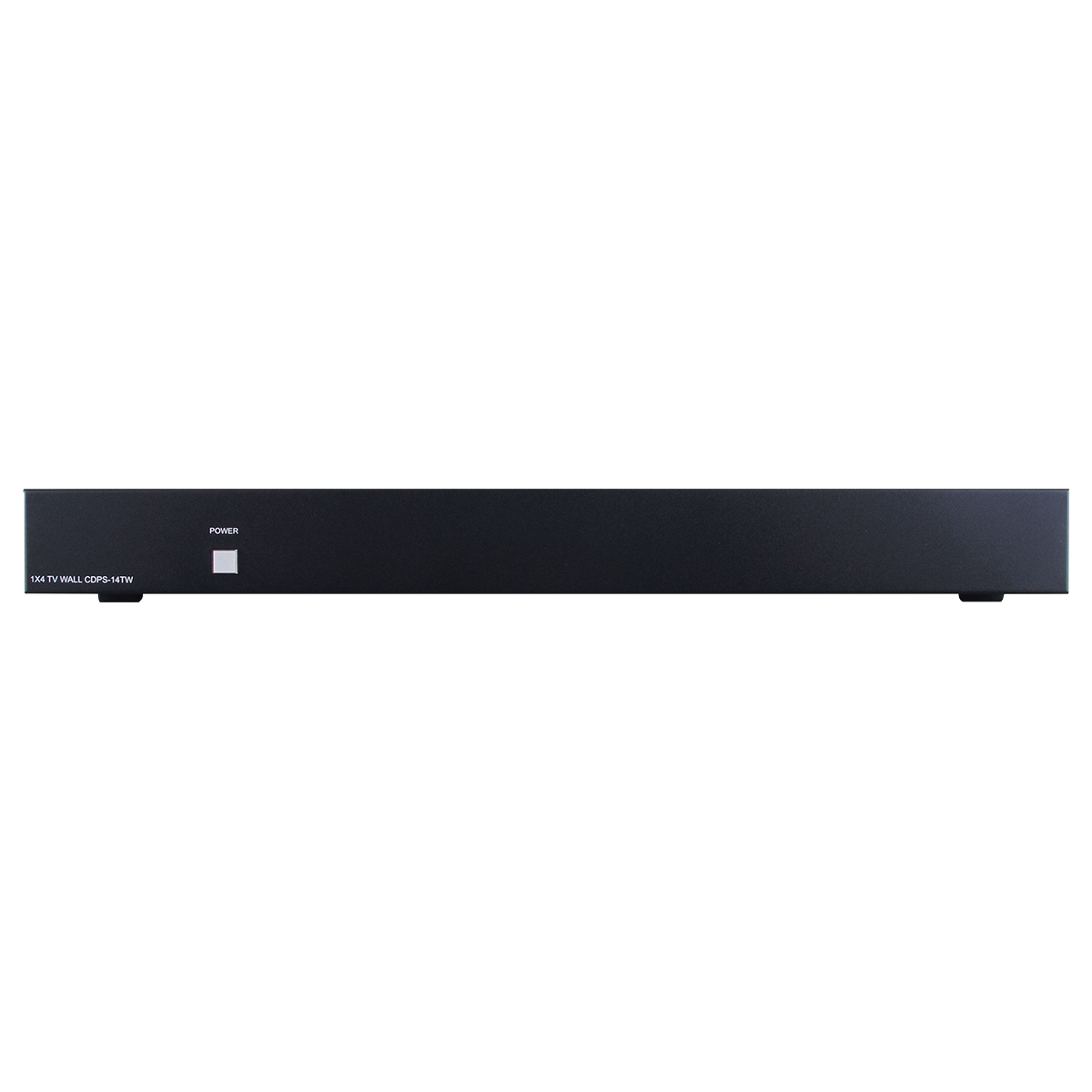

CDPS-14TW HDMI 1x4 TV Wall
Please sign in so that we can notify you about a reply
The 1 by 4 HDMI TV Wall allows an HDMI input source to be freely arranged on 4 displays (TV or monitor) and or cascade to extend the HDMI signal up to as many as needed with bezel correction function. Friendly control application that leads user with single or total devices control over a one touch button and leave the TV Wall control system never been easier. The device supports video timings up to WUxGA@60RB and 1080p@60Hz, audio format up to 7.1CH LPCM at 192kHz sampling rate based on input source EDID. All the operation and control can be done through Telnet and RS-232.
Features

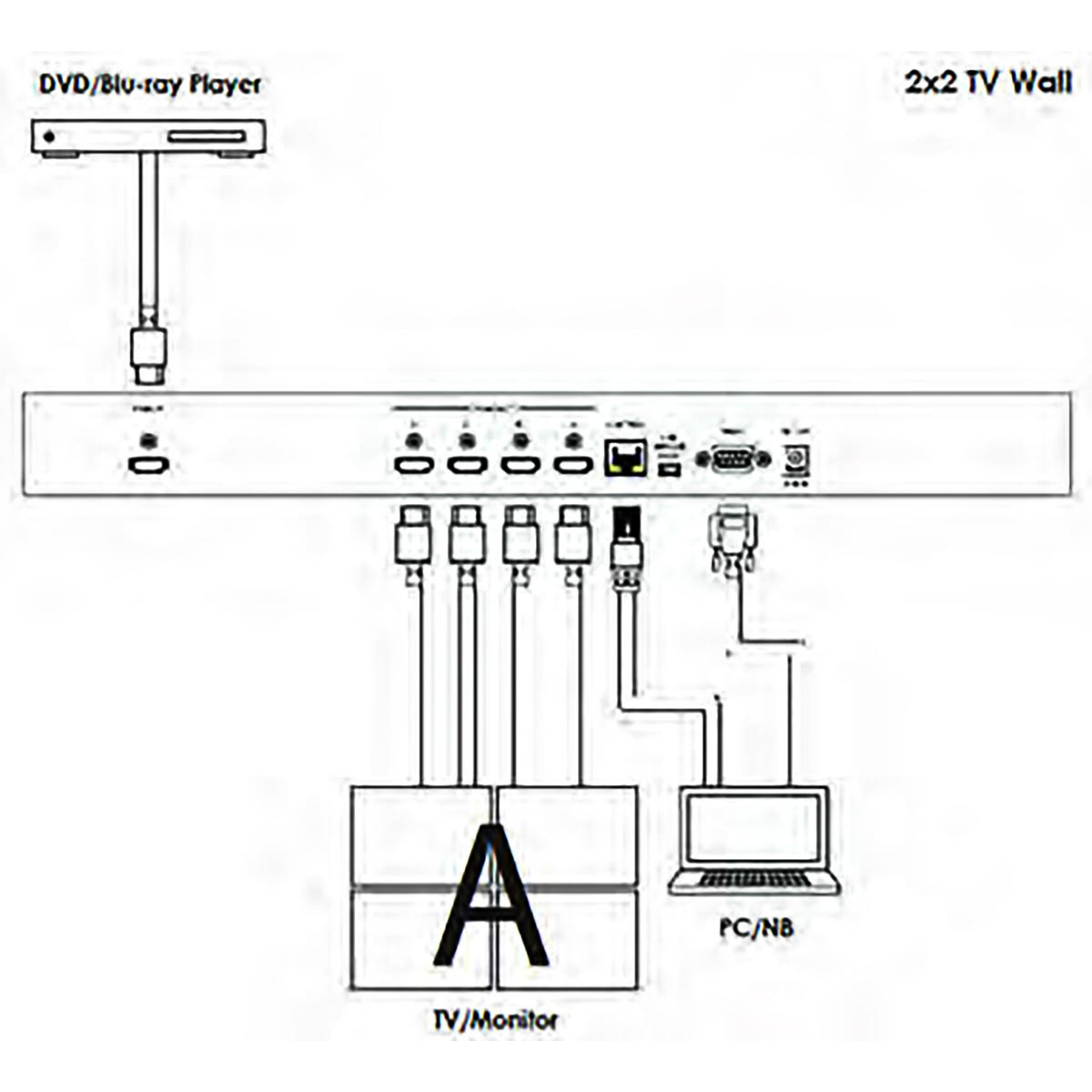

- Output source signal to 4 displays (2 by 2 Video wall) as a full image with adjustable Bezel Correction
- Cascade/Bypass the HDMI signal up to as many as require
- One button push to control all connected TV Wall devices
- Input resolutions support VGA~WUxGA and 480i~1080p
- Output resolutions support 720p~1080p
- Supports different input resolution and output resolution selectable from TV Wall application. The factory default value for the output resolution is 720p@60Hz/ 2CH LPCM
- Audio supports LPCM 2CH, 5.1CH, 7.1CH/AC3/DTS/Dolby Digital Plus/ Dolby TruHD & DTS-HD
Brand:
Cypress Technology
Specifications
Product Type:
Video Wall Splitter
Audio Format:
7.1CH LPCM
Maximum Operating Temperature:
+40°C
Colour:
Black
Power Rating:
12.3W
Chassis Material:
Aluminium
Applications:
Hypermarket Display, Public Advertisement, Digital Presentation, Stock Market
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Resolution:
1920x1080pixels@60Hz, 1920x1080pixels@60Hz RB
HDMI Compliance Type:
1.3 (DVI 1.0)
HDCP Compliance Type:
1.4
Frequency Rating:
225MHz

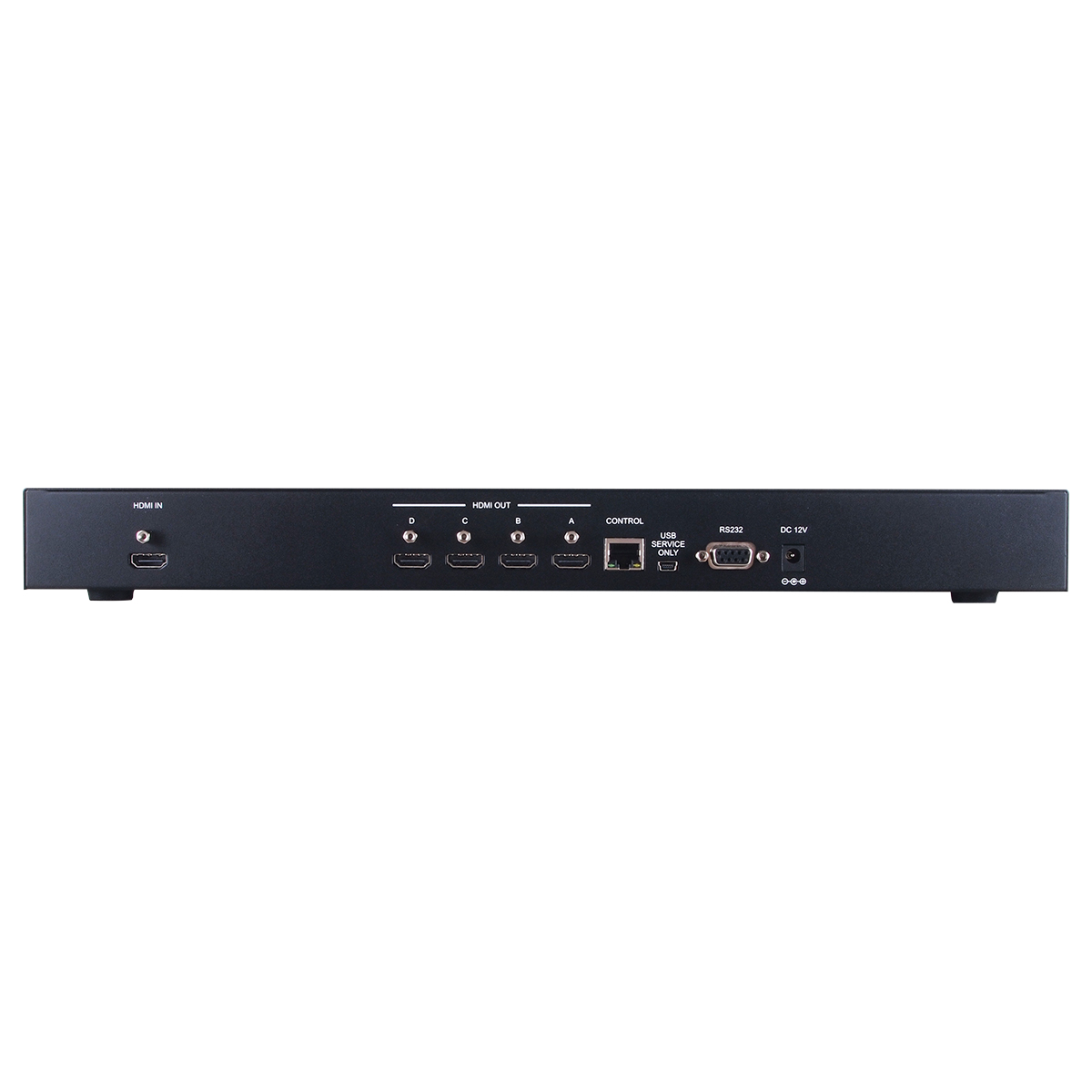

Inputs and Ports
Number of Ports:
6
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
43.6cm
Depth:
24.9cm
Height:
4.4cm
Weight:
2815g
Other
Voltage Rating:
12V DC
Voltage Rating:
12V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
