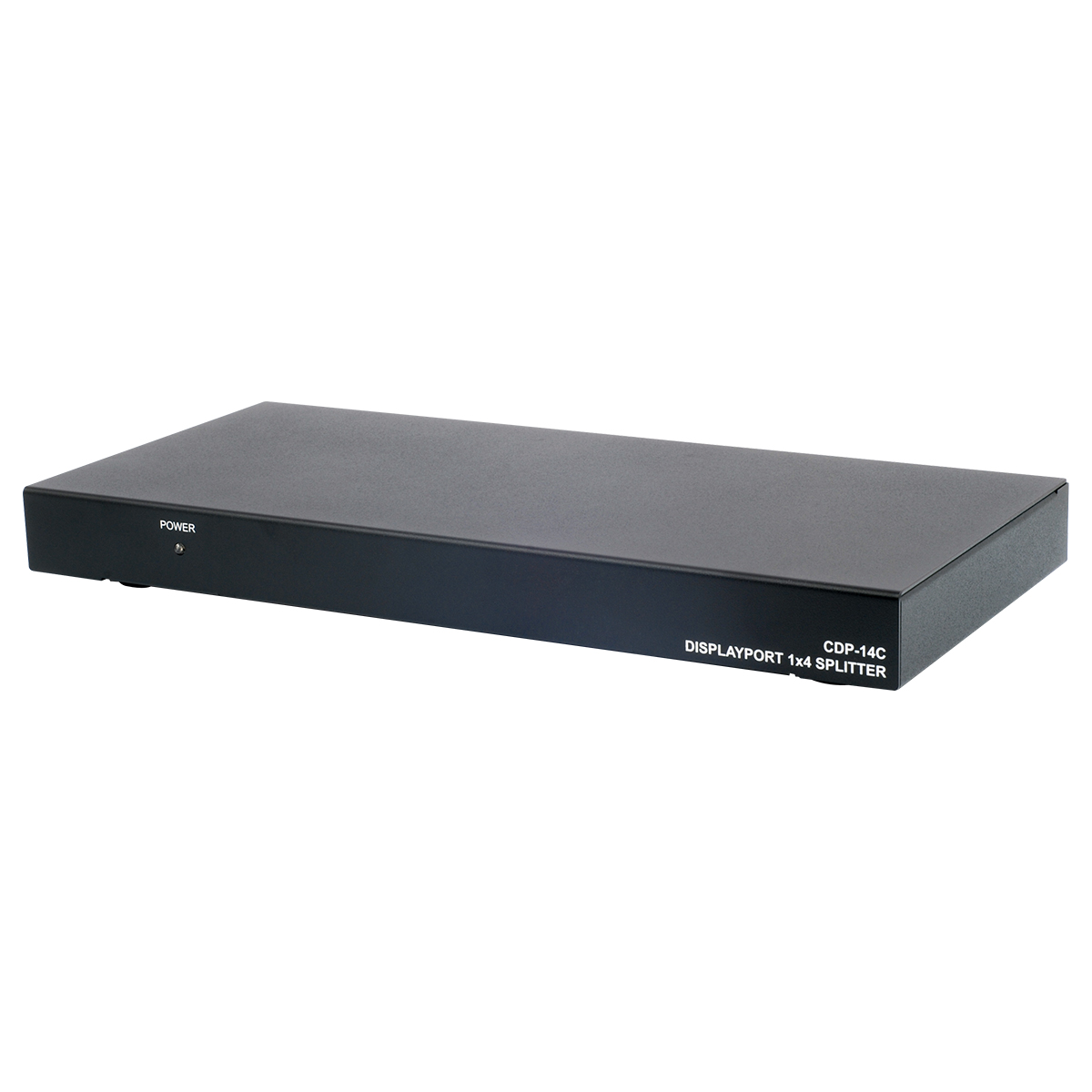

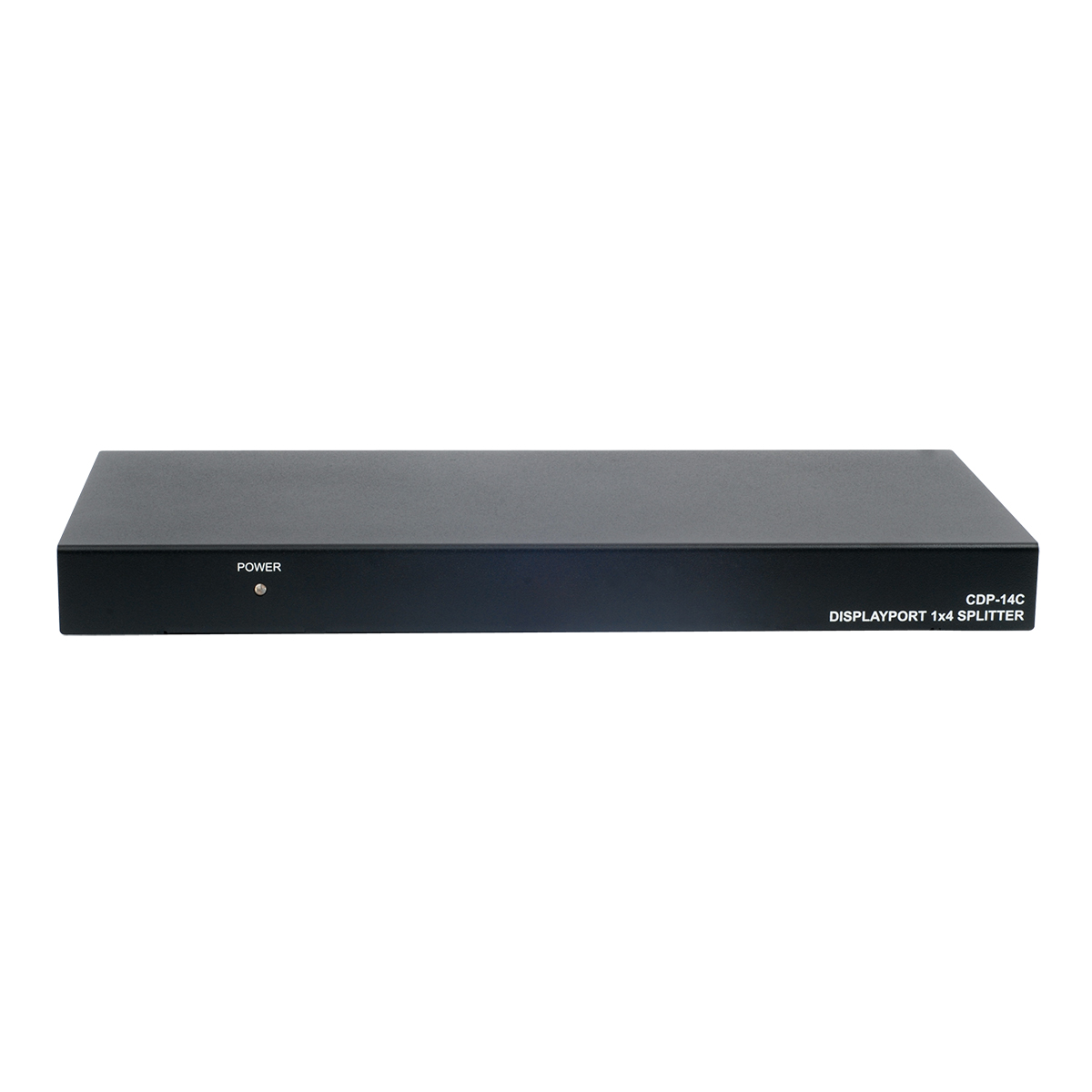

CDP-14C 1x4 DisplayPort Splitter
Please sign in so that we can notify you about a reply

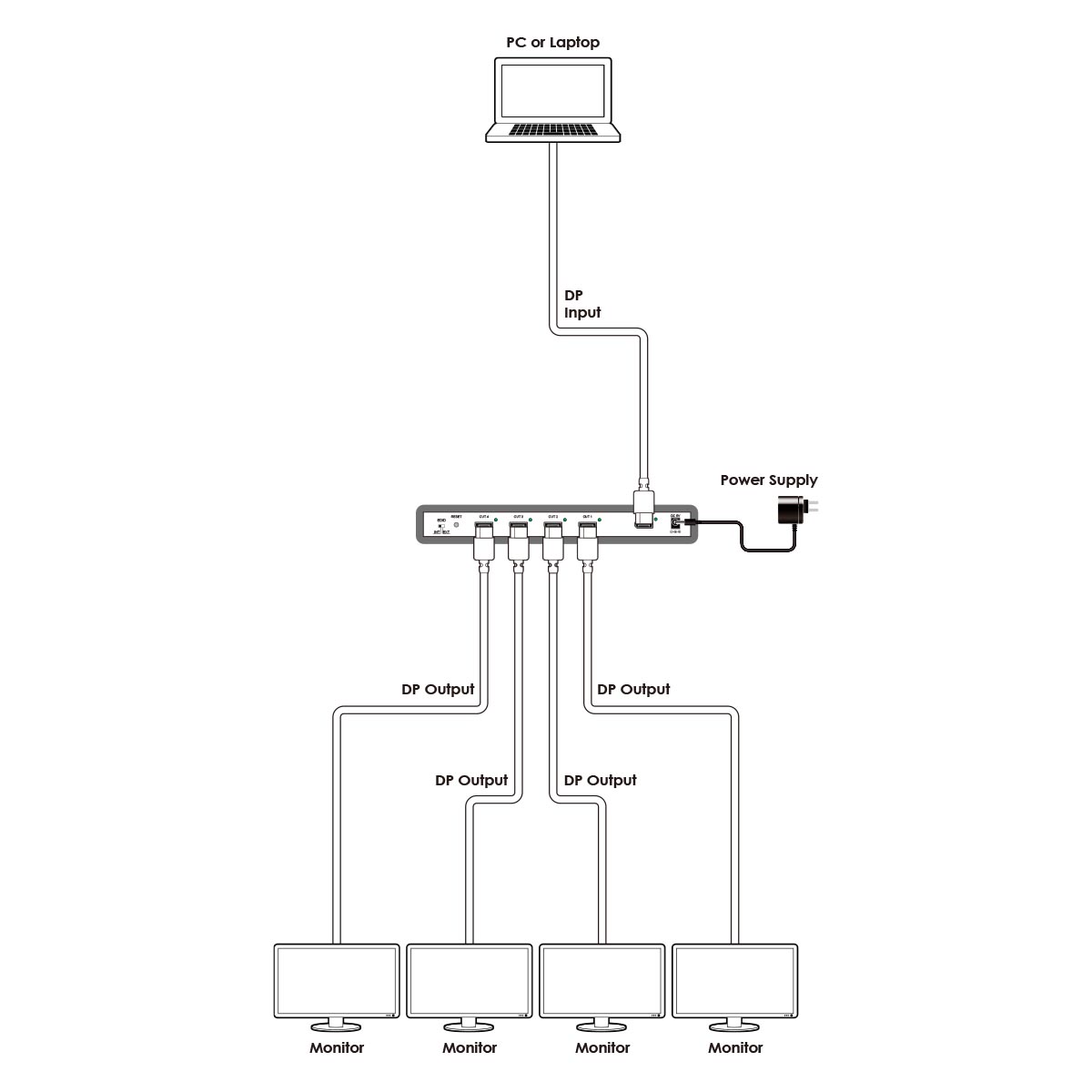

The DisplayPort (DP) 1 by 4 splitter allows single DP source to be display on four DP input monitors simultaneously. It supports video resolution up to 2560x 1600 and audio up to PCM 7.1 switch provides a fast switch between source and display and save EDID’s reading sink time to allow image display properly. The DP 1 by 4 splitter is an ideal device for your DP source to multi display.
Features
- Supports DisplayPort specification V1.1a
- Deep color video up to 12bit, resolution support up to 2560x 1600
- Supports audio up to PCM 7.1(32-192kHz Fs sample rate)
- Supports pixel component formate with RGB;YCbCr 422;YCbCr 444
- Color sapce conversion between RGB and YCbCr color space
- Supports 1.62/2.7 Gbps data rate (Low/High bit rate)
- Supports flexible 1/2/4 lanes configurations;Full 10.8Gbps data ratesupport (4lanes at 2.7Gbps)
- Supports EDID switch and setting Note: This device supports only DisplayPort mode, it cannot connect DP to HDMI level shift convert
Brand:
Cypress Technology
Specifications
Product Type:
Display Port Splitter
Audio Format:
PCM 7.1
Maximum Operating Temperature:
+40°C
Colour:
Black
Power Rating:
7W
Chassis Material:
Aluminium
Applications:
Multi Display Port Monitor Display, Information Sharing, Advertising Program
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Resolution:
2560x1600pixels
HDCP Compliance Type:
1.3
Colour Depth:
12bits
Colour Space:
RGB, YCbCr
Frequency Rating:
60Hz

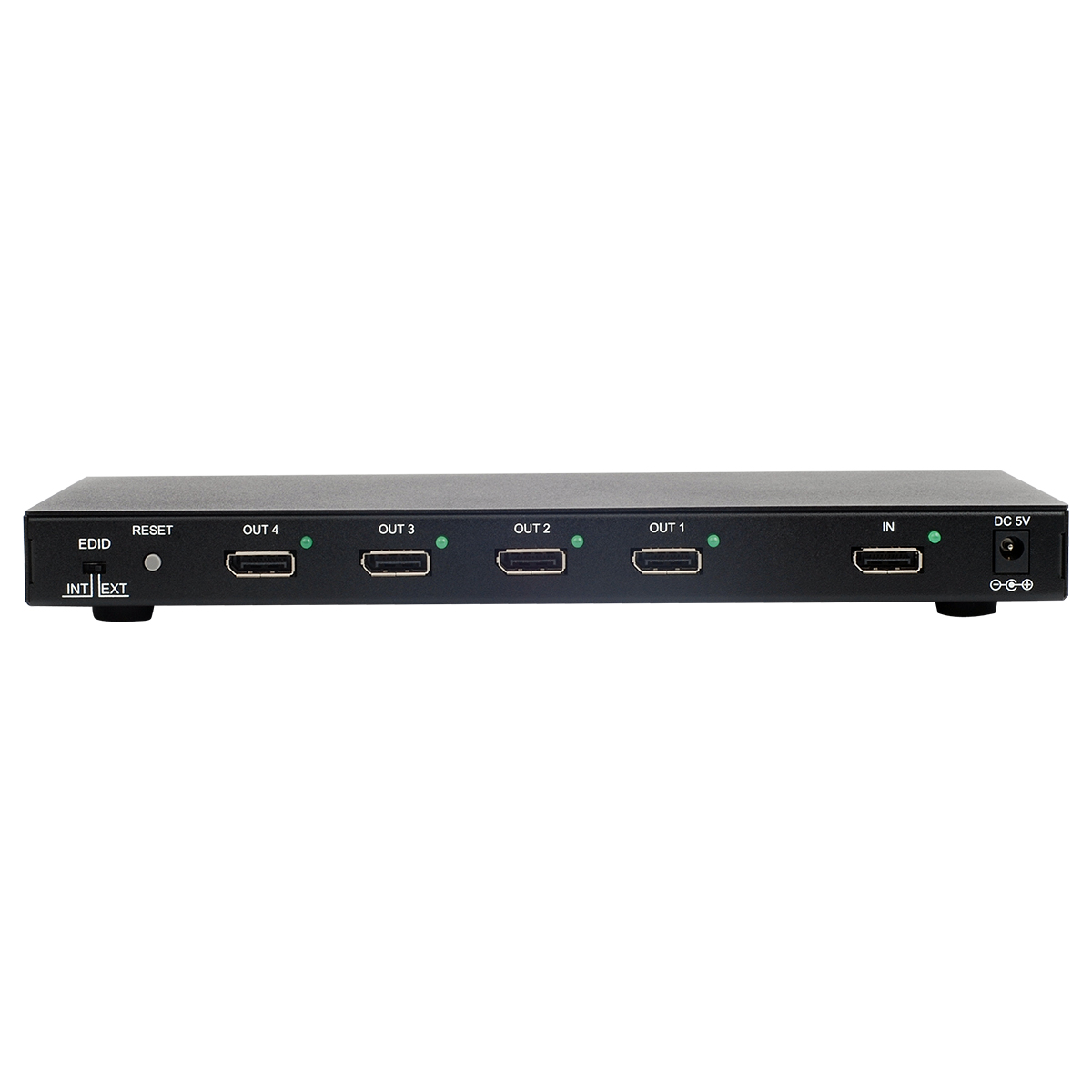

Inputs and Ports
Number of Ports:
5
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
27cm
Depth:
12.4cm
Height:
2.9cm
Weight:
770g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
