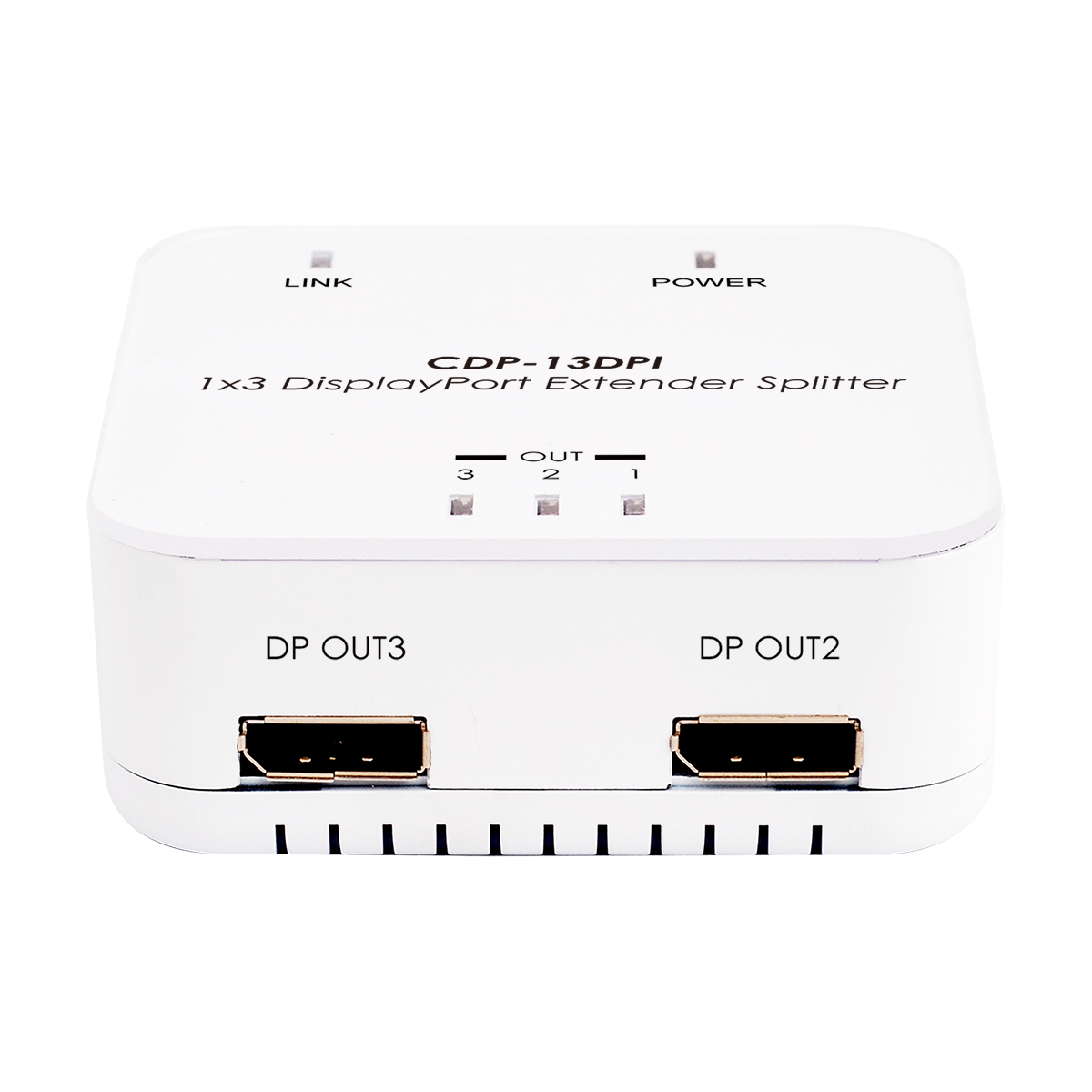

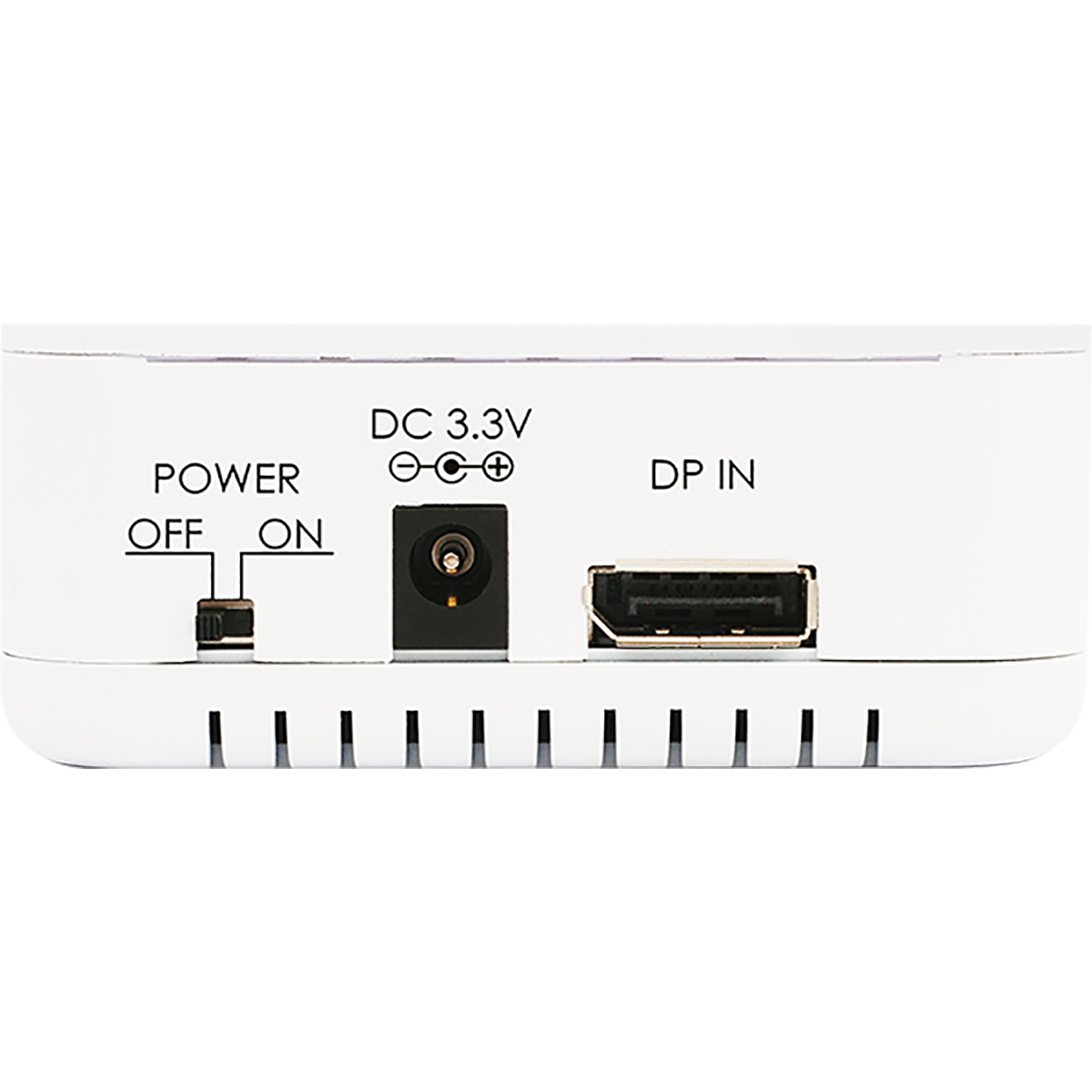

CDP-13DPI 1x3 DisplayPort Splitter
Please sign in so that we can notify you about a reply
For those who want to display large content the 1x3 DisplayPort Extender Splitter is for you. Able to extend an image onto 2 or 3 displays, this device is perfect for multi-tasking, but can also split an image so the same image is repeated on up to three connected displays. This 1 by 3 DisplayPort Extender Splitter allows users to enjoy images or video in HD resolution up to 1920x 1200 on multiple monitors from a single digital output port. The 1 by 3 DisplayPort Extender Splitter is a useful device for extending displays and splitting images.
Features
- Supports DisplayPort v1.1a, VESA DDM Standard, HDCP v1.3 and EDID v1.4
- Supports link rates of 2.7Gbps (HBR) and 1.62Gbps (RBR) from the source
- Fully HD compatible and provides full display performance with zero lag and no display application limitations
- Does not require software updates
- Quality Lab (WHQL) testing/qualification
- Supports output resolutions up to 1920x1200
- Works with any desktop and notebook computer which have a DisplayPort output port
- Provides exceptional Secured Content Protection with HDCP 1.3 for digital content including video and audio
- Plug and Play
Brand:
Cypress Technology
Specifications
Product Type:
Display Port Splitter
Maximum Operating Temperature:
+40°C
Colour:
White
Power Rating:
3W
Chassis Material:
Plastic
Applications:
Home & Office Display, Gaming
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDCP Compliance Type:
1.3
Frequency Rating:
60Hz
Inputs and Ports
Number of Ports:
4
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
10cm
Depth:
7cm
Height:
2cm
Weight:
90g
Other
Voltage Rating:
3.3V DC
Standards Met:
US/EU Standards, CE/FCC/UL Certified
