106 1:2 Microphone to Line Distribution Amplifier
Please sign in so that we can notify you about a reply

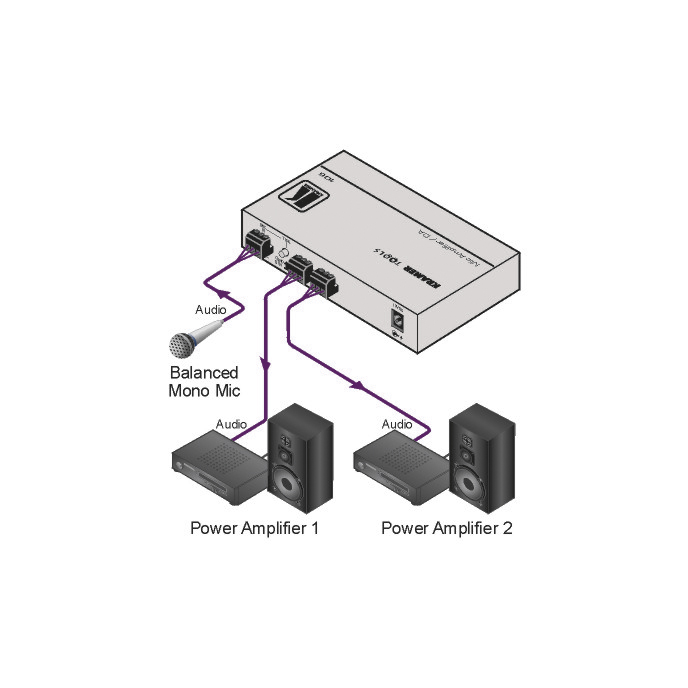

The 106 is a high−quality distribution amplifier for balanced mono microphone signals. It takes one dynamic or condenser microphone input and distributes the signal to two line−level outputs.
Features
- Mic Input Selector — Condenser or dynamic.
- Phantom Power — 48V DC.
- S/N Ratio — 81dB.
- Level (Gain) Controls — Individual and master output adjustments.
- Compact Kramer TOOLS™ — 3 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
90-701390
Product Type:
Microphone to Line Distribution Amplifier
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
Mic Input Selector, Phantom Power, Phantom Power, Level (Gain) Control, Level (Gain) Control
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply, Mounting Bracket
Performance
Bandwidth:
>40kHz
Signal-to-Noise Ratio:
81dB
Total Harmonic Distortion:
0.16%
Input Impedance Rating:
10kΩ
Inputs and Ports
Output Type:
2xBalanced,Mono Line Output on 3-Pin Terminal Block Connector
Connector Type:
Terminal Block
Input Type:
1xBalanced Mono Microphone on a 3-Pin Terminal Block Connector
Power
Input Voltage:
12V DC
Output Impedance Rating:
50Ω
Dimensions
Width:
12.cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.2kg
