105VB 1:5 Composite Video Distribution Amplifier
Please sign in so that we can notify you about a reply

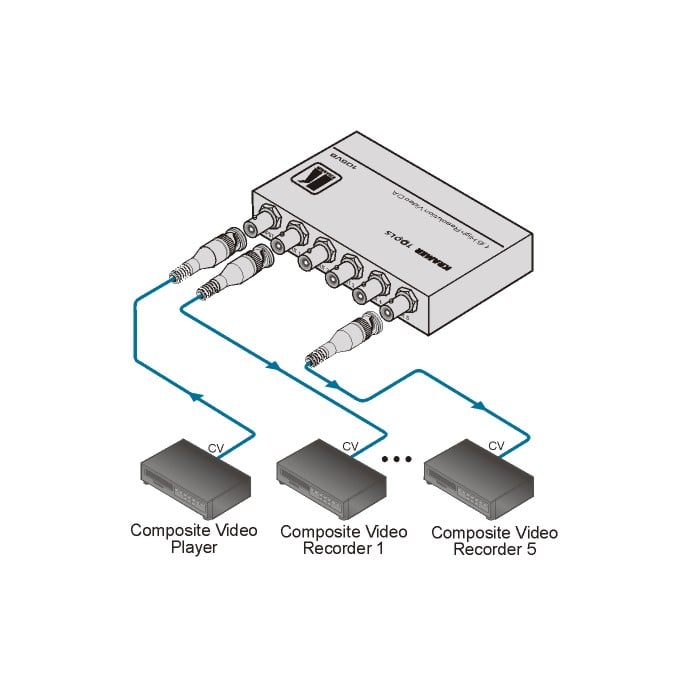

The 105VB is a high-performance distribution amplifier for composite video signals. It takes one input, provides correct buffering and isolation and distributes the signal to five identical outputs.
Features
- Bandwidth — 400MHz (–3dB).
- Connectors — BNC (105V has RCA).
- Level (Gain) Control.
- Compact Kramer TOOLS™ — 3 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
90-013590
Product Type:
Composite Video Distribution Amplifier
Specifications
Video Signal Format:
Composite Video
Special Features:
Bandwidth, Connector, Level (Gain) Control, Compact Kramer TOOLS™
Applications:
Video Duplication Studios, Any Professional Display System Requiring an Identical Picture on Several Monitors, Cctv and Home Theatre Use, Rental and Staging
Includes:
Power Supply, Mounting Bracket
Performance
Bandwidth:
400MHz
Signal-to-Noise Ratio:
80dB
K-Factor:
<0.05%
Differential Gain:
0.1%
Input Impedance Rating:
75Ω
Differential Phase:
0.1°
Inputs and Ports
Output Type:
5xComposite Video, 1Vpp/75Ω on BNC Connector
Connector Type:
BNC
Input Type:
1xComposite Video, 1Vp-p/75Ω on a BNC Connector
Power
Input Voltage:
12V DC
Output Impedance Rating:
75Ω
Dimensions
Width:
12.cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.2kg
