iTools G8K Signal Generator/Analyzer/Tester, HDMI 2.1, 8K
Please sign in so that we can notify you about a reply
Test signal generator is a specialized analyzer for the AV integration field, designed to confirm that the HDMI system device conforms to the HDMI 2.1 and HDCP 2.3 specifications. It can generate and analyze HDMI signal for any HDMI systems to make it easy for system integration, project installation and debugging, cable manufacturing, even for engineering and test in laboratory.
Features- Support resolution up to 8K@50/60Hz 4:2:0 10-bit and 40Gbps video bandwidth, as specified in HDMI 2.1
- Up to 64 video resolutions and 33 patterns
- colour space: RGB/YCbCr444/YCbCr422/YCbCr420
- colour depth: 8/10/12-bit
- Built-in HDR test function in HDMI 2.1
- HDMI audio source can be from the internal audio or external S/PDIF input audio
- The internal audio signal supports LPCM 2CH format, 48kHz sample rate and 16bits width
- Support HDCP 2.3/1.4 encryption verification pass or fail indication
- With EDID Read/Write functionality
- Support analyzing Timing/Format/Info frame/HDCP of HDMI input signal
- Support CEC control
- Control via front panel buttons
- Portable design, built-in lithium battery of 2910mAh
Brand:
Infobit
Product Type:
Signal Generator
Specifications
Maximum Operating Temperature:
40°C
Special Features:
Built-in HDR Test Function in HDMI 2.1, Up to 64 Video Resolutions and 33 Patterns, The Internal Audio Signal Supports LPCM 2CH Format, Support CEC Control, Built-in Lithium Battery of 2910mAh
Power Rating:
7.5W
Chassis Material:
Plastic (Enclosure)
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1×HDMI 2.1 Test Signal Generator - Analyzer (Built-in Lithium Battery), 1×Serial Cable (3.5mm Headphone Connector to DB9 Female Connector, 1m), 1× 5V/2A Power Adaptor, 1× User Manual
Performance
Resolution:
Up to 8K@50/60Hz (YUV4:2:0 10-bit)
Display Resolution:
Up to 8K@50/60Hz (YUV4:2:0 10-bit)
Frequency Rating:
48kHz

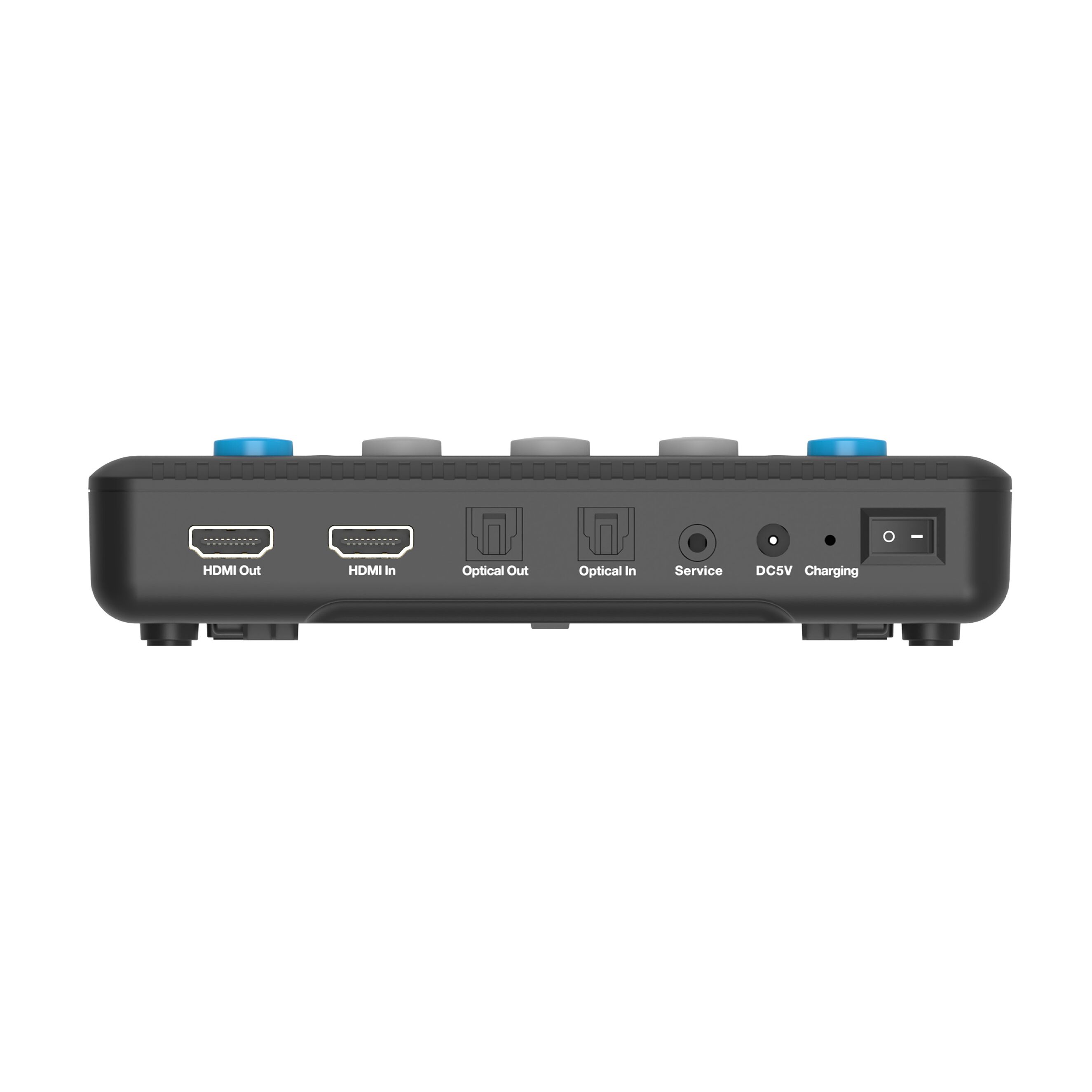

Inputs and Ports
Video Input Type:
1×HDMI In (Type-A, 19 Pin Female), 1×Optical In (S/PDIF)
Digital Audio Input Type:
LPCM 2CH
Digital Audio Output Type:
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Digital Video Output Type:
1×HDMI Out (Type-A, 19 Pin Female), 1×Optical Out (S/PDIF)
Power
Current Rating:
2A
Dimensions
Width:
16.5cm
Depth:
10.3cm
Height:
3.7cm
Weight:
320g
Other
Voltage Rating:
100 to 240V AC, 5V DC
Standards Met:
US, EU, FCC, CE Compliance, UL Certified
