CPLUS-11HB 4K60 (4:4:4) HDMI Signal Generator & Audio Bridge
Please sign in so that we can notify you about a reply

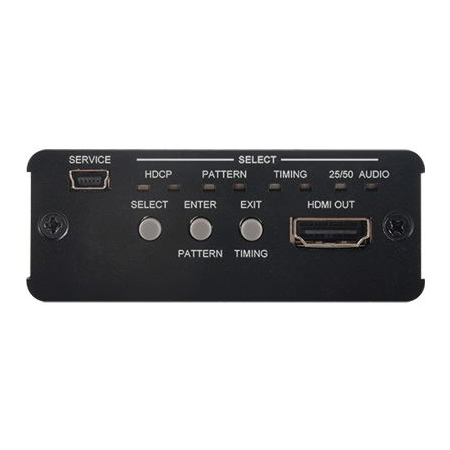

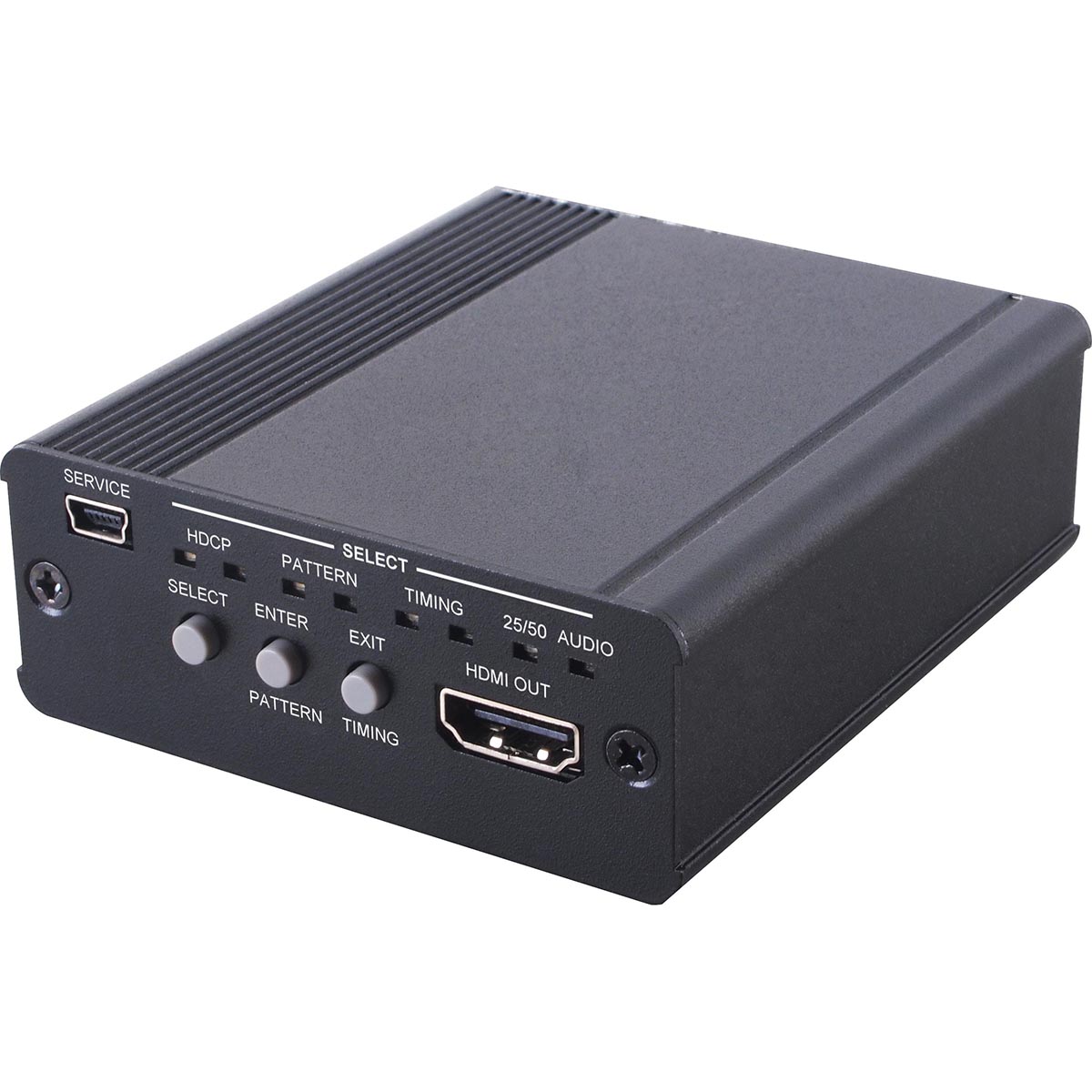

The 4K2K HDMI 6G Pattern Generator with Audio Bridge is an advanced and convenient tool for generating HDMI 6G signals for testing HDMI devices. With 6 built-in settings covering Ultra HD and Full HD resolutions, 4 test patterns, HDCP (1.4, 2.2 and non-HDCP) and 2 audio types each providing a large array of test patterns, and incorporates both digital and analog audio inputs for embedding into an HDMI output. The colorful LED design allows fast and easy selection of patterns and quick viewing of the current status.
Features
- HDMI (with 6G audio/video support) and HDCP 2.2 compliant
- Generates HDMI resolutions up to 6Gbps 4K2K@60Hz
- Generates HDCP v1.4, HDCP v2.2 and non-HDCP signals

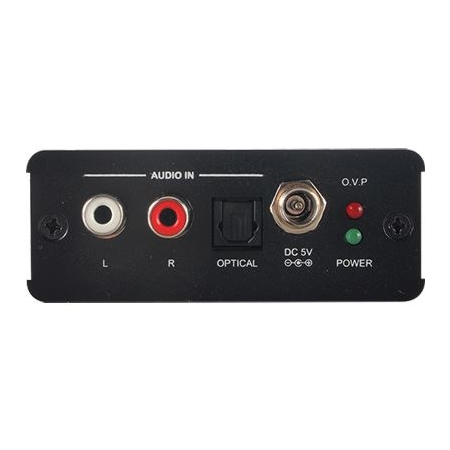

- Supports external analog stereo and optical digital audio input
Brand:
Cypress Technology
Product Type:
Pattern Generator
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
HDMI (with 6G Audio/Video Support) and HDCP 2.2 Compliant, Generates HDMI Resolutions Up to 6Gbps 4K2K@60Hz, Generates HDCP v1.4, HDCP v2.2 and Non-HDCP Signals, Supports External Analog Stereo and Optical Digital Audio Input
Power Rating:
2.5W
Chassis Color:
Black
Chassis Material:
Aluminium
Applications:
Production Testing, R and D Design and Testing
Minimum Operating Temperature:
0°C
Performance
Display Resolution:
3840x2160pixels
Frequency Rating:
60Hz
Inputs and Ports
Video Input Type:
1xL/R (RCA), 1xOptical, 1xUSB (Service)
Digital Video Output Type:
1xHDMI:on a Female HDMI Connector
Power
Current Rating:
2.6A DC
Dimensions
Width:
7.85cm
Depth:
9.5cm
Height:
3cm
Weight:
202g
Other
Voltage Rating:
5V
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
