CPA-4 HDMI Video Pattern Generator
Please sign in so that we can notify you about a reply

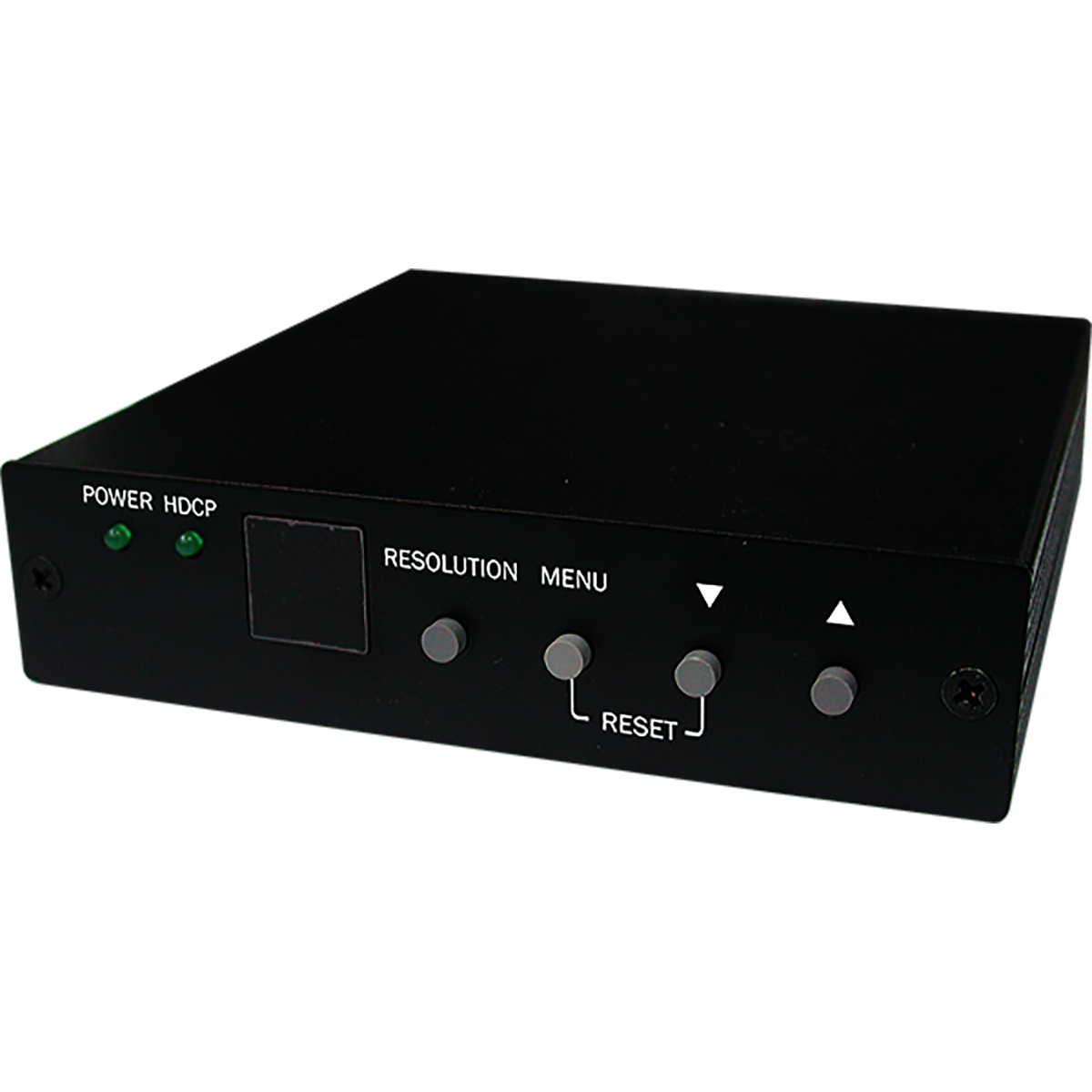

An integrators tool for producing HDMI signals for verifying and testing digital AV systems. This unit has 12 resolutions and 36 patterns which provide over a hundred different combinations of test scenarios. It also supports HDCP and EDID analysis, along with the ability to generate sinewave audio up to LPCM 7.1CH.
Features
- HDMI v1.2, HDCP1.1 and DVI1.0 compliant
- HDMI Frequency Bandwidth: 1.65Gbps (single link)
- Output PC resolutions: VGA60 / SVGA60 / XGA60 / SXGA60 / UXGA60 / WUXGA60
- Output HD resolutions: 576p50 /480p60 / 720p50 / 720p60 / 1080p50 / 1080p60
- Output Signal: DVI / HDMI / Auto Detect
- Patterns: 8 Groups with 36 patterns
- Audio Source support Internal 1 kHz Sinewave 48 kHz sampling rate and External optical input
- HDMI Audio Outputs support From internal 1 kHz Sinwave and converted to 8 channels LPCM, 48 KHz sampling rate or from external optical input
- EDID Supports: VESA EDID v1.3 and EIA/CEA 861 Version 3
Brand:
Cypress Technology
Specifications
Product Type:
Pattern Generator
Special Features:
Supports HDCP Signal Verification Pattern, OSD Menu Operation, Remote Control
Applications:
Checking, Aligning Dynamic, Corner Convergence of TVS, Monitors
Performance
Display Resolution:
1080pixels
Frequency Rating:
48kHz
Inputs and Ports
Video Input Type:
1xTOSLINK (1xOPTICAL 2 Channel LPCM)
Digital Audio Input Type:
1xTOSLINK
Digital Audio Output Type:
1xHDMI
Digital Video Output Type:
1xHDMI (1xUncompressed AV and Data)
Power
Current Rating:
2.6A
Dimensions
Width:
12.5cm
Depth:
12.5cm
Height:
3cm
Weight:
334g
Other
Voltage Rating:
5V
Standards Met:
VESA EDID v1.3, EIA/CEA 861 Version 3
