860 18G 4K HDR Signal Generator & Analyzer
Please sign in so that we can notify you about a reply
860 HDMI 18G (6G per graphic channel) 4K HDR Signal Generator & Analyzer is an advanced and handy tool for generating, testing and verifying the signal path within your (up to) 4K@60Hz (4:4:4) HDMI/HDCP 2.2 ecosystem. With 88 built−in resolutions, 55 test patterns and over a dozen types of AV analysis functions, this unit provides an enormous range of testing options. HDMI data packet, EDID and HDCP analysis is supported along with EDID upload and emulation. Additionally the Status and Control Data Channel (SCDC) can be monitored, enabling HDMI 18G signal detection and analysis. Up to 8 channels of LPCM audio test tones can be generated with a wide range of frequencies and audio levels.
Features
- Max. Resolution - 4K@60Hz (4:4:4).
- HDMI Support - HDR10 (on input), xvYCC color (on input), Dolby TureHD/DTS–HD Master Audio (by–pass), Dolby Vision (on input) as specified in HDMI 2.0.
- Standards Compliance - DVI 1.0 and HDCP 1.4/2.2.
- Data Path Analysis - Source and sink up to 18G HDMI signals (6G per graphic channel).
- Analysis of HDMI Data Packet.
- Analysis & Control of HDCP v1.4 and v2.2.
- Analysis & Emulation of EDID Data - Including SCDC.
- Analysis of Input Audio Signals.
- HDR Bypass & Analysis Support.
- HDMI Timing Generation - Up to 4096×2160 @60Hz (4:4:4), 8–bit.
- Heavy–duty, waterproof, padded protective case included.
- VGA Output Supports - 350p, 480p, 576p, 720p, 1080i, 1080p, 640×480, 800×600, 1024×768, 1280×1024, 1366×768, 1400×1050, 1440×900, 1600×900 (Reduced Blanking;RB), 1600×1200, 1680×1050, 1920×1200 (RB), 2048×1080p.
- HDMI Output Supports - 350p, 480p, 576p, 720p, 1080i, 1080p, 640×480, 800×600, 1024×768, 1280×1024, 1366×768, 1400×1050, 1440×900, 1600×900 (RB), 1600×1200, 1680×1050, 1920×1200 (RB), 3G4K, 6G4K.
- Custom User Test Patterns - 640×480 & 1920×1080.
- External Stereo Audio Input & Output.
- LPCM Sinewave Audio Generation - Up to 8 channels.
- Control Options - Front–panel, RS–232, Telnet, and IR remote controls.
- OLED Display - With rapid updates of current status information.
- Detailed OSD - For settings and informational displays.
- USB Firmware & Pattern Update.
- Small & Portable Unit.
Brand:
Kramer
Part number:
60-860090
Product Type:
Signal Generator
Specifications
Display Type:
OLED
Maximum Operating Temperature:
+40°C
Analog Audio Input Impedance Rating:
20kΩ
Special Features:
88 Built-in Resolutions, 55 Test Patterns, Over a Dozen Types of A/V Analysis Functions, Supports Resolutions Up to 4K@60Hz (4:4:4), HDR10, HDCP 2.2 and HDCP 1.4 Compliance, Heavy-Duty, Protective Case Included
Chassis Material:
Metal
Applications:
Installer/Integrator Multi-Function Test Tool, HDMI Source and Sink Testing, UHD System/SCDC Error Identification, Third-Party Equipment Setup, Source and Sink EDID Reading/Writing and Saving, HDCP Compliance Verification, Production Testing, R and D Desi
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Remote Control (LR-40), Power Supply, Protective Case
Performance
Resolution:
4K
Frequency Rating:
60Hz
Inputs and Ports
Video Input Type:

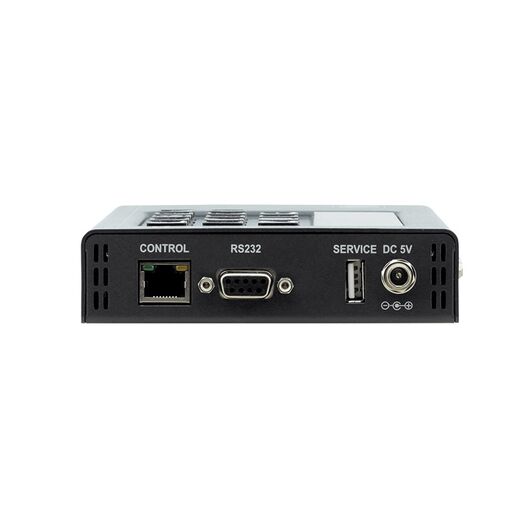

1xHDMI, 1xUnbalanced Stereo Audio (2VRMS Max. 20kΩ) on a 3.5mm Jack, 1xRS-232 on a 9-Pin D-Sub Connector, 1xEthernet on an RJ45 Connector, 1xUSB Connector
Power
Current Rating:
1.6A
Dimensions
Width:
16.5cm
Depth:
13.2cm
Height:
3cm
Weight:
0.8kg
Other
Voltage Rating:
5.2V
Standards Met:
CE, ISO 9001, ISO 14001, OHSAS 18001
