810 Composite Video & s–Video Color Bar/Audio Tone Generator
Please sign in so that we can notify you about a reply

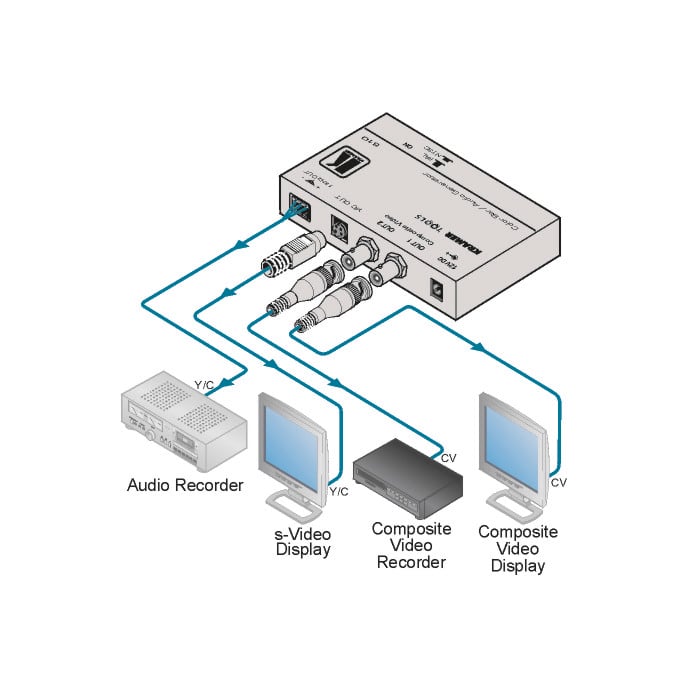

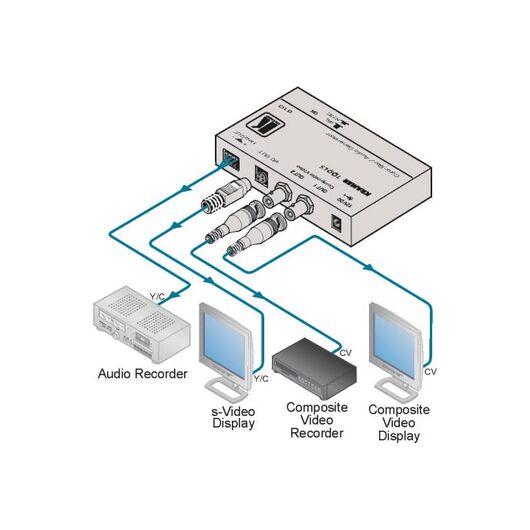

The 810 is a high-performance composite video and s-Video (Y/C) color bar and 1kHz audio tone generator. It outputs two composite video and one s-Video color bar signal in either NTSC or PAL, and a 1kHz audio tone simultaneously.
Features
- Multi–Standard — PAL or NTSC output (selectable).
Brand:
Kramer
Part number:
90-081090
Product Type:
Bar/Audio Tone Generator
Specifications
Maximum Operating Temperature:
+40°C
Analog Audio Input Impedance Rating:
75Ω
Special Features:
PAL or NTSC Output, Video Output-Color bar
Applications:
Testing and Alignment of Video Equipment, Monitors, Recorders, Projectors
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply, Mounting Bracket
Performance
Frequency Rating:
1kHz
Inputs and Ports
Digital Video Output Type:
2 75% Colour Bar on BNC Connector, 1Vp-p/75Ω, 1 75% S-Video Colour Bar on a 4-Pin Connector, 1Vp-p/75Ω (Y), 0.3Vp-p/75Ω (C)
Power
Current Rating:
230mA
Dimensions
Width:
12.cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.2kg
Other
Voltage Rating:
12V DC
Standards Met:
CE, ISO 9001 Certified
