CPLUS-VHHT1 HDMI Enhancer

Write a review
CPLUS-VHHT1
Cypress Technology
Out of stock
Log in to see price Add to wish list

This 4K UHD HDMI to HDMI repeater with EDID Management is designed to enhance and stabilise high-bandwidth HDMI signals for cleaner transmission while also providing the utility of customised EDIDs. Supports video resolution up to 4K@60Hz (4:4:4). The built in EDID management support allows the user to easily switch between three distinct EDIDs (Internal, External, and User) with the use of an optional PC software. This unit is designed to enhance and stabilise high-bandwidth HDMI signals for cleaner transmission while also providing the utility of customised EDIDs. The built in EDID management support allows the user to easily switch between three distinct EDIDs (Internal, External, and User). With the use of the optional PC software it is possible to create, edit, upload or download the customised User EDID. The unit’s included hot key and simple LED design allows the user to quickly switch between different configurations while viewing EDID status information.

Features
  • HDMI input and output with 18Gbps (600MHz) 4K UHD support
  • DVI 1.0 compliant with the use of an HDMI-DVI adaptor
  • HDCP 1.4 and 2.2 compliant
  • Supports HD resolutions up to 3840×2160@60 Hz (4:4:4, 8-bit) & 4096×2160@60 Hz (4:4:4, 8-bit)
  • Supports 48-bit Deep Color up to 1080p@60Hz and 36-bit Deep Color up to 4k@60Hz (YUV 4:2:0)
  • Supports pass-through of LPCM 7.1, Bitstream and HD Bitstream audio formats
  • EDID selectable between internal, external and user’s custom EDID
  • PC based EDID management tool support via the Micro-USB port

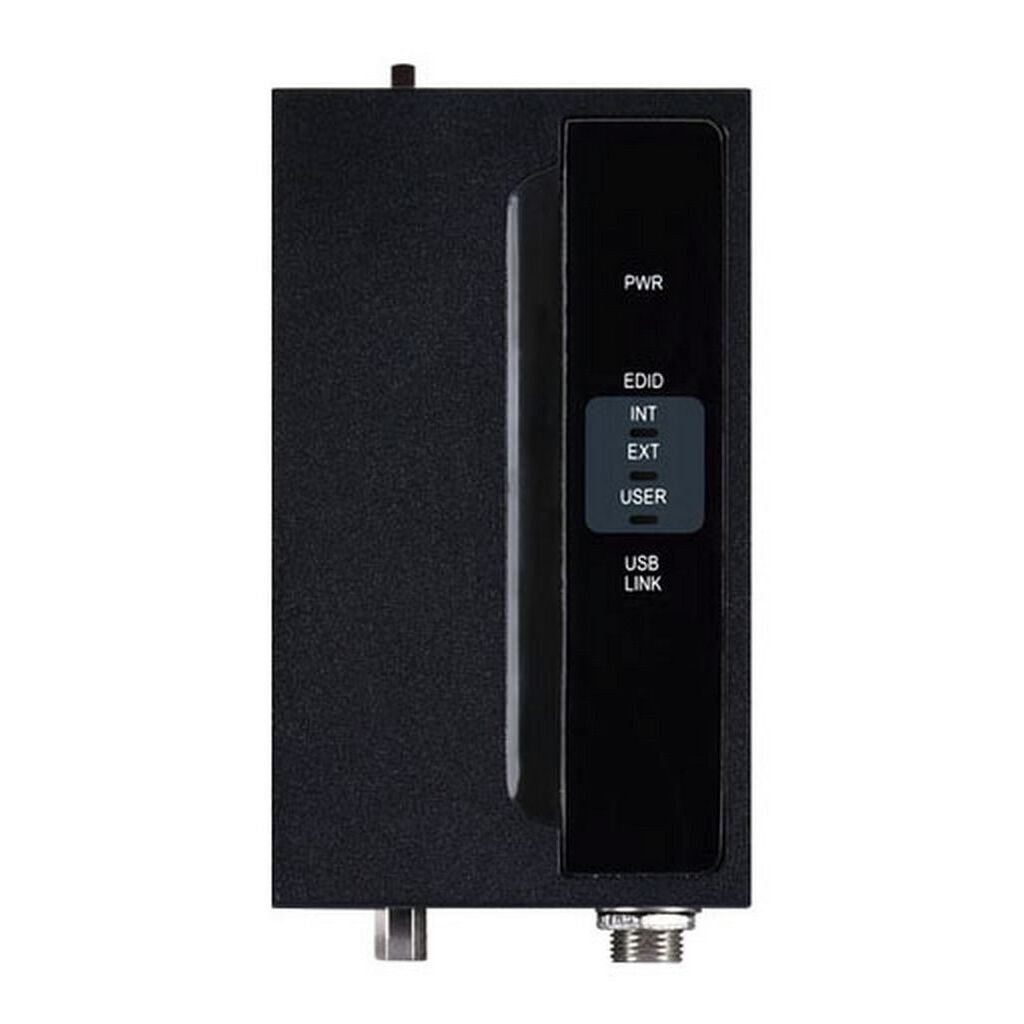

  • LED display providing an easy view of the current EDID and unit status
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Enhancer
Cable Length:
15m (1080p@60Hz, 8bits), 10m (1080p@60Hz, 12bits), 5m (4K@60Hz, 4:2:0, 8bits), 5m (4K@60Hz, 4:4:4, 8bits)
Maximum Operating Temperature:
40°C
Colour:
Black
Power Rating:
1.54W
Chassis Material:
Plastic
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xHDMI to HMDI Enhancer, 1x5V/2.6A DC Power Adaptor, 1xOperation Manual
Performance
Resolution:
480i@60Hz, 4K@60Hz (4:4:4, 8bits), VGA@60Hz, WUXGA@60Hz (RB)
HDCP Compliance Type:
1.4, 2.2
Bandwidth:
18Gbps
Maximum Input Resolution:
4096x2160Pixel@60Hz
Maximum Output Resolution:
4096x2160Pixel@60Hz
Output Signal Type:
4096x2160Pixel@60Hz 8bits YUV 4:4:4

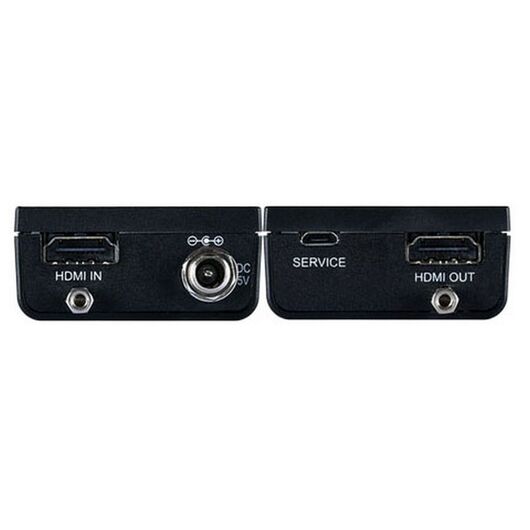

Inputs and Ports
Input Port Type:
1×HDMI
Output Port Type:
1xHDMI
I/O Interface Type:
1xUSB (Micro-B)
Input Signal Type:
4096x2160p@60Hz 8bits YUV 4:4:4
Power
Current Rating:
2.6A
ESD Protection Rating:
±12kV (Air-Gap Discharge), ±8kV (Contact Discharge)
Dimensions
Width:
5.2cm
Depth:
9.7cm
Height:
2.2cm
Weight:
60g
Other
Voltage Rating:
5V
Standards Met:
CE/FCC/UL Certified, US/EU Standards
