CPLUS-VHHI HDMI 4K UHD+ Enhancer with EDID Management
Please sign in so that we can notify you about a reply

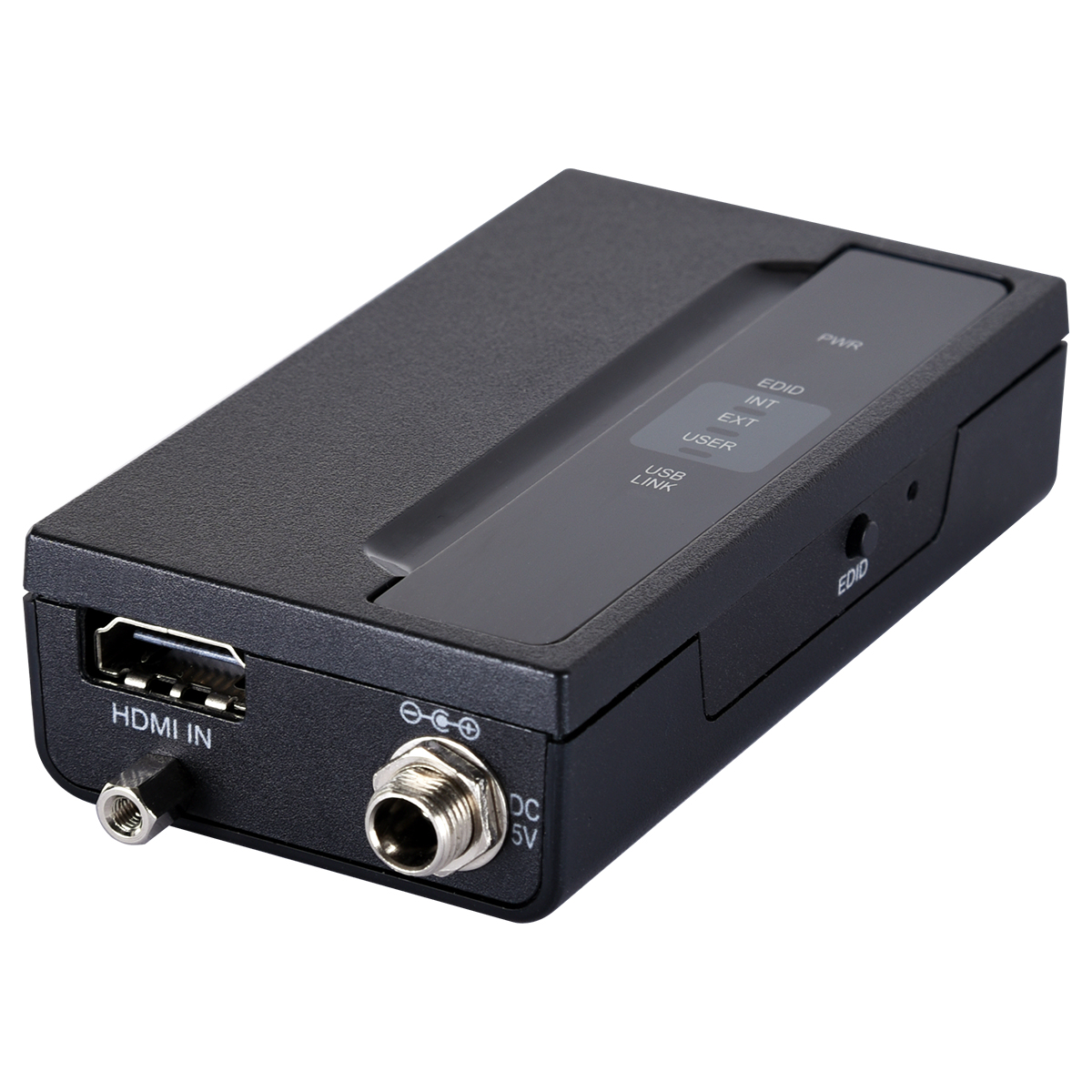

This 4K UHD HDMI to HDMI Enhancer with EDID Management is designed to enhance and stabilize high-bandwidth HDMI signals for cleaner transmission while also providing the utility of customized EDIDs. The built in EDID management support allows the user to easily switch between three distinct EDIDs (Internal, External, and User). With the use of the optional PC software it is possible to create, edit, upload or download the customized User EDID. The unit’s included hot key and simple LED design allows the user to quickly switch between different confi gurations while viewing EDID status information.
Features
- Supports 48-bit Deep Color up to 1080p@60Hz and 36-bit Deep Color up to 4k@60Hz (YUV 4:2:0)
- Supports pass-through of LPCM 7.1, bitstream and HD bitstream audio formats
- EDID selectable between internal, external and user’s custom EDID
- PC based EDID management tool support via the Micro-USB port
- LED display providing an easy view of the current EDID and unit status
Brand:
Cypress Technology
Product Type:
HDMI Enhancer
Specifications
Cable Length:
1m 1080p@60Hz, 8bits), 10m (1080p@60Hz, 12bits), 5m (4K@60Hz, 4:2:0, 8bits), 5m (4K@60Hz, 4:4:4, 8bits)
Maximum Operating Temperature:
+40°C
Colour:
Black
Power Rating:
1.54W
Chassis Material:
Metal
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xHDMI to HMDI Enhancer, 1x5V/2.6A DC Power Adaptor, 1xOperation Manual
Performance
Resolution:
480i@60Hz, 4K@60Hz (4:4:4, 8bits), VGA@60Hz, WUXGA@60Hz (RB)
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.x
Bandwidth:
18Gbps
Maximum Input Resolution:
4096x2160pixels@60Hz
Maximum Output Resolution:
4096x2160pixels@60Hz
Output Signal Type:
4096x2160pixels@60Hz 8bits YUV 4:4:4
Inputs and Ports

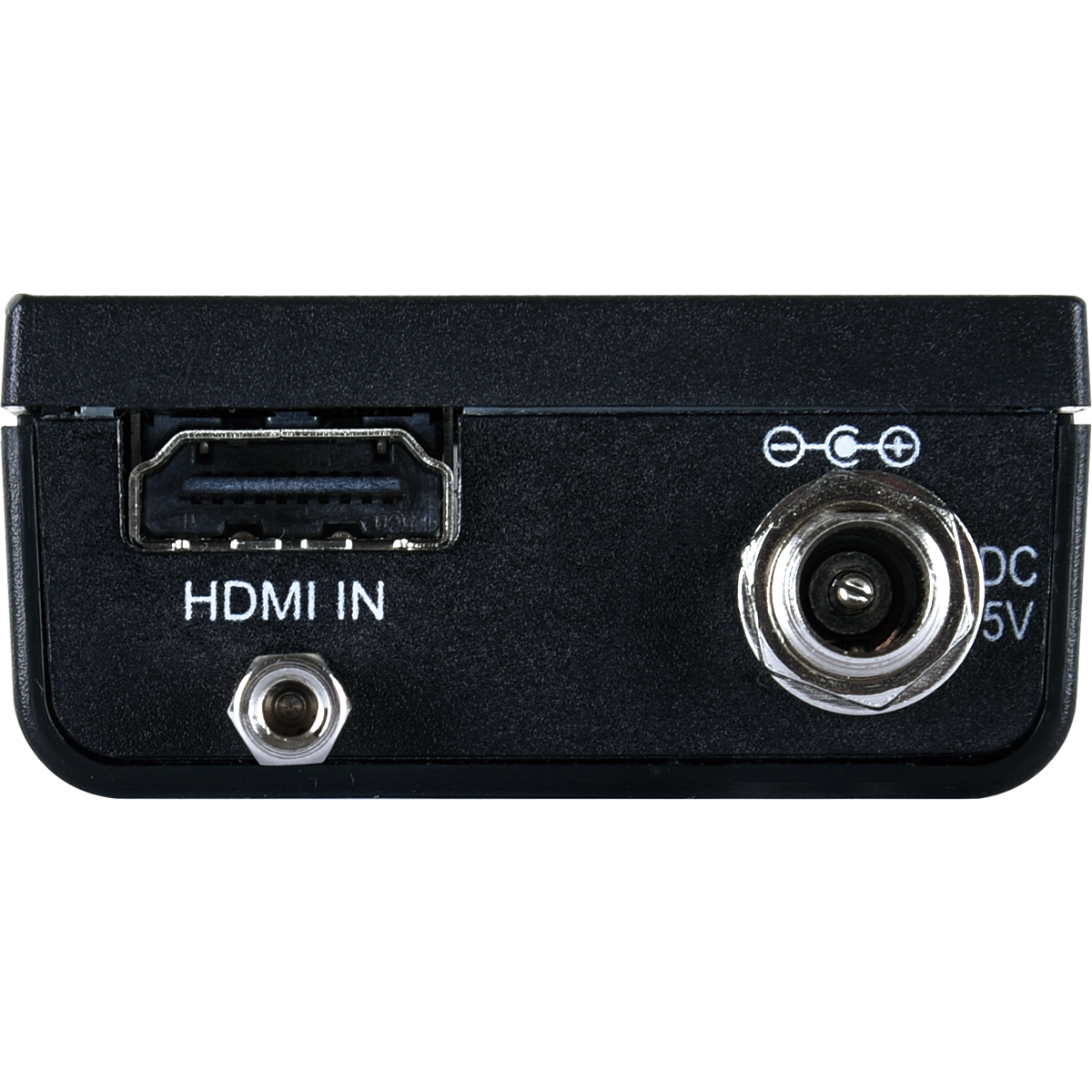

Input Port Type:
1xHDMI

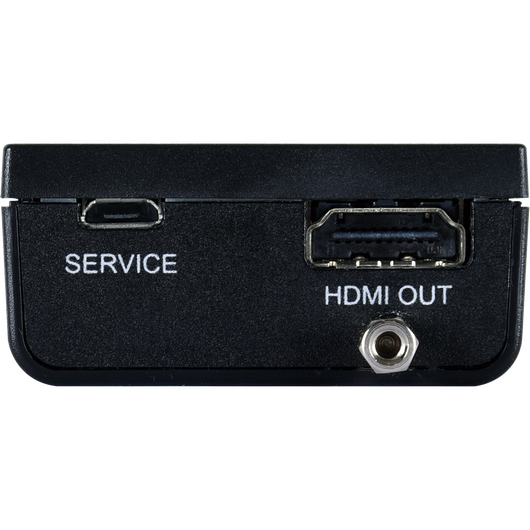

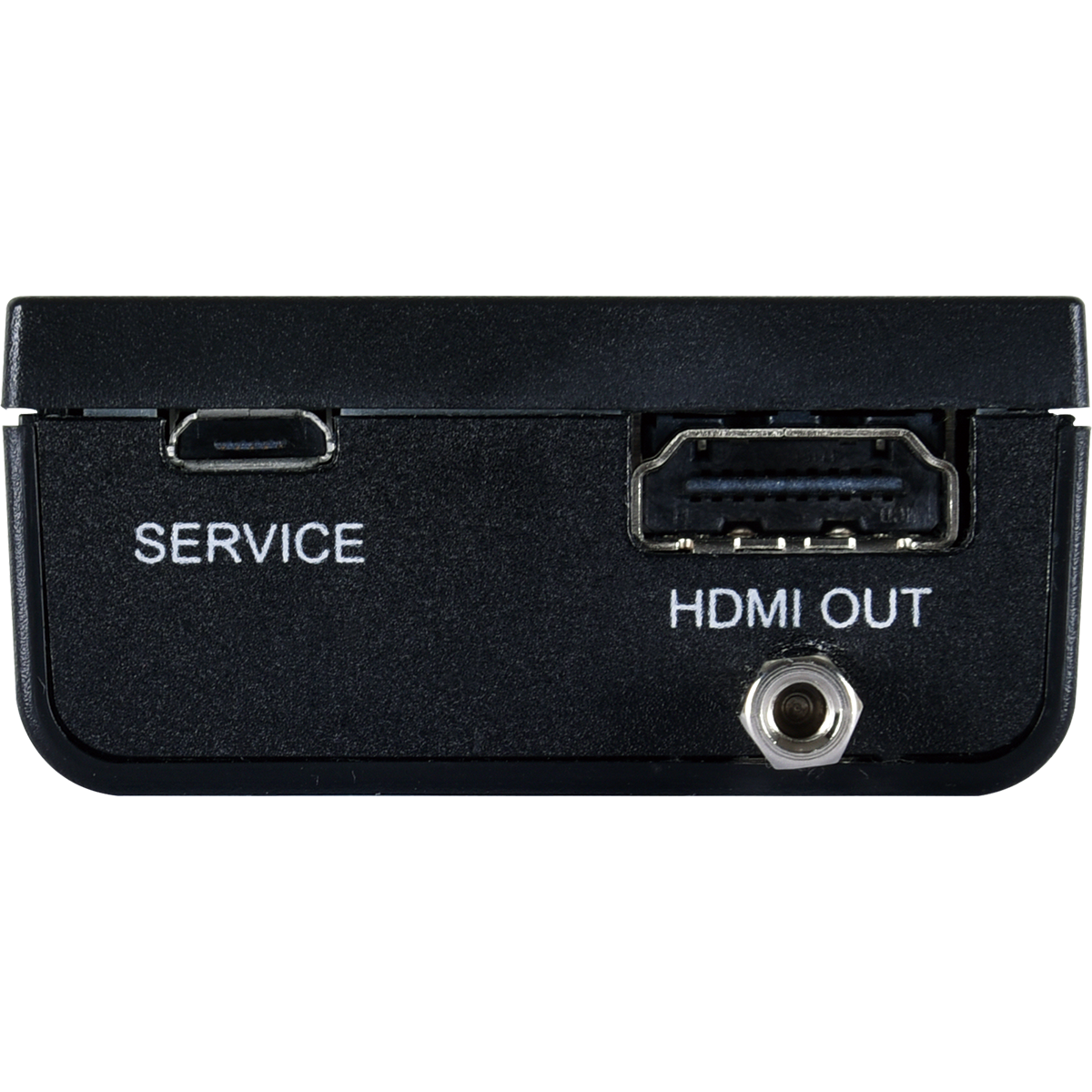

Output Port Type:
HDMI
I/O Interface Type:
1xUSB (Micro-B)
Input Signal Type:
4096x2160p@60Hz 8bits YUV 4:4:4
Power
Current Rating:
2.6A
ESD Protection Rating:
±12kV (Air-Gap Discharge), ±8kV (Contact Discharge)
Dimensions
Width:
5.2cm
Depth:
9.7cm
Height:
2.2cm
Weight:
60g
Other
Voltage Rating:
5V DC
Standards Met:
CE, FCC Compliant, UL Listed
