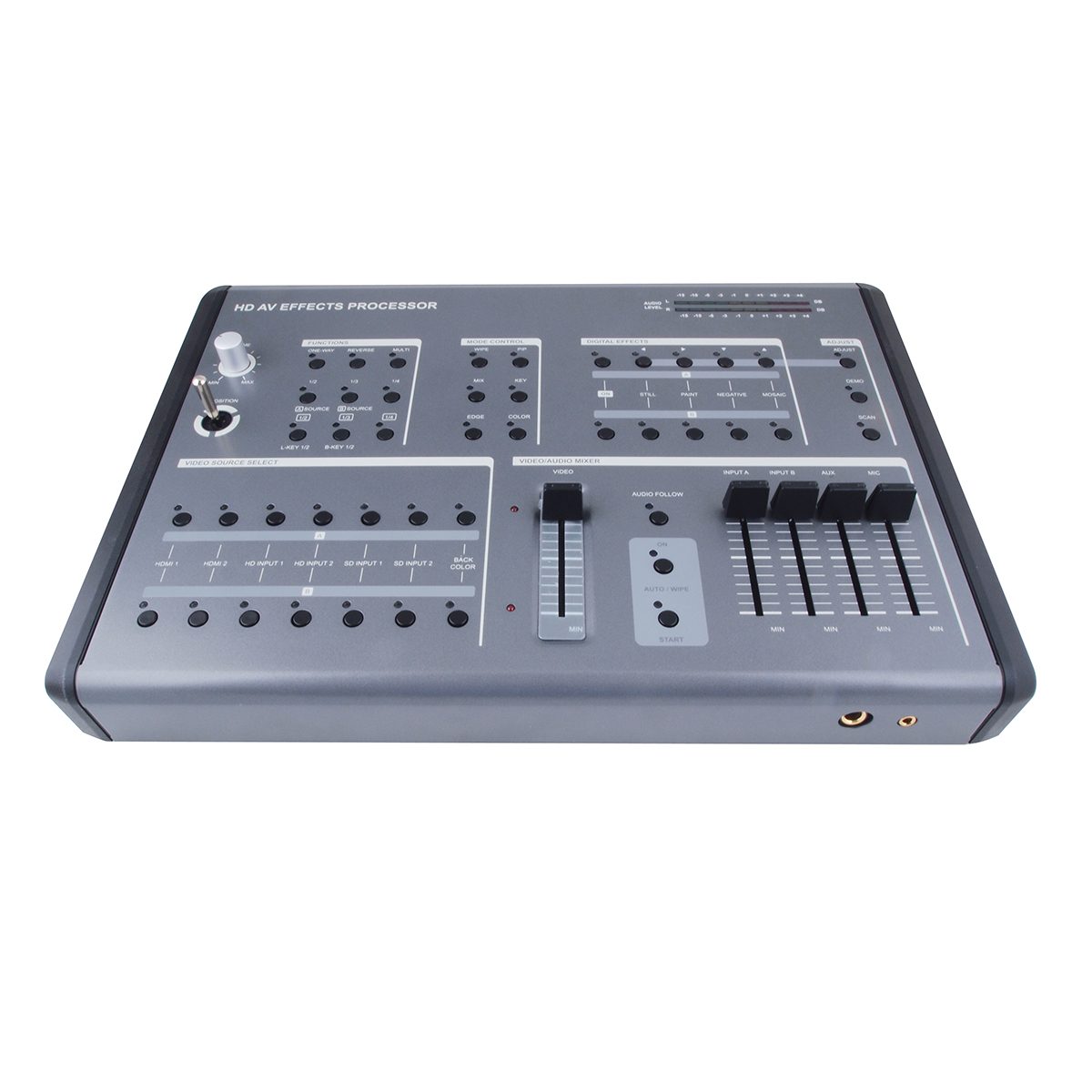

CMX-12 HD/SD Digital AV Mixer
Please sign in so that we can notify you about a reply
The CMX-12 is a high-quality Standard and High Defintion Digital Audio/Video Mixer. Each input BUS supports up to 6 inputs (2×HDMI, 2×Component (SD/HD), 2×S-Video and Composite video). Effects can be added such as wipes, fades, mixes and speacial digital effects. The CMX-12 can support HD or SD resolutions (480p, 576p, 720p 50/60, 1080i 50/60), most of the worlds video standards (NTSC, NTSC-4.43, PAL, PAL-M, PAN-N, SECAM) and HDMI, Component, S-Video or Composite video outputs, it also supports position adjustment and recording. The output resolution can automatically adjust to input resolution or be manually adjusted (please refer to the diagram above).
Features
- Selective size and position for digital effects area and PIP windows
- Automatic fade and wipe with speed preset control.Digital effects- Still,Mosaic,
- Paint and Negative.96 wipe patterns
- hroma key & Luminance key
- High Picture Quality
- 3×8 back color
- Joystick control for digital effect position
- Fade control for Video and Audio
- Video and Audio mixing
- 2× HDMI source inputs
- 2× Component (YPbPr) source inputs
- 2× Composite and S-Video source inputs
- 1× HDMI recording output
- 2× Component (YPbPr) recording outputs
- 1× Composite and S-Video recording outputs
- 1× Composite and S-Video preview outputs with On-screen Display
- Auxiliary audio input
- Microphone input and headphone output
- Picture in Picture control (3 window sizes)
- Each A/B BUS can adjust the Contrast/Brightness/Color/Hue/Detail and Aspect Ratio
- Supports Lip-Sync delay up to 170 ms
- Composite supports 3D comb filter and YC separation
- Motion and Edge Adaptive De-interlacing
Note: When the selected source input is not connected or has HDCP protection, only a backscreen will be displayed.
Brand:
Cypress Technology
Product Type:
HD/SD Digital AV Mixer
Specifications
Applications:
Amatuer/Professional Video and Audio Mixing
Inputs and Ports
Recording Output Type:
1xHDMI (1xUncompressed AV and Data), 6xBNC (2xYPBPR Component), 2xBNC (2xComposite), 2xMini-DIN-4 (2x S-Video)4xRCA (2xStereo (L/R)
Source Input:
2xHDMI (2xUncompressed AV and Data), 6xBNC (2xYPbPr Component), 2xBNC (2xComposite), 2xMini-DIN-4 (2xS-video), 8xRCA (4xStereo (L/R))
Power
Power Source Type:
12V
Dimensions
Width:
37cm
Depth:
26.7cm
Height:
10.3cm
Weight:
2000g
