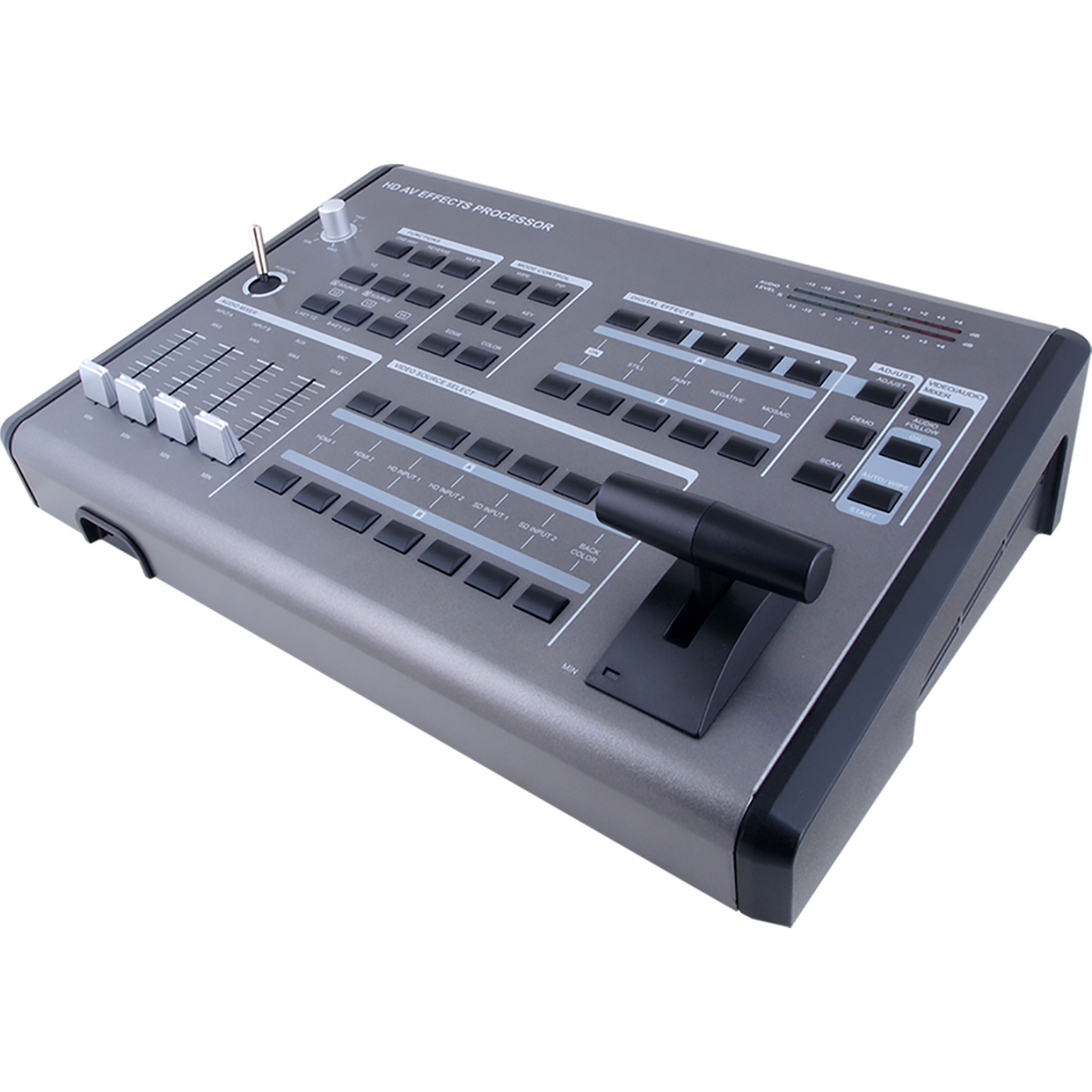

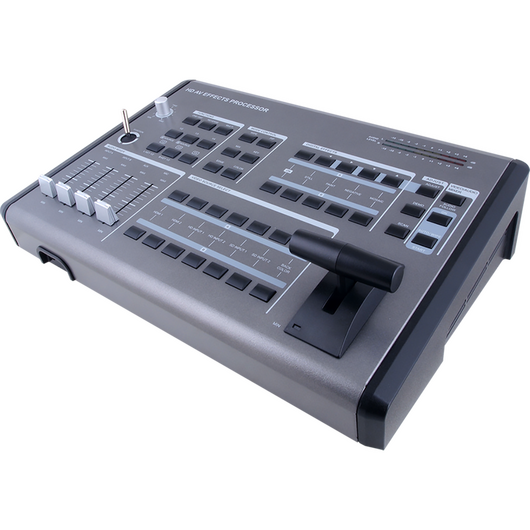

CMX-112 HD/SD Digital AV Mixer
Please sign in so that we can notify you about a reply
This High Definition HD/SD digital A/V Mixer has two input BUSES, each with six inputs (2 x HDMITM’s, 2 x Components and 2 x S-Video/Composite video) and also a Background Color feature for greater efficiency. The device has 1 x HDMI, 2 x Components, 2 x S-Video.
Features
- Selective size and position for digital effects area and PIP windows
- Automatic fade and wipe with speed preset control
- Digital effects-Still, Mosaic, Paint, Negative
- 96 wipe patterns
- Chroma key & Luminance key
- High Picture Quality
- 3x8 back color
- Joystick control for digital effect position
- Fade control for Video and Audio
- Video and Audio mixing
- Two HDMI source inputs
- Two Component source inputs
- Two Composite and S-Video source inputs
- One HDMI recording output
- Two Component recording outputs
- One Composite and S-Video recording outputs
- One Composite and S-Video preview outputs (OSD)
- Auxiliary audio input
- Microphone input and headphone output
- Picture and Picture control. (3 window sizes)
- Each A/B BUS can adjust the Contrast/ Brightness/ Color/ HUE/ Detail & Aspect Ratio
- Supports Lip-Sync delay up to 170ms
- Composite supports 3D comb filter and YC separation
- Motion and Edge Adaptive De-interlacing
Note: When receiving content that has HDCP encryption there will be no video output, the
image will show with Blue screen.
Brand:
Cypress Technology
Product Type:
HD/SD Digital AV Mixer
Specifications
Wipe Patterns:
96
Effect Type:
Video, Still, Mosaic, Paint, Negative, Wipe, Mix, Fade, Picture-In-Picture, Chroma Key, Luminance Key
Power Rating:
15W
Performance
Signal-to-Noise Ratio:
Video, 48dB (Composite), 50dB (HDMI Component, Y/C) Audio, 60dB

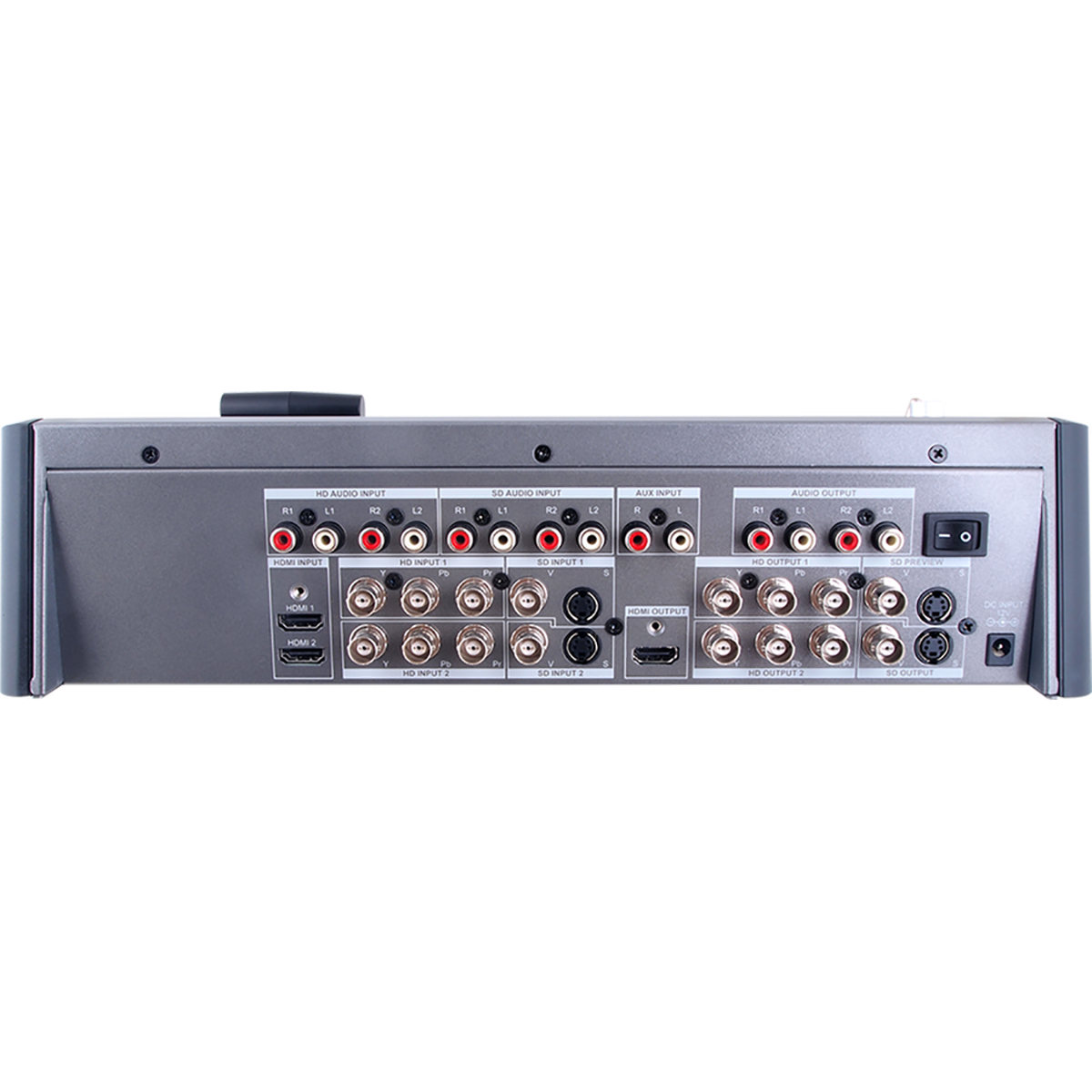

Inputs and Ports
Headphone Output Type:
1 (Headphone), -20dBv to 80dBv, 82 Unbalance, Phone-5 Jack
Recording Output Type:
1xHDMI Output:Digital Video YUV(480i/p,576i/p,720p50/60,1080i50/60), Component Output:2x, Analog Video YUV(480i/p,576i/p,720p50/60,1080i50/60), Y/C Output:1x, Y Signal: 1.0Vp-p 75Ω, Mini Din 4-Pin Connector C Signal: 0.3Vp-p 75Ω, Mini Din 4-Pin Connecto
External Sound Input:
MIC Input:x1 (MIC), -60dBv/600Ω, AUX Input:x1(AUX), -6dBs/20kΩ/Pin Jacks(L/R)
Source Input:
6x(Source 1/6), HDMI Input:x2, Digital Video YUV(480i/p,576i/p,720p50/60,1080i50/60, 1080p50/60), Component Input:x2, Analog Video YUV(480i/p,576i/p,720p50/60,1080i50/60), Y/C Input:x2, Y Signal: 1.0Vp-p 75Ω, Mini Din 4-Pin Connector C Signal: 0.3Vp-p 75
Preview Output (OSD) Type:
Y/C Output:x1, Y Signal: 1.0Vp-p 75Ω, Mini Din 4-Pin Connector C Signal: 0.3Vp-p 75Ω, Mini Din 4-Pin Connector, Video Output:x1, 1.0Vp-p 75Ω Composite Signal, Pin-Jack, (NTSC,NTSC4.43,PAL,PAL-M,PAL-N,SECAM)
Power
Power Source Type:
12V DC
Dimensions
Width:
26.7cm
Depth:
37cm
Height:
10.3cm
Weight:
2kg
